SKU BPA000332670 · Part No P5001210OG

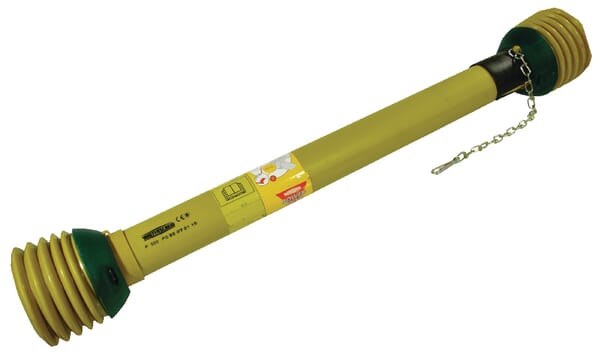

Walterscheid PTO shaft without yokes P500 L: 1210mm, P5001210OG

Name: PTO shaft without yokes P500 L: 1210mm, Walterscheid
Brand: Walterscheid
SKU: BPA000332670
Price: 857.84 GBP
Availability: InStock

Application range	Harvesters, Soil cultivating machinery, Wood shredders
Attachment machine side	n/a
Attachment tractor side	n/a
Benefits	Longer life time than standard PTO shaft, Low maintenance costs, Faster coupling
Consists of	PTO shaft with guard tube, Declaration of conformity, Instruction manual, Yokes not supplied
Cross joint bush diameter by machine side	36 mm
Cross joint bush diameter by tractor side	36 mm
Cross joint length by machine side	89 mm
Cross joint length by tractor side	89 mm
Details	Lubrication interval: 100 to 250 hours, Profiled guard tube prevents rotation, Sealed profile tube prevents penetration of dirt, Quickly removable shielding, No safety chain required on tractor side
Inner tube profile	S4LH
Length	1210 mm
Max static torque	6000 N·m
Original number equivalent	1113139
Outer tube profile	S5
Properties	Meet the requirements of EC 89/392 EEC, Comply with safety standard EN12965, CE marking awarded
Protection type	PG20
Size code	P500

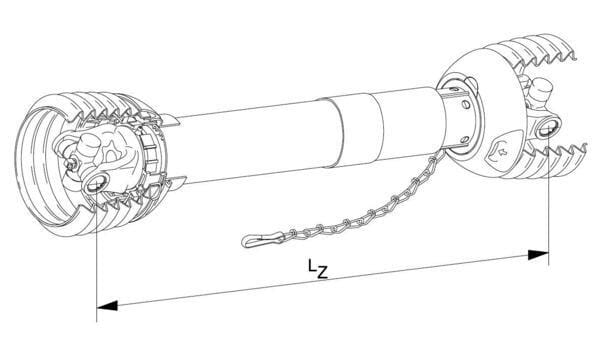

Technical info	Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at a working angle of 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection
Unit	Each

EAN	8435194017794
Unit of measure	EA
Weight	22800 g
Dimensions	1300 × 190 × 190 mm
Dangerous goods	No

Walterscheid PTO shaft without yokes P500 L: 1210mm, P5001210OG
