£8.58
excl. VAT
£10.30 incl. VAT
£10.30
incl. VAT
£8.58 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

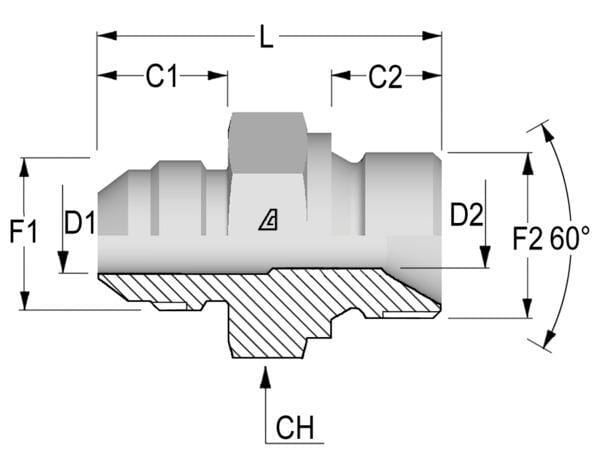

| C1Connection no 1 length | 23.13 mm |
|---|---|
| C1Connection no 1 thread length | 18.5 mm |
| CHConnection no 1 wrench size | 41.0 mm |
| Connection 1, thread diameter | 1-5/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection centre to insert distance | 53 mm |
| Inside diameter side 1 | 22.2 mm |
| Inside diameter side 2 | 21.4 mm |
| Max working pressure | 200 BAR |
| Pipe diameter | 1 Inch |
| Product details | BSP side has a stop for sealing with bonded seal / USIT seal, For pipes with 37° (74°) flanged edge, For hoses with UNF / JIC connection in accordance with SAE I 514., Connection thread on the 37° cone side is UNF in accordance with ANSI |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | 8716106968220 |
|---|---|
| Unit of measure | EA |
| Weight | 212 g |
| Dimensions | 57 × 48 × 48 mm |
| Dangerous goods | No |
