£528.67
excl. VAT
£634.40 incl. VAT
£634.40
incl. VAT
£528.67 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Center to center pressure side | 40 mm |
|---|---|
| Center to center suction side | 51 mm |

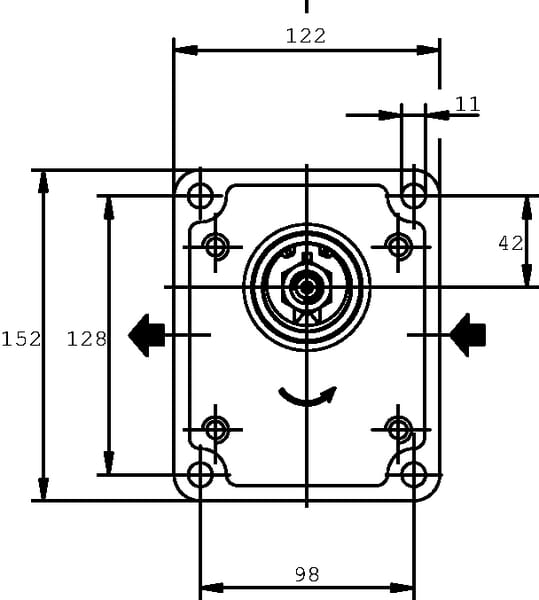

| Connection | European 4-hole flange |
| Displacement | 26.7 cm³/rev |
| Flange type norm | European |
| Length body | 133 mm |
| Length flange to center bore | 64.5 mm |
| Long description | The Casappa Polaris PLM series consists of compact and efficient hydraulic gear motors with a robust design, ideal for high-pressure applications. These gearmotors provide a long service life, low noise levels, and versatile mounting options, making them perfect for both industrial and mobile applications. |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |
| Max continous working pressure | 250 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

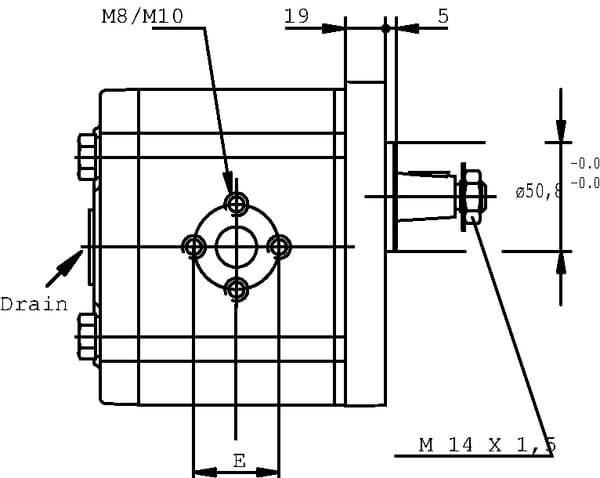

| Note | Always connect leakage oil line |
| P1 (bar) | 250 BAR |
| Port position | Side |
| Pressure flange | 2 G-12 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Product details | Only low axial and radial shaft loads possible, If the motor is equipped with a sprocket or a V-belt pulley, a preloaded bearing must be used, e.g., order number T324 |
| Pros | Compact en lichtgewicht, High efficiency, Long service life |
| Rotational speed min. | 350 r/min |
| Rotation max. | 3000 r/min |
| Sealing type | n/a |

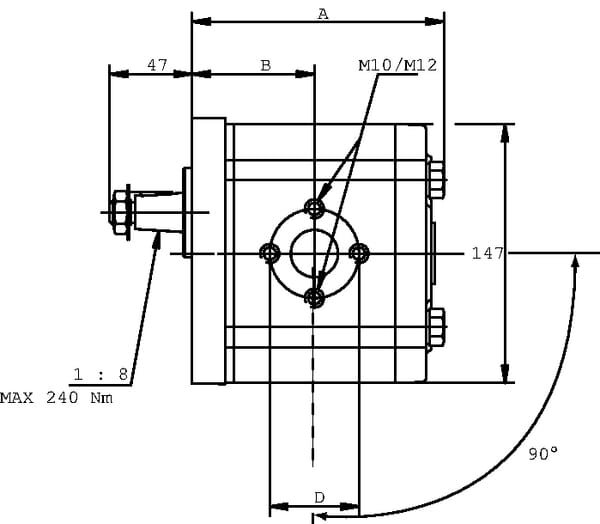

| Shaft type | Tapered shaft 1 : 8 |
| Stroke volume | 26,70 cm³/rev |
| Suction flange | 3 G-12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8795 g |
| Dimensions | 185 × 150 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340203

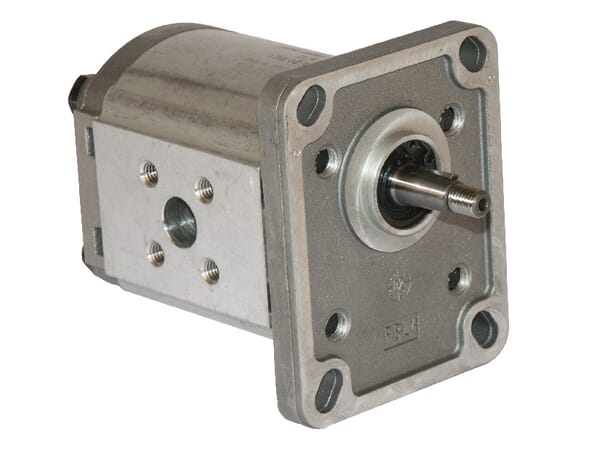

Casappa Pump PLP10.6,3 S0-81E1-LBB/BA- PLP106S081E1
£222.92 excl.
£267.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340233

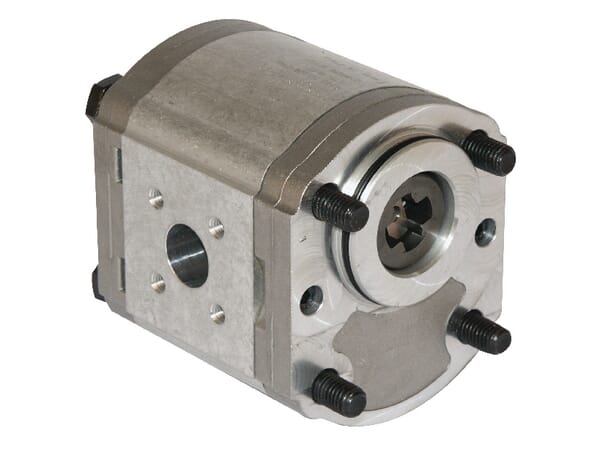

Casappa Pump PLP20.11,2S0-95B6-LBE/BC-N-EL PLP2011S095B6
