£315.30
excl. VAT
£378.36 incl. VAT
£378.36
incl. VAT
£315.30 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 48.2 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 11.23 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 102.2 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |

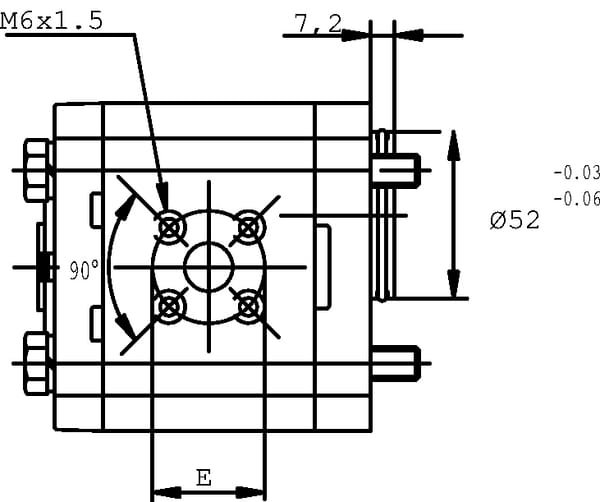

| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |

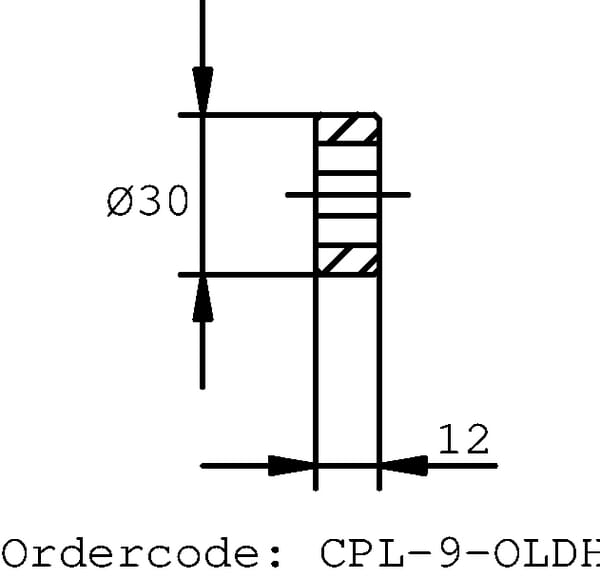

| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2511 g |
| Dimensions | 126 × 111 × 96 mm |
| Dangerous goods | No |
You might also like
BPA000340655

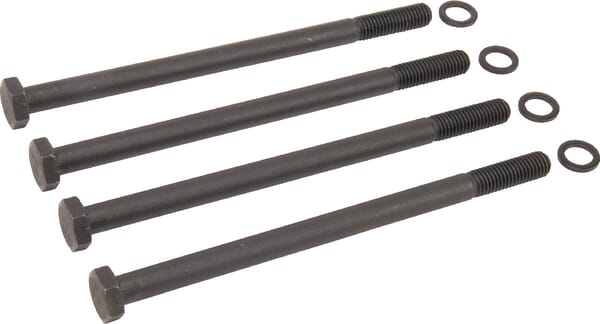

Casappa Bolt set M12X145 PLP930M12145
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340326
Casappa Pump PLP20.25S0-03S2-LEB/EA-N PLP2025S003S2
£366.38 excl.
£439.66 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279359

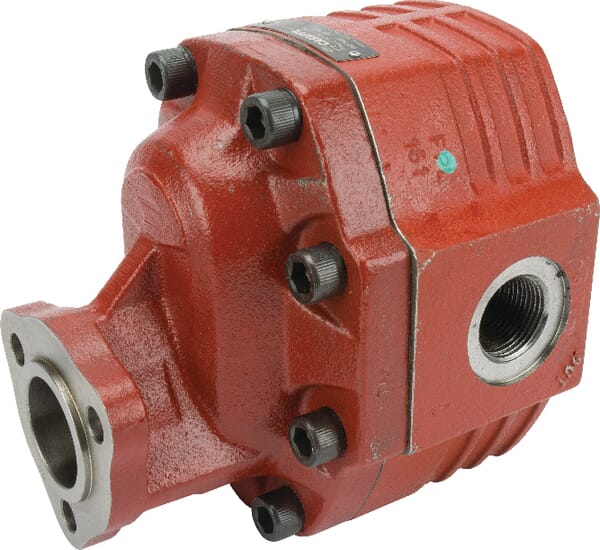

Casappa Pump FP40.151D0-19T1-LGH/GF-N FP40151D
