£614.63
excl. VAT
£737.56 incl. VAT
£737.56
incl. VAT
£614.63 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

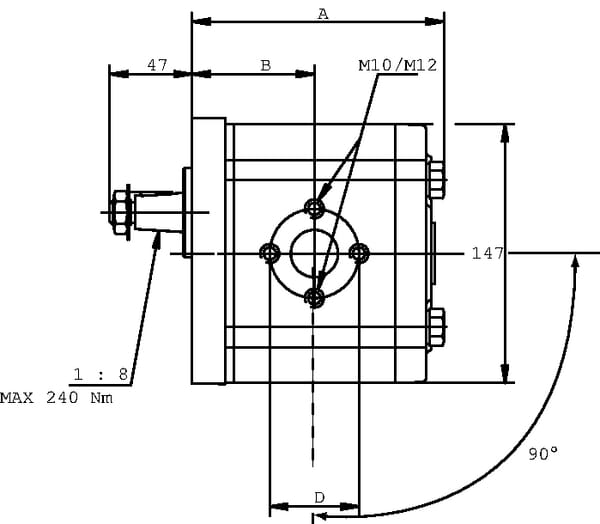

| Center to center pressure side | 40 mm |
|---|---|
| Center to center suction side | 51 mm |

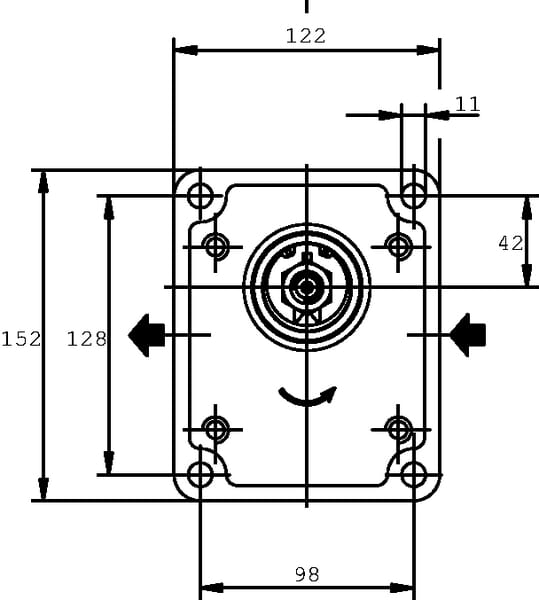

| Connection | European 4-hole flange |
| Length body | 138 mm |
| Length flange to center bore | 67 mm |
| Long description | The Casappa Polaris PLM series consists of compact and efficient hydraulic gear motors with a robust design, ideal for high-pressure applications. These gearmotors provide a long service life, low noise levels, and versatile mounting options, making them perfect for both industrial and mobile applications. |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |

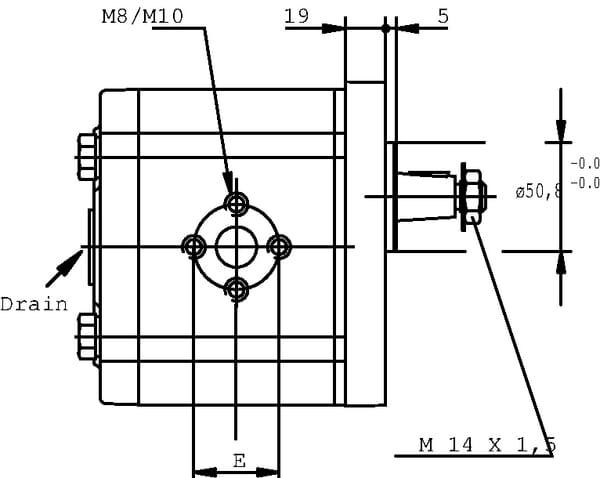

| Note | Always connect leakage oil line |
| P1 (bar) | 240 BAR |
| Pressure flange | 2 G-12 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Product details | Only low axial and radial shaft loads possible, If the motor is equipped with a sprocket or a V-belt pulley, a preloaded bearing must be used, e.g., order number T324 |
| Pros | Compact en lichtgewicht, High efficiency, Long service life |
| Rotational speed min. | 350 r/min |
| Rotation max. | 3000 r/min |
| Shaft type | Tapered shaft 1 : 8 |

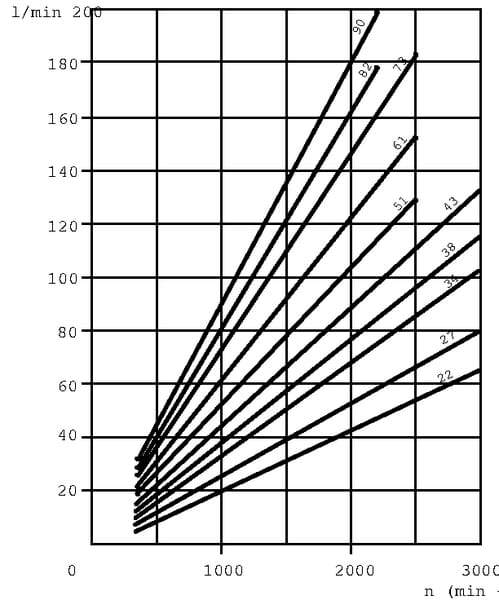

| Stroke volume | 34,55 cm³/rev |
| Suction flange | 3 G-12 |
| Unit | Each |
Logistics
| EAN | 8719607083690 |
|---|---|
| Unit of measure | EA |
| Weight | 9060 g |
| Dimensions | 185 × 155 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000340148
Casappa Thrust plate PLM20 PLM920RDH
£28.87 excl.
£34.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340538
Casappa Washer 7 UNI1751 Geomet 321/A PLP9207UNI751
£0.02 excl.
£0.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340624

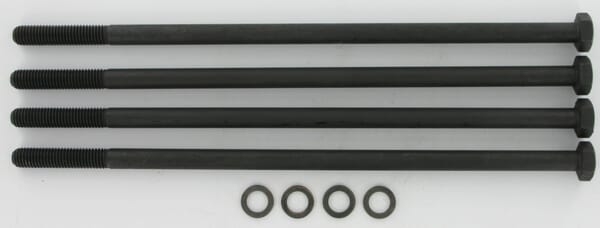

Casappa Tie bolts polaris 20 M10x270 PLP920M10270
