£856.06
excl. VAT
£1,027.27 incl. VAT
£1,027.27
incl. VAT
£856.06 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

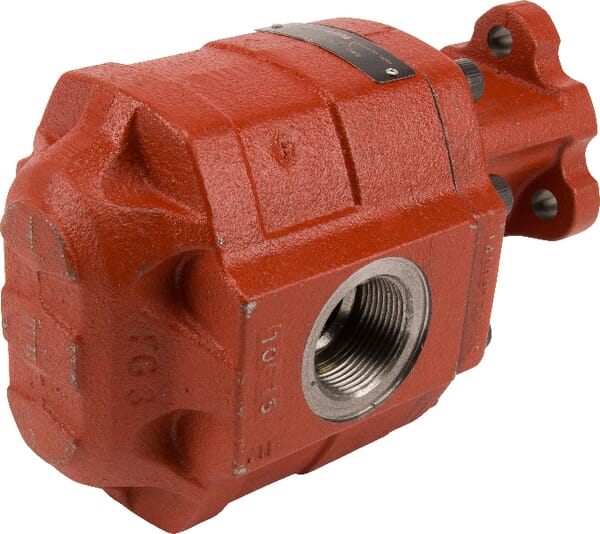

Product details

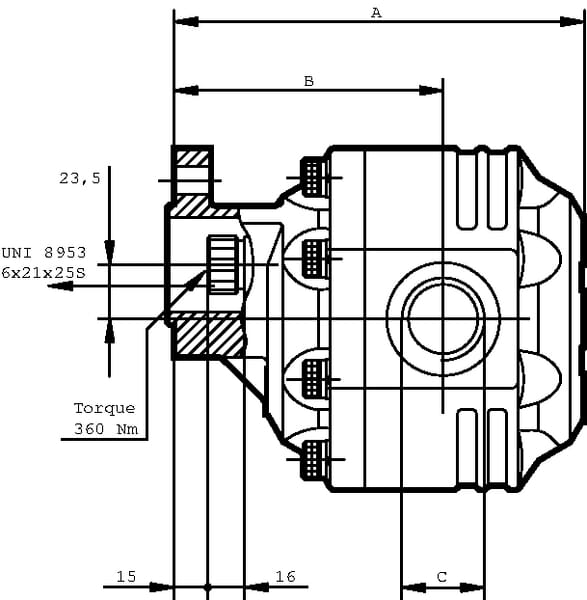

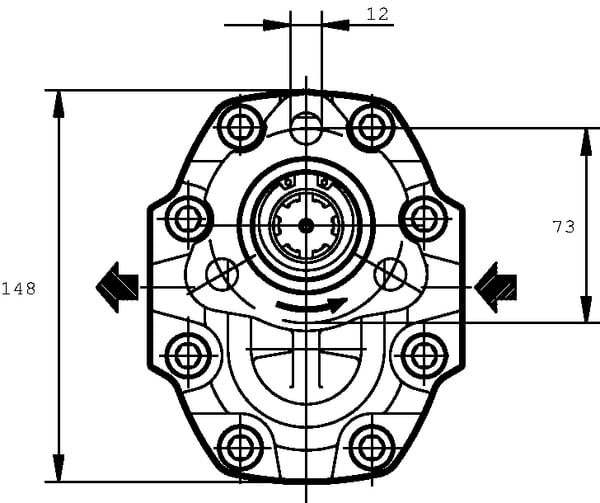

| AHousing length | 217 mm |
|---|---|
| BConnection port to flange distance | 136 mm |
| CMain port thread diameter | 1-1/4 Inch |

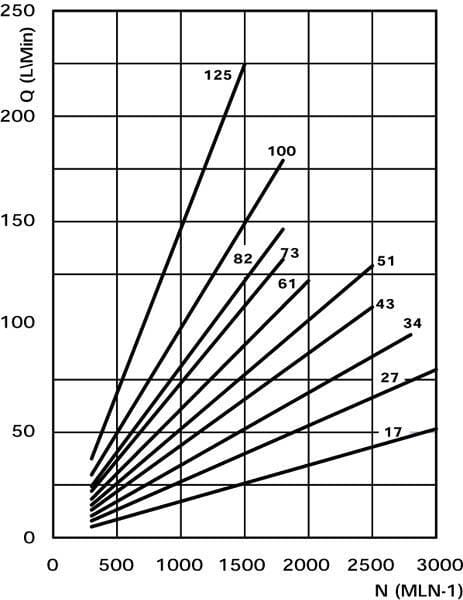

| Displacement | 100.52 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing material | Cast iron |
| Main port thread type | G |
| Max. continous working pressure | 180 BAR |
| Max intermittend working pressure | 200 BAR |
| Max pressure peak | 220 BAR |
| Max rotation speed | 1800 r/min |

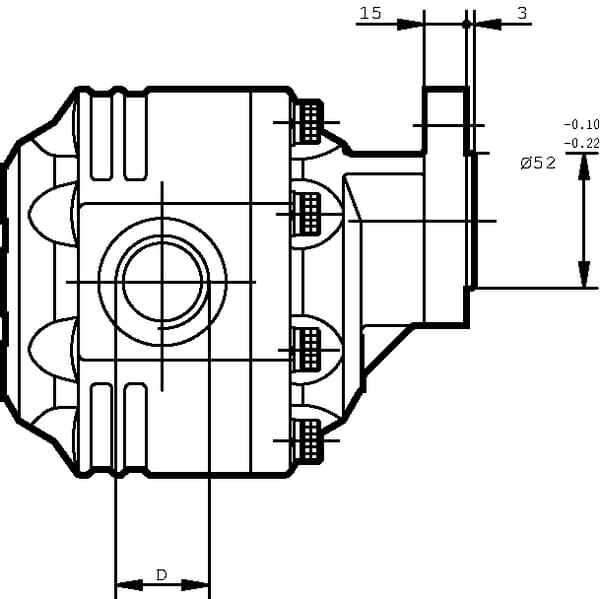

| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | High performance even at low speeds, Direct mounting on PTO shaft possible, Various port positions, Low noise, Customer-specific design possible, Adaptor for 1 3/8" 6-piece PTO profile: Support bearing SMLF or SFLF (plus hitch bushing), Adaptor for 9-piece ZF profile: Support bearing SR9 (plus hitch bushing), In combination with these support bearings, a torque of 300 Nm must not be exceeded, PTO shaft cantilever pump, Drives with ZF profile |
| Pros | Wide range of applications, Compact design |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
SF916A
Casappa Bush 16A, Formula SF916A
£23.63 excl.
£28.36 incl.
SFLF
Casappa Support bearing SFLF
£161.98 excl.
£194.38 incl.
SMLF
Casappa VORSATZL.+ WELLE F. SMLF
£165.46 excl.
£198.55 incl.
SR917A
Casappa Bush SR917A
£26.18 excl.
£31.42 incl.
SR9
Casappa Support bearing F-ZF SR9
£213.76 excl.
£256.51 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14040 g |
| Dimensions | 222 × 150 × 138 mm |
| Dangerous goods | No |
You might also like
BPA000231962
Casappa Shaft 13/8 TBV APL/H Pump APL9138
£87.66 excl.
£105.19 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301272
Casappa Hydraulic Pump KP3061D083E3
£570.71 excl.
£684.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301278
Casappa Tandem Pump KP40.133 D0-85E5- KP40133D085E5
£1,305.50 excl.
£1,566.60 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340194
Casappa Pump PLP10.4 S0-81E1-LBB/BA-N- PLP104S081E1
£235.49 excl.
£282.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340075
Casappa Cartridge PLC051-70Bar PLD10/2 PLD920VPE70
£85.47 excl.
£102.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000340558

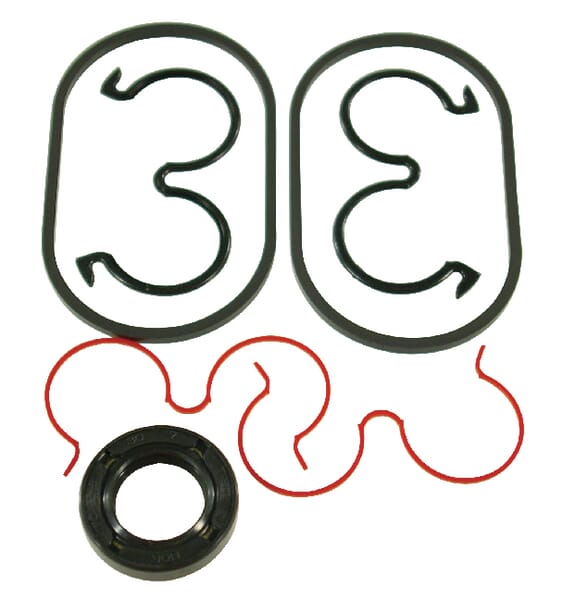

Casappa Seal kit PLP20-B1E2-8 PLP920B1E2AFD
£25.00 excl.
£30.00 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
Free shipping
BPA000400871

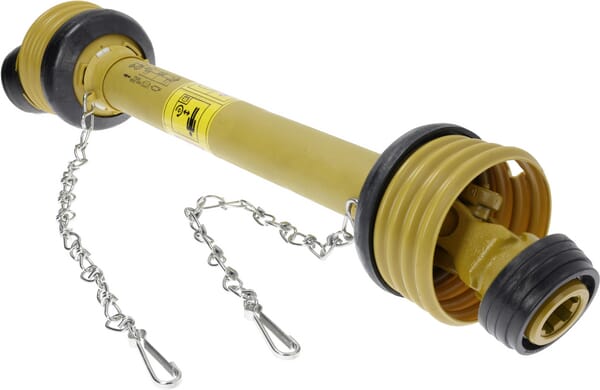

Walterscheid PTO shaft W2600 L: 1010mm, W26001010
£1,120.00 excl.
£1,344.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000292947
Kverneland Fillister Head Screw M8X60 KG00545861
£0.58 excl.
£0.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000309219
gopart Light board 12V 1-1.6m, 7.5m cable, 7-pin plug LA65001
£31.08 excl.
£37.30 incl.
In stock
Expected to ship on Monday 21 September
BPA000047214
SIP.SI Bearing - sliding GFM 65-70-50 150681603
£51.25 excl.
£61.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000215276
Kverneland Fan 750 rev/min with through A139158033
£3,349.04 excl.
£4,018.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000171502
Tyrolit Burr/mill-cutter WRC 12x25-S6x70 766930
£47.08 excl.
£56.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273289
Kramp V-belt 17.0x2464mm FGP800027
£35.22 excl.
£42.26 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000147932

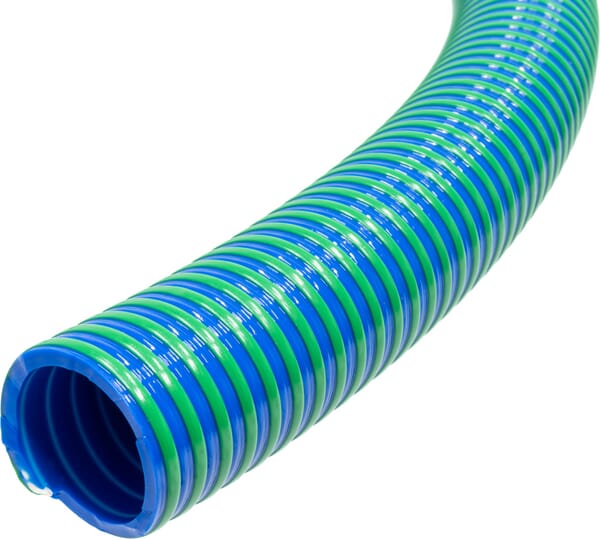

Kramp PVC hose blue/green 6" 15ft, 4.57m 60005457Z
£170.04 excl.
£204.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000330084
Kramp O-ring 5.3x2.4mm 70 shore 10x OR530240P010
£1.39 excl.
£1.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000035628

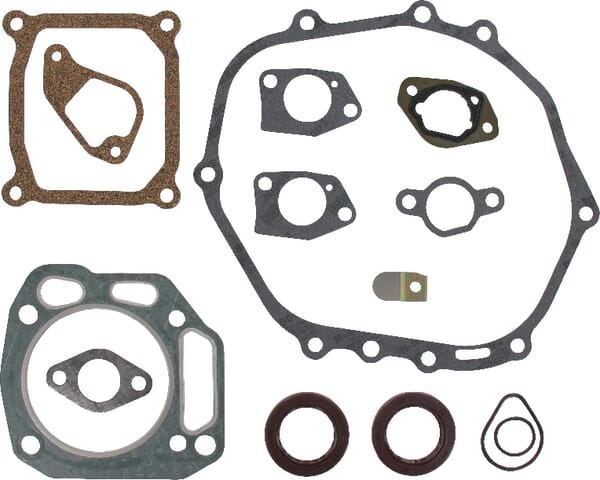

Stiga Gasket set WM 12 - WM 12.5 1185504380
