£1,120.00
excl. VAT
£1,344.00 incl. VAT
£1,344.00
incl. VAT
£1,120.00 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | Clamp yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Inner tube large outside diameter | 61 mm |
| Inner tube profile | S5H |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 7800 N·m |
| Original number equivalent | 1800073 |
| Outer tube large outside diameter | 71.5 mm |
| Outer tube profile | S6 |
| Outer tube wall thickness | 5 mm |
| Power 1000 rpm | 122 kW |
| Power 540 rpm | 79 kW |
| Profile tube shape | Star |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) Clamp cone, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | SD35 |
| Size code | W2600 |

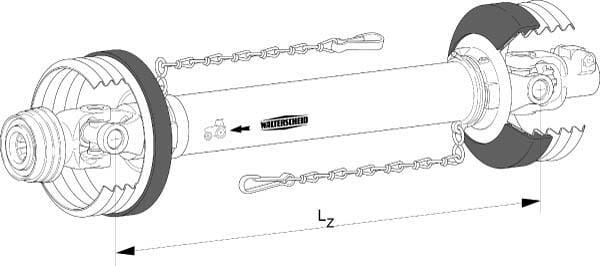

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 32700 g |
| Dimensions | 1435 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400130

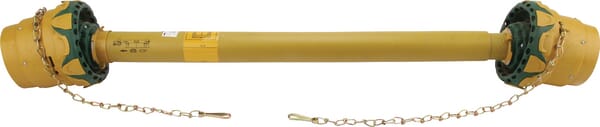

Walterscheid Wide angle PTO shaft without yokes WWZ 2280 L: 1210mm, WWZ22801210OG
£1,272.38 excl.
£1,526.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092760

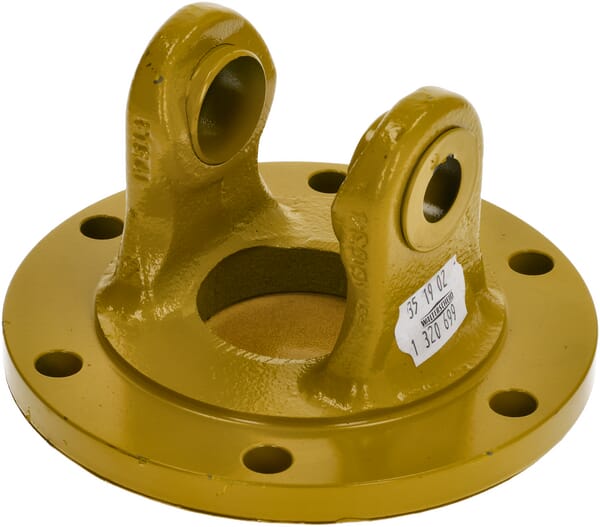

Walterscheid Yoke, Flange, W2400/P400/W400E 351902
£171.07 excl.
£205.28 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098450

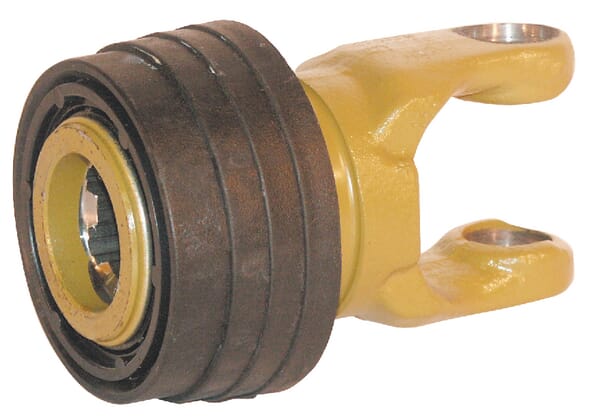

Walterscheid Yoke, Quick disconnect, 1-3/8"-21 spline, W2400/P400/W400E 358302
£214.76 excl.
£257.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000188728
Walterscheid Guard cone+rubber collar 827600
£91.46 excl.
£109.75 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400904
Walterscheid PTO shaft W300E L: 860mm, W300E860
£281.40 excl.
£337.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000076599

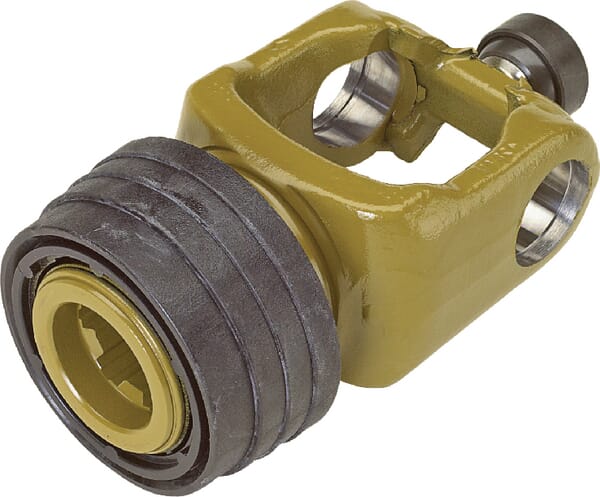

Walterscheid QSG P675 ZNP1 3/4-20H 268460
