£1,362.23
excl. VAT
£1,634.68 incl. VAT
£1,634.68
incl. VAT
£1,362.23 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

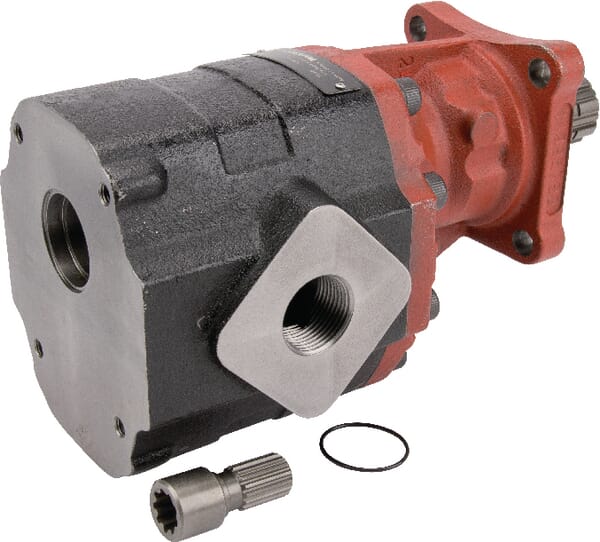

Product details

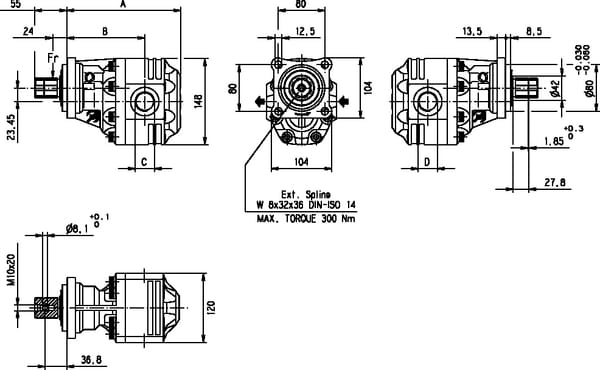

| AHousing length | 196.5 mm |
|---|---|
| BConnection port to flange distance | 134.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 1 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 61.26 cm³/rev |
| Extra info | This pump is the first part of a multiple pump, you can couple a second one behind it |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 220 BAR |
| Max intermittend working pressure | 240 BAR |
| Max pressure peak | 250 BAR |
| Max rotation speed | 2000 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340515
Casappa Drive shaft pump 20cc DII/DIIB PLP92020IIIFSAS
£134.60 excl.
£161.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340667
Casappa Tie bolts polaris 30 M12x340 PLP930M12320
£66.92 excl.
£80.30 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340247

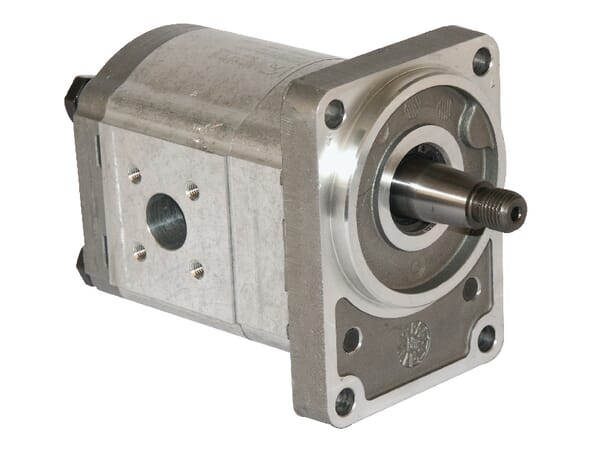

Casappa Pump PLP20.14-D3-55-B2 PLP2014D355B2
£478.03 excl.
£573.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340259
Casappa Pump PLP20.14S0-82E2-LEB/EA-N- PLP2014S082E2
£351.08 excl.
£421.30 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279391
Casappa Mounting kit KIT53C2 (FP40/FP30) FP94053C2B
£146.53 excl.
£175.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340394
Casappa Pump PLP20.8S0-54B2-LBE/BC-N-EL FS PLP208S054B2
£324.06 excl.
£388.87 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000049211

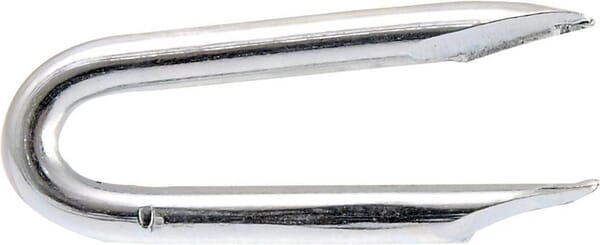

Unbranded Double point staple zinc plated, 2,5 x 25 mm 1545182525
