£988.20
excl. VAT
£1,185.84 incl. VAT
£1,185.84
incl. VAT
£988.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Wide range of applications, Compact design |
|---|---|
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 63 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | Z0 |
| Flange type norm | ISO |
| Housing material | Cast iron |
| Max. continous working pressure | 290 BAR |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 80 mm |
| Mounting holes vertical distance | 80 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 4 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 36 mm |
| Shaft number of teeth | 8 |
| Shaft type | Splined 8T |
| Shaft type code | 16 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19772 g |
| Dimensions | 290 × 190 × 15 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000358565

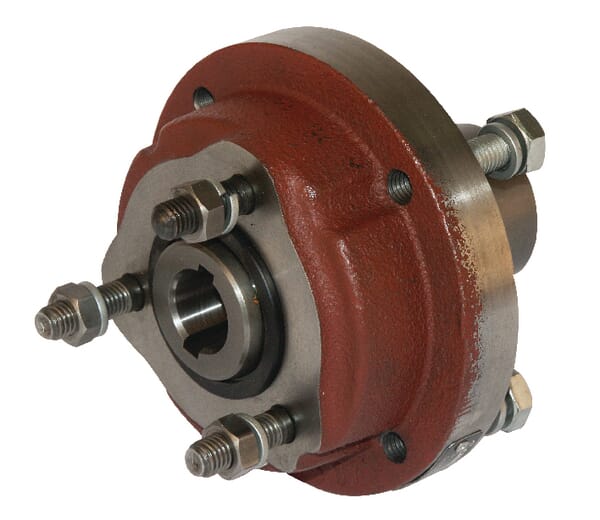

Casappa Support bearing SFLAB
£154.17 excl.
£185.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340429
Casappa Pump PLP30.38S0-83E3-LED/EB-N-FS PLP3038S083E3
£576.79 excl.
£692.15 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340294
Casappa Pump PLP20.20D0-54B2-LBE/BC-N-EL FS PLP2020D054B2
£369.00 excl.
£442.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301058

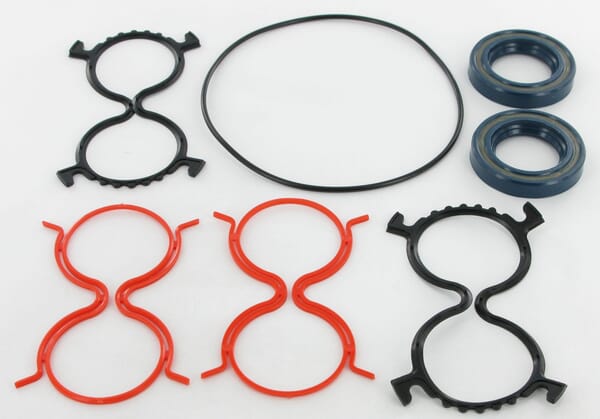

Casappa Seal kit KM.30-83E3-L-C16 KM93086E3AFD
£35.77 excl.
£42.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301037
Casappa Motor KM 30.61 RO-84E4-LEF/ED KM3061R84E4
£1,033.02 excl.
£1,239.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340039
Casappa Mid inlet section CI-PLD10 for 5 Sections PLD910CI
£124.10 excl.
£148.92 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000133958
Non Original Loader tine, cranked: 32mm double T section 36x880mm, pointed tip with M22x1.5mm nut, red 5192FT88N
£18.54 excl.
£22.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209246
Kramp Hexagon locknut DIN985 UNF 3/8" steel zinc-plated |8| 98538UNF
£0.28 excl.
£0.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000094449
Kramp Oil seal 35x42x4mm type:CD DIN 3760 1x 35424CDP001
£1.63 excl.
£1.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340611

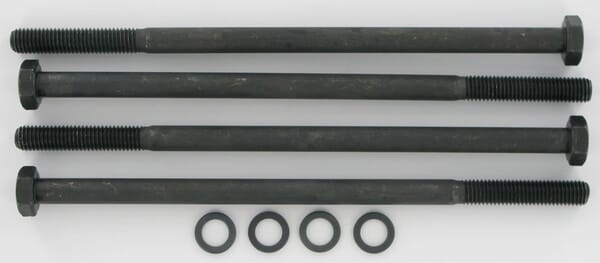

Casappa Tie bolts polaris 20 M10x210 PLP920M10210
