£340.66
excl. VAT
£408.79 incl. VAT
£408.79
incl. VAT
£340.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

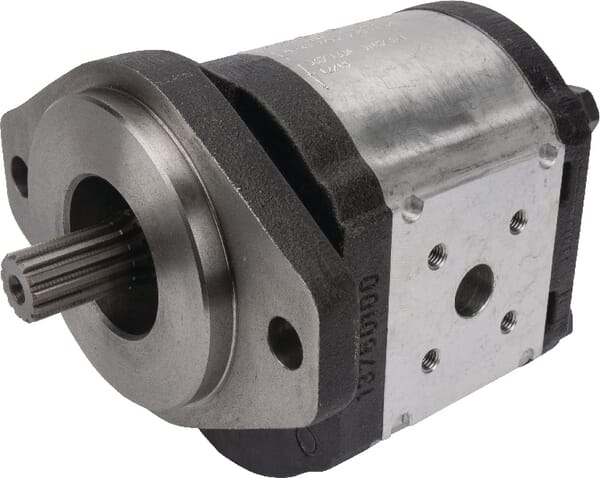

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

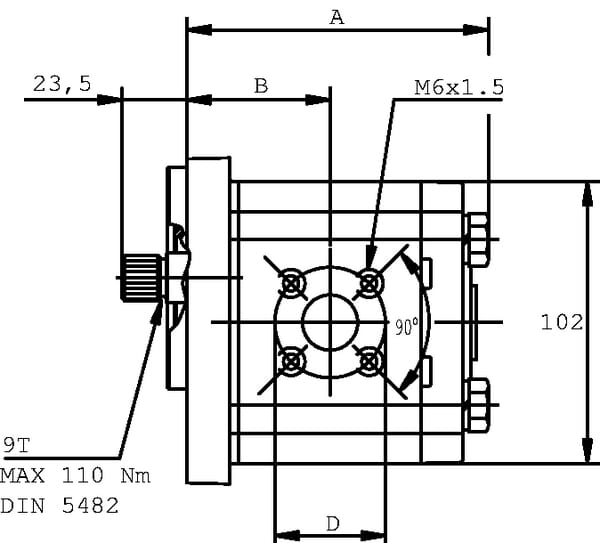

| BConnection port to flange distance | 51.8 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

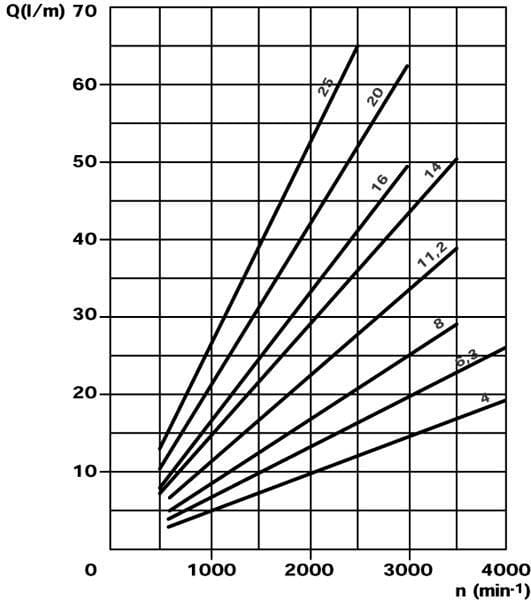

| Displacement | 14.53 cm³/rev |

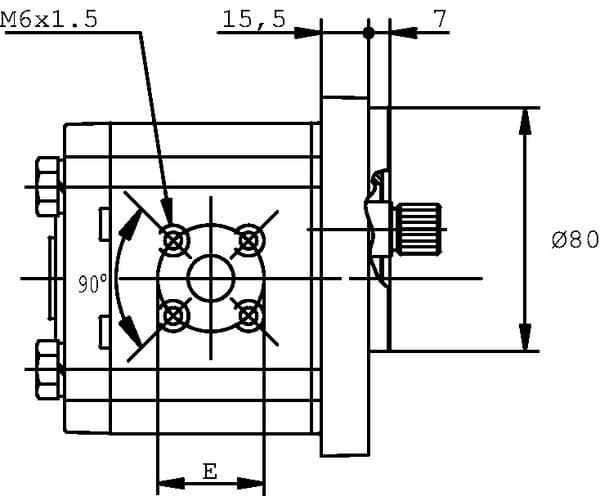

| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 108.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |

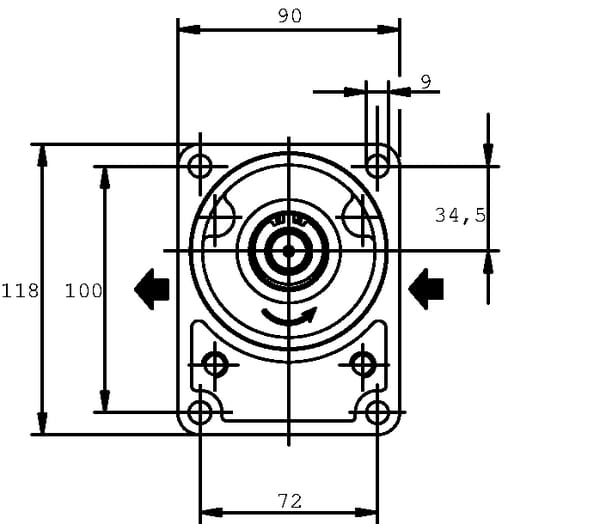

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2650 g |
| Dimensions | 140 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340231

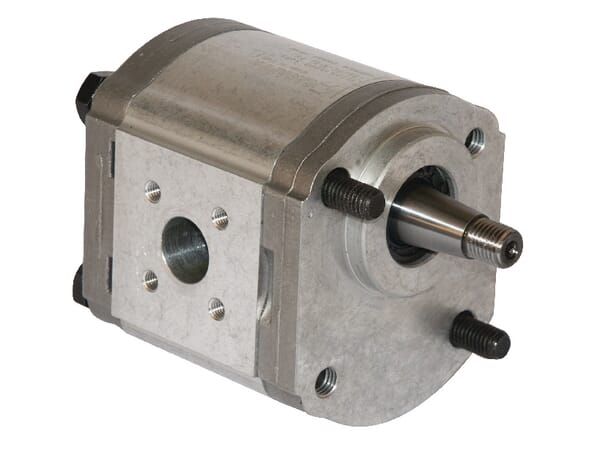

Casappa Pump PLP20.11,2S0-54B5-LBE/BC- PLP2011S054B5
£322.08 excl.
£386.50 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340531

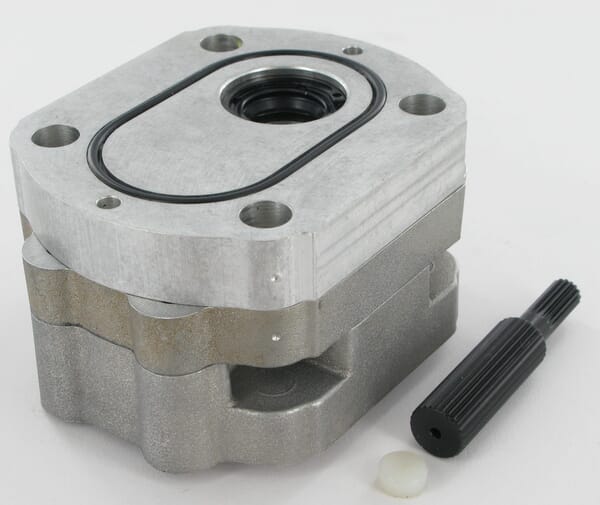

Casappa Mountingkit 51 Z6 Polaris 20/10 PLP92051Z6
