£243.94
excl. VAT
£292.73 incl. VAT
£292.73
incl. VAT
£243.94 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

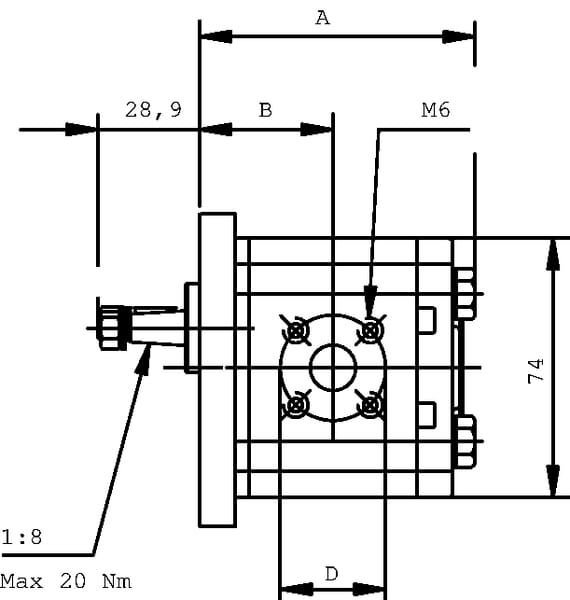

| AHousing length | 66.2 mm |
|---|---|
| BConnection port to flange distance | 31.6 mm |
| Displacement | 1.07 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 260 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |
| Mounting diameter | 25.4 mm |

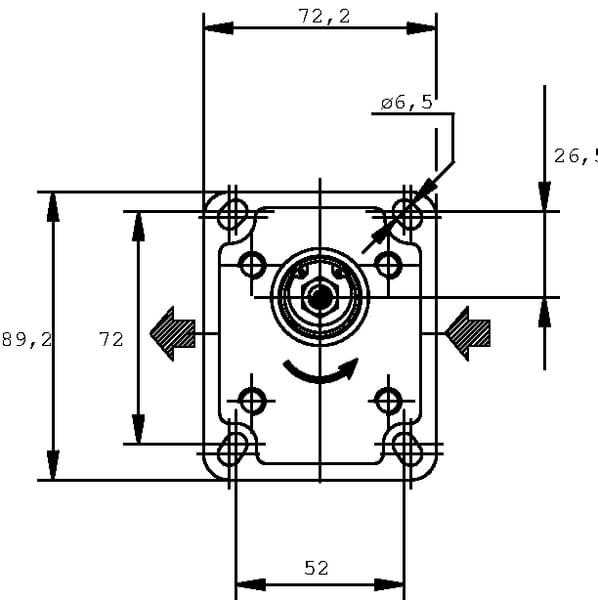

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 830 g |
| Dimensions | 95 × 95 × 75 mm |
| Dangerous goods | No |
