£559.09
excl. VAT
£670.91 incl. VAT
£670.91
incl. VAT
£559.09 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

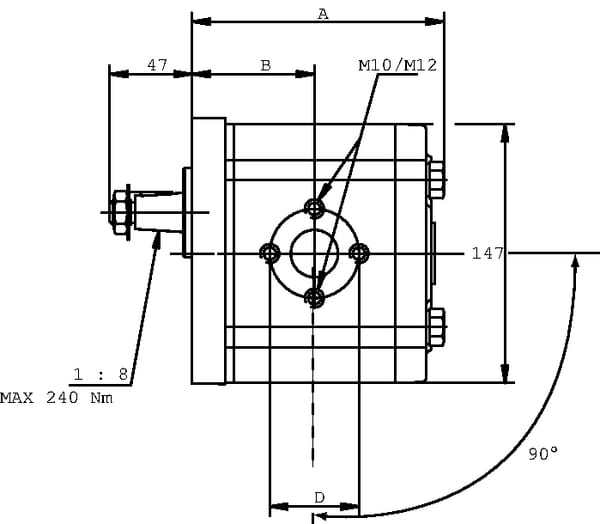

| AHousing length | 138 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 67 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

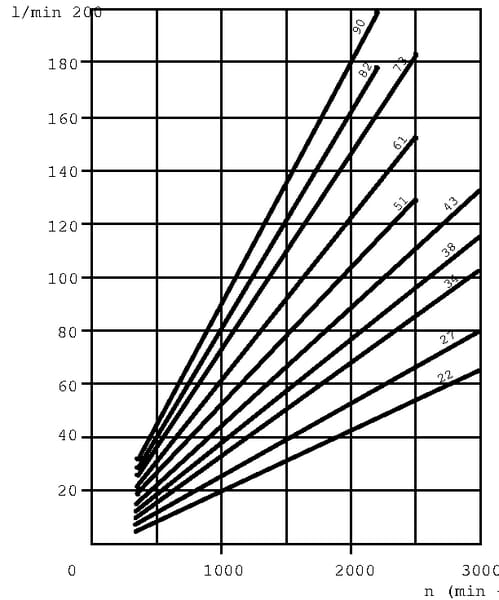

| Displacement | 34.55 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 270 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

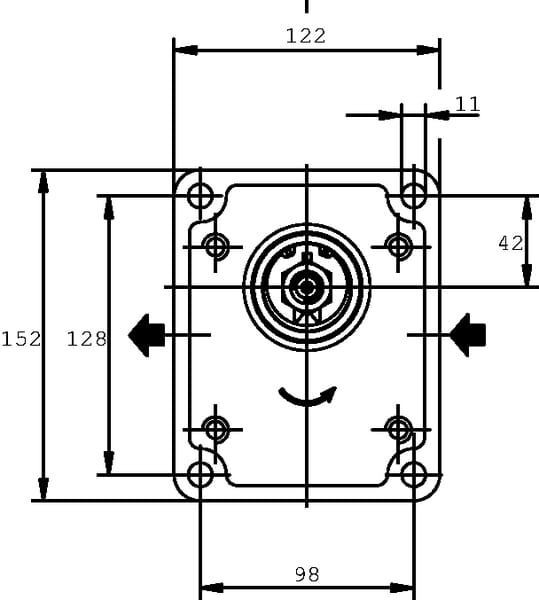

| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9104 g |
| Dimensions | 183 × 153 × 124 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340300
Casappa Tandem Pump PLP20.20-D0-86-S6-LBE/BC-N-I-FS PLP2020DIIB
£319.43 excl.
£383.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301300
Casappa Woodruff key KP/KM 30 KP94025
£6.04 excl.
£7.25 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340249
Casappa Tandem Pump PLP20.14-D0-86-S6-LBE/BC-N-I-FS PLP2014DIIB
£311.85 excl.
£374.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000285990

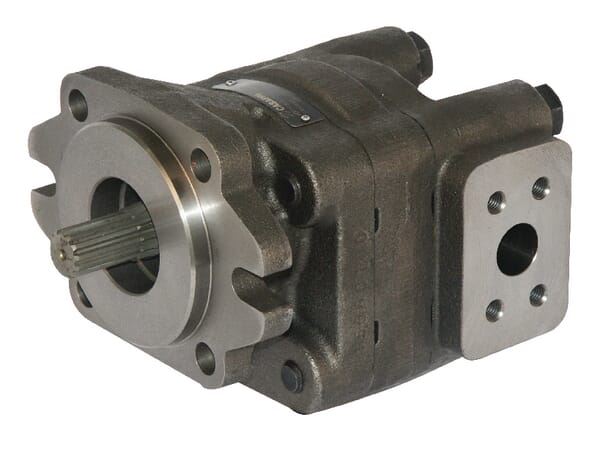

Casappa Pump HDP35.71 D0-06S8 LME/MD-N HDP3571D
