£205.55
excl. VAT
£246.66 incl. VAT
£246.66
incl. VAT
£205.55 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

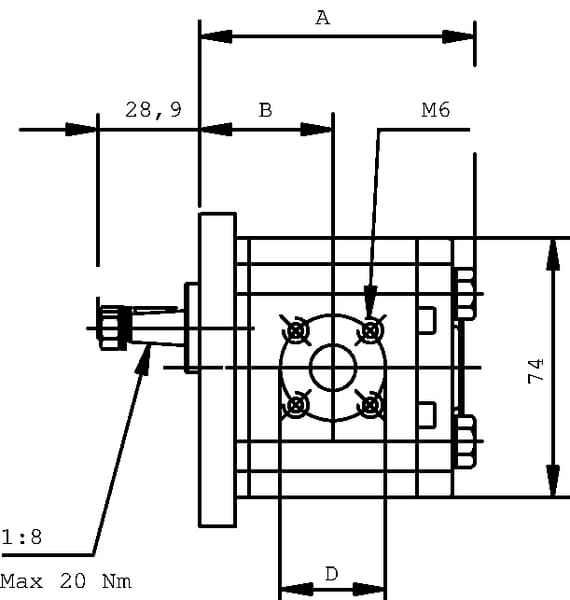

| AHousing length | 69.4 mm |
|---|---|
| BConnection port to flange distance | 33.2 mm |
| Displacement | 2.13 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 260 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |

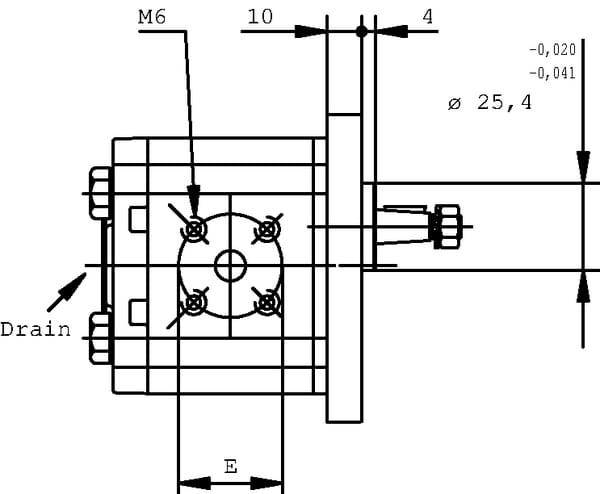

| Mounting diameter | 25.4 mm |

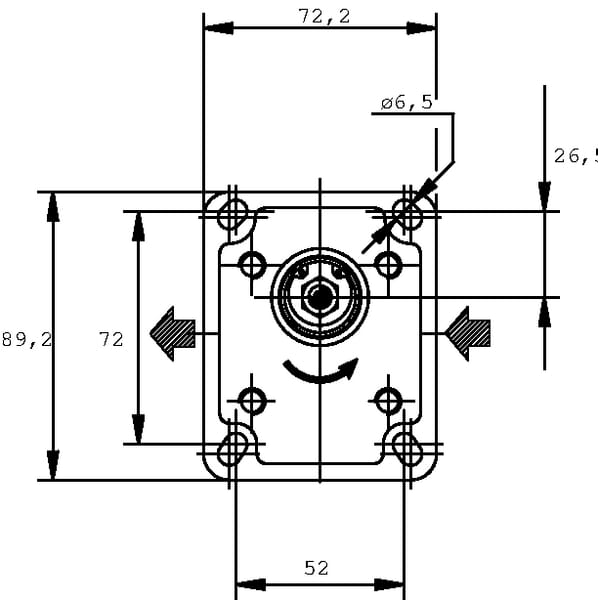

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |

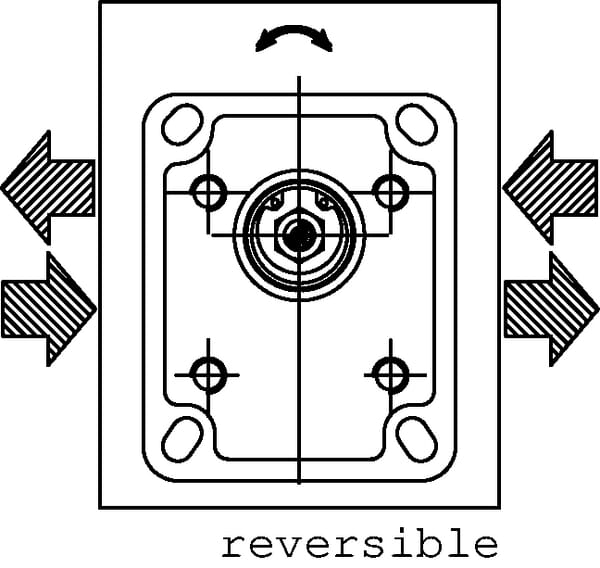

| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 884 g |
| Dimensions | 96 × 95 × 74 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340238

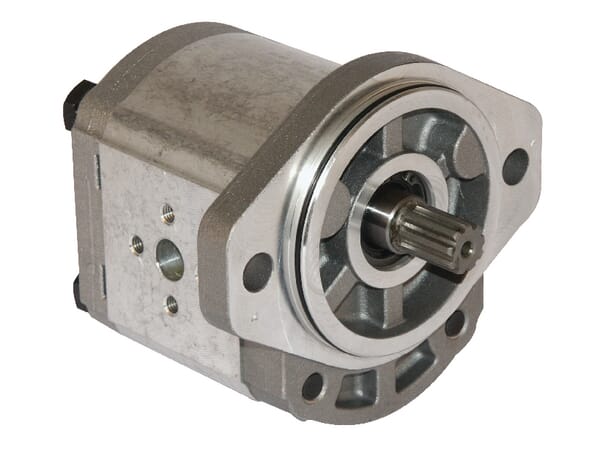

Casappa Pump PLP20.14D0-03S2-LEB/EA-N-EL FS PLP2014D003S2
£335.07 excl.
£402.08 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340183
Casappa Rear section PLP10.2 D0-88V6-LBE/BA-N-I FS PLP102DII
£202.78 excl.
£243.34 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340173

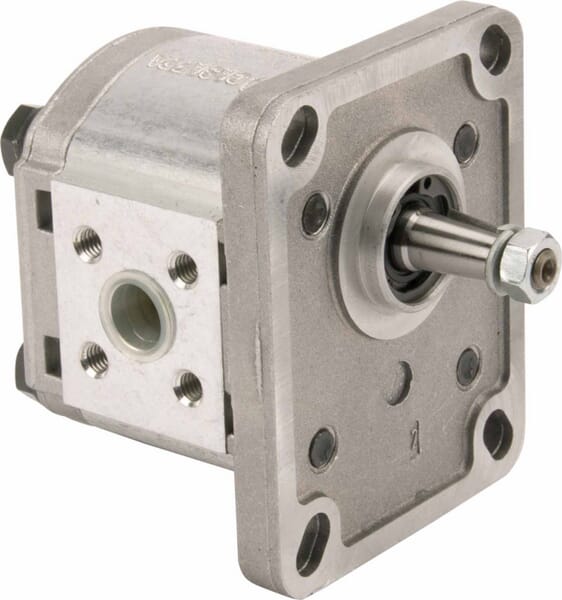

Casappa Pump PLP10.1.5D0-81E1-LBB/BA- PLP1015D081E1
