£247.97
excl. VAT
£297.56 incl. VAT
£297.56
incl. VAT
£247.97 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

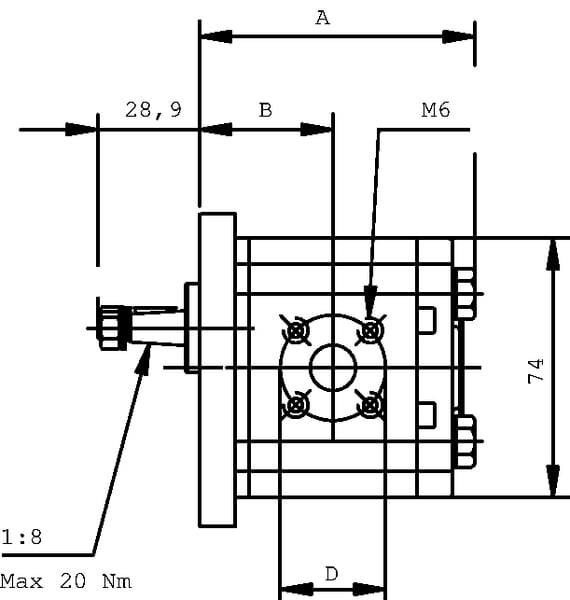

| AHousing length | 75.8 mm |
|---|---|

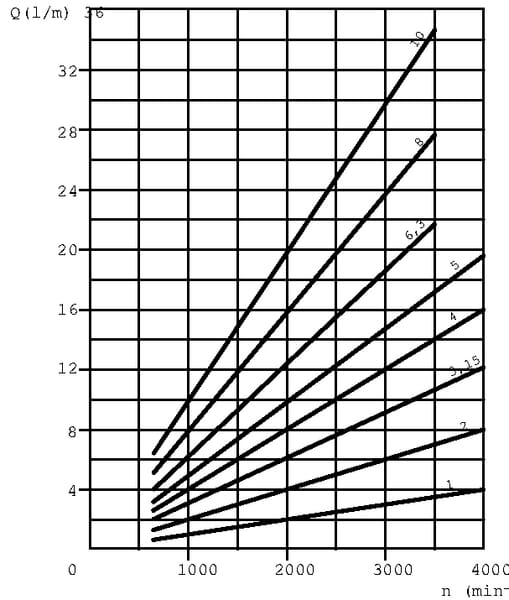

| Displacement | 4.27 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |

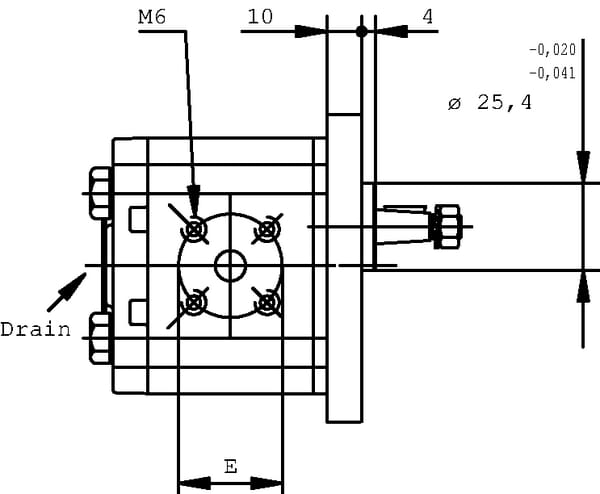

| Mounting diameter | 25.4 mm |

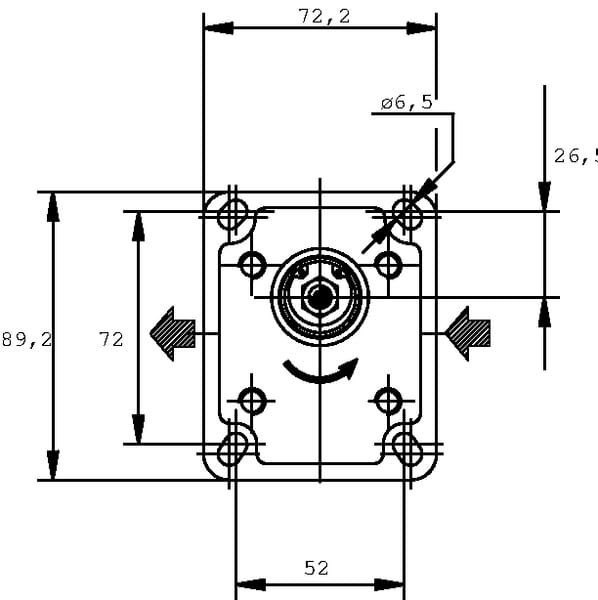

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 986 g |
| Dimensions | 110 × 90 × 115 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340210
Casappa Tandem pump PLP20.11-54B5/ 20.11-LBE/BC-S/FS-EL PLP20112011S
£625.64 excl.
£750.77 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279323
Casappa Pump FP30.34D0-19T1-LGE/GE-N FP3034D
£618.86 excl.
£742.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340023

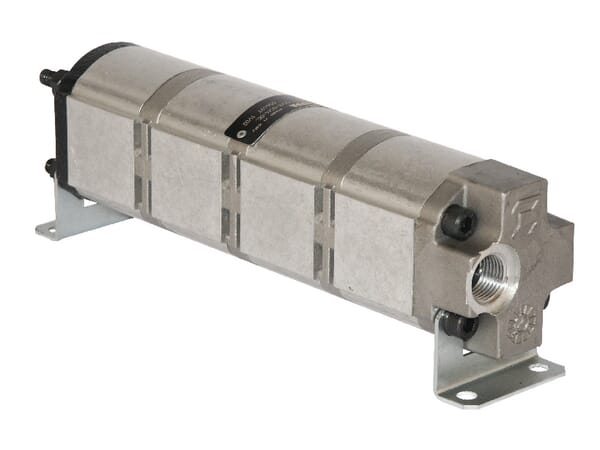

Casappa Rotary flow divider Polaris 10 PLD1044
£1,188.89 excl.
£1,426.67 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340420

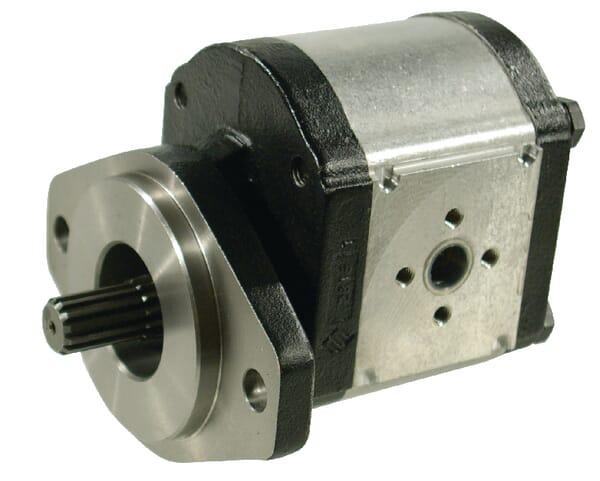

Casappa Pump PLP30.34S0-04S5-LED/EB-N-FS PLP3034S004S5
£539.15 excl.
£646.98 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301262
Casappa Pump LEA/EA KP208D082E2
£407.44 excl.
£488.93 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279391

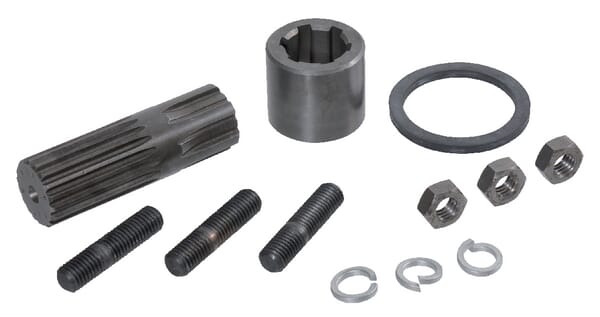

Casappa Mounting kit KIT53C2 (FP40/FP30) FP94053C2B
