£539.15
excl. VAT
£646.98 incl. VAT
£646.98
incl. VAT
£539.15 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Connection port to flange distance | 43 mm |
|---|---|
| Displacement | 34.55 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 114 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 270 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

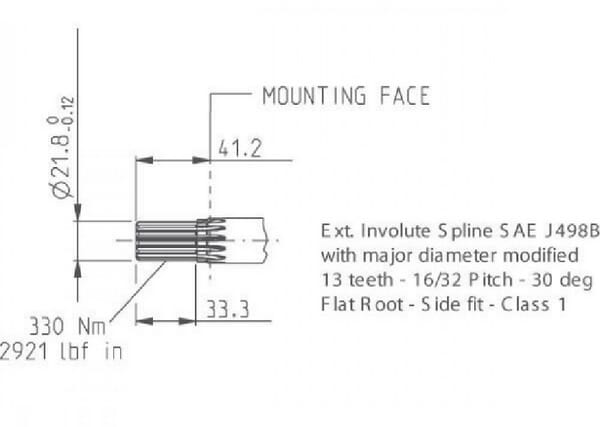

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11142 g |
| Dimensions | 221 × 166 × 167 mm |
| Dangerous goods | No |
