£225.97
excl. VAT
£271.16 incl. VAT
£271.16
incl. VAT
£225.97 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

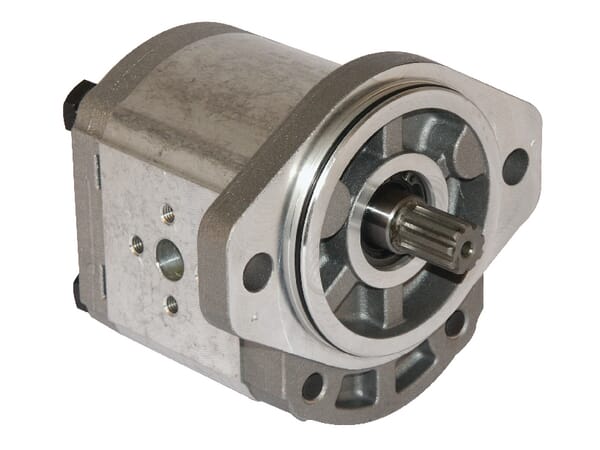

Product details

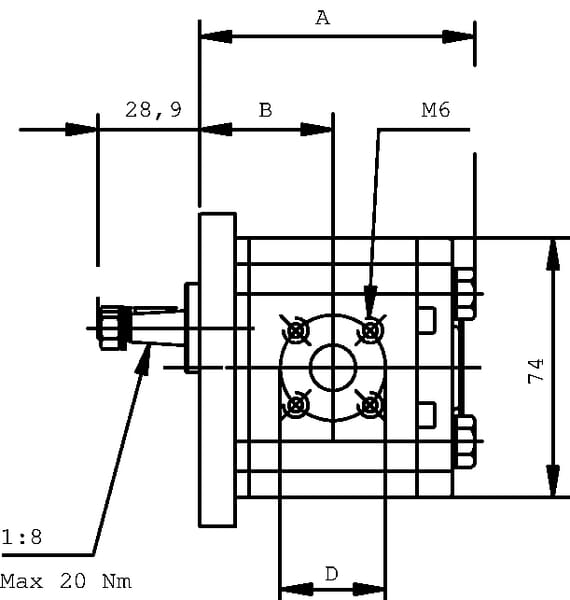

| AHousing length | 79 mm |
|---|---|
| BConnection port to flange distance | 38 mm |

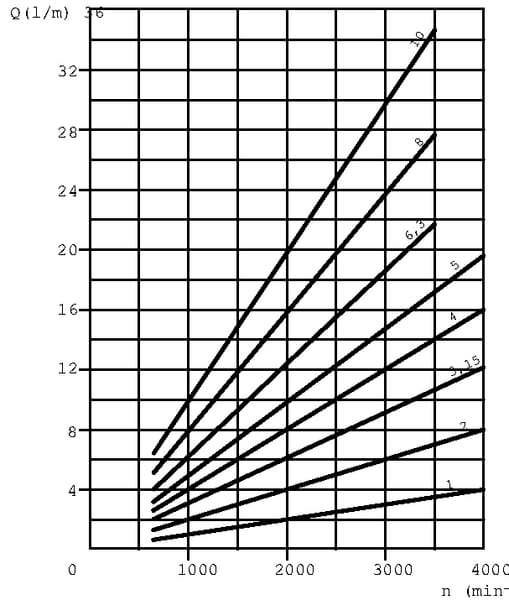

| Displacement | 5.34 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |

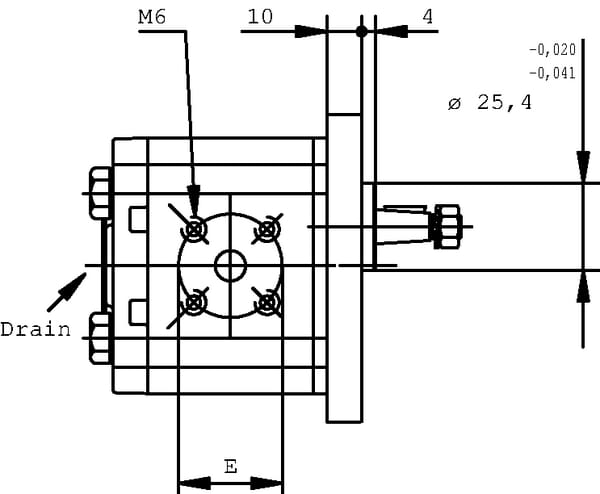

| Mounting diameter | 25.4 mm |

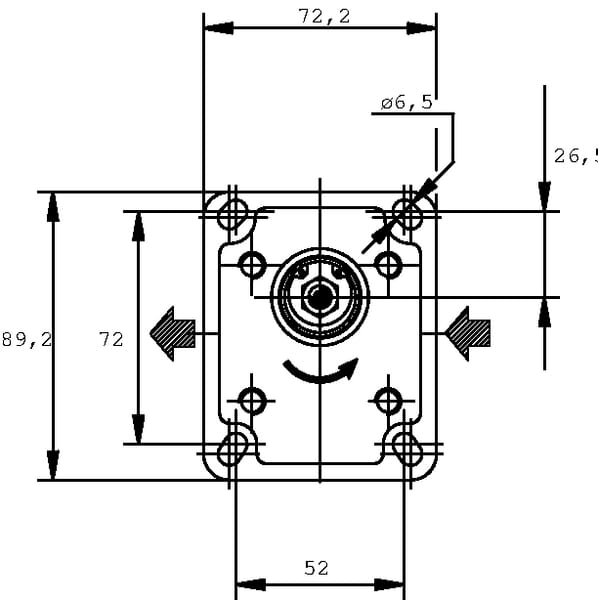

| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port thread type | BSP |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607070768 |
|---|---|
| Unit of measure | EA |
| Weight | 975 g |
| Dimensions | 111 × 111 × 91 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000231960
Casappa Pump APL61B0-43T0-N APL61B
£593.00 excl.
£711.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000279388
Casappa Koppelset KIT56M2 (FP30/FP30) FP93056M2
£96.63 excl.
£115.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340345
Casappa Pump PLP20.4D0-54B2-LBE/BC-N-EL FS PLP204D054B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340039

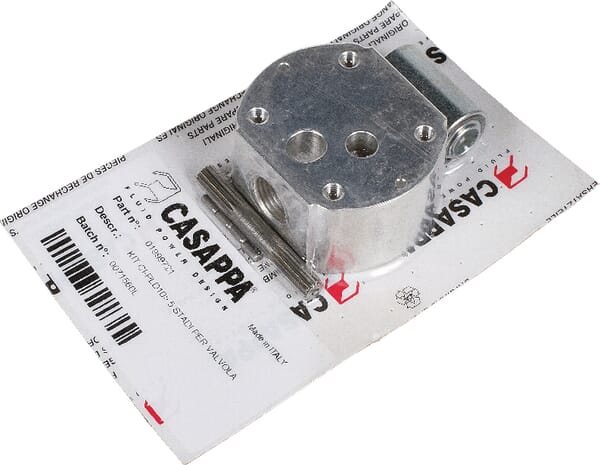

Casappa Mid inlet section CI-PLD10 for 5 Sections PLD910CI
£124.10 excl.
£148.92 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340371
Casappa Tandem Pump PLP20.6,3-D0-86-S6-LBE/BC-N-I-FS PLP206DIIB
£285.88 excl.
£343.06 incl.
In stock
Expected to ship on Monday 21 September
BPA000340485
Casappa Tie bolts Polaris 10 M8x220 PLP910M8220
£54.25 excl.
£65.10 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000202137
Kramp Hexagon head bolt DIN933 M8x16 steel 8.8 933816B
£0.08 excl.
£0.10 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000362026
Unbranded Snow shovel wear strip polyurethane SL300015032P
£482.69 excl.
£579.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000232599

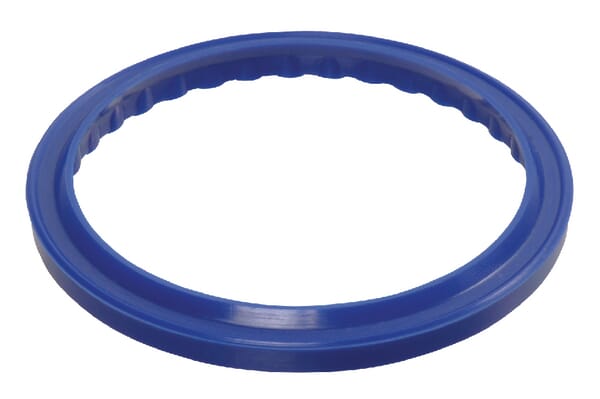

Hallite Rod wiper ASU 22x30.6x5.3/7mm ASU2230653
£1.12 excl.
£1.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000169317
SKF Deep groove ball bearing 15x35x14mm 75004202
£53.20 excl.
£63.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402153
Hünersdorff Assortment box 210x120x36mm, transparent polystyrene, 6 compartments, WE6160
£5.42 excl.
£6.50 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000063850

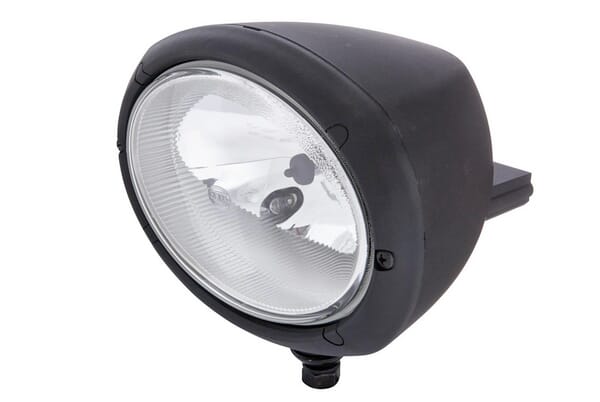

Hella Headlight Halogen, round, 12/24V, bolt on, 207x147x207mm, 1AB996157151
