£302.14
excl. VAT
£362.57 incl. VAT
£362.57
incl. VAT
£302.14 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 44.2 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 8.26 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 96 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2300 g |
| Dimensions | 140 × 100 × 85 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340437
Casappa Gearbox with pump group 3 43cc PLP3043GBF30S3KIT
£921.33 excl.
£1,105.60 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340647
Casappa Seal kit 30-83E3 PLP93083E3
£34.36 excl.
£41.23 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340087
Casappa Motor PLM10.4R0-81E1-LBA/BB-N-EL PLM104R81E1
£355.07 excl.
£426.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340424
Casappa Pump PLP30.38D0-83E3-LED/EB-N-FS PLP3038D083E3
£415.05 excl.
£498.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340111

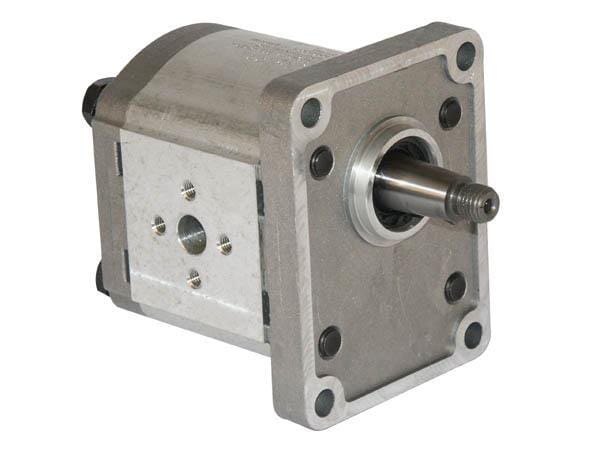

Casappa Gear Motor PLM20.8D0-82E2 L PLM208D82E2
£407.20 excl.
£488.64 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000285970

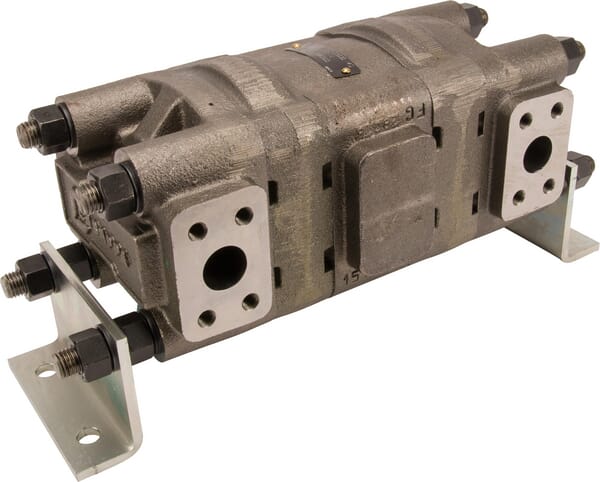

Casappa Flow divider dual 43CC HDD3043MID3043
