£244.06
excl. VAT
£292.87 incl. VAT
£292.87
incl. VAT
£244.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 14.53 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | S1 |
| Flange type norm | SAE-A |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Low pressure |
| Shaft cone size code | n/a |
| Shaft diameter | 15.5 mm |
| Shaft number of teeth | 9 |
| Shaft thread diameter | n/a |
| Shaft type | Splined 9T |
| Shaft type code | 03 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2704 g |
| Dimensions | 140 × 140 × 130 mm |
| Dangerous goods | No |
You might also like

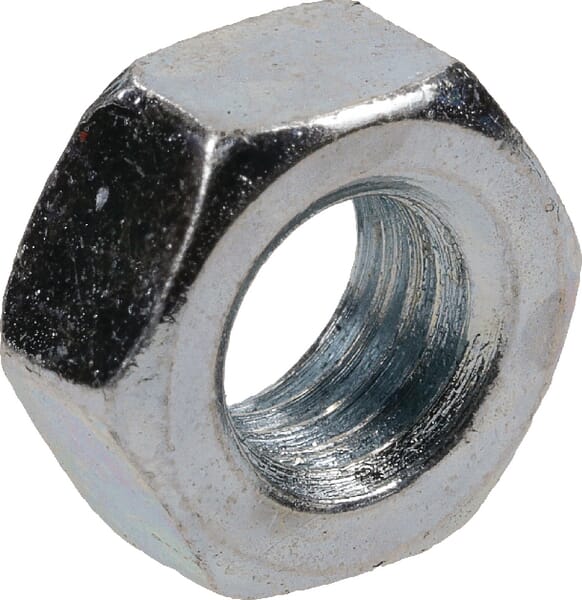

BPA000340464
Casappa Nut complete pump GR.1 PLP91015
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340206
Casappa Pump PLP10.8 D0-81E1-LGD/GD-N- PLP108D081E1G
£247.74 excl.
£297.29 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

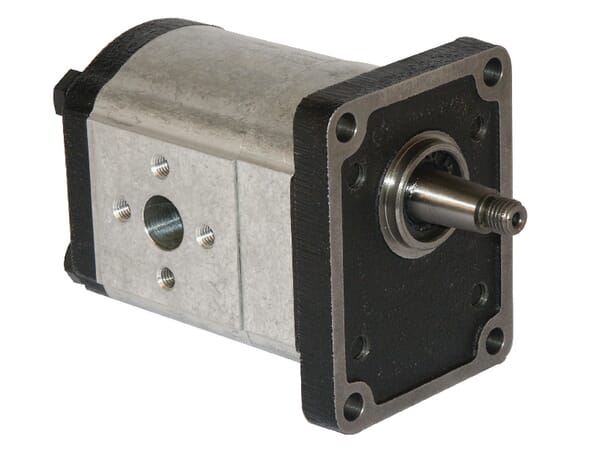

BPA000340298
Casappa Pump PLP 20.20-D3 82-E2 LEB/EA PLP2020D382E2
£471.65 excl.
£565.98 incl.
In stock
Expected to ship on Monday 21 September
BPA000340045
Casappa Screw set M8x230 (PLD10/4) PLD910M8230
£34.95 excl.
£41.94 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340379
Casappa Pump PLP20.8/20.8 D/FS EL PLP2088D082E2
£679.35 excl.
£815.22 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

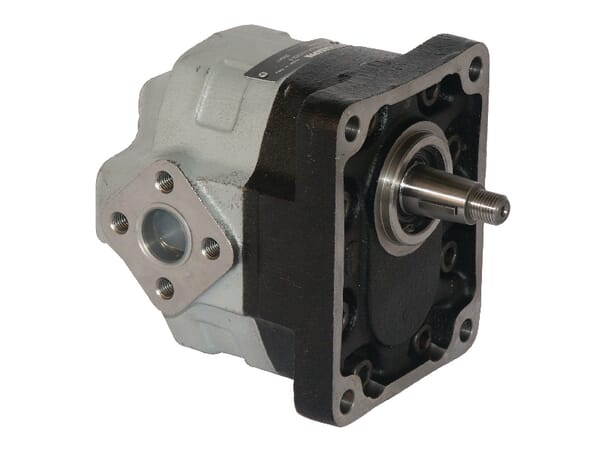

BPA000301024
