£338.64
excl. VAT
£406.37 incl. VAT
£406.37
incl. VAT
£338.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 46.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 14.53 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 105.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2600 g |
| Dimensions | 151 × 103 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340301

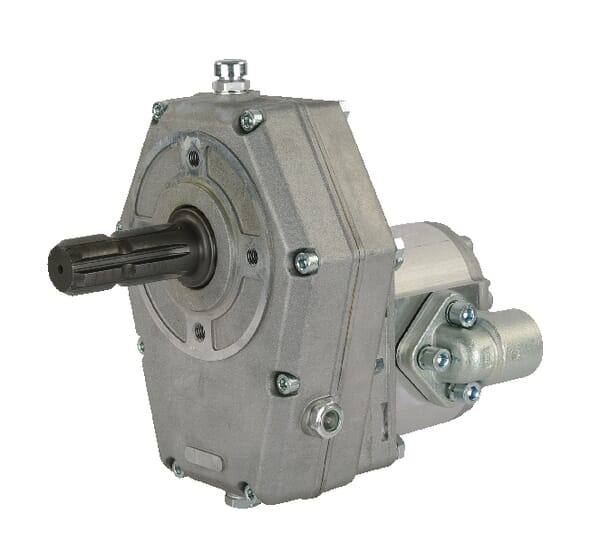

Casappa Gearbox with pump group 2 20cc PLP2020GBF20135KIT
£540.37 excl.
£648.44 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340390
Casappa Tandem Pump PLP20.8-D0-86-S6-LBE/BC-N-I-FS PLP208DIIB
£284.40 excl.
£341.28 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340218
Casappa Pump PLP 20.11-D0 54-B5 LBC/BE PLP2011D054B5
£304.84 excl.
£365.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279356

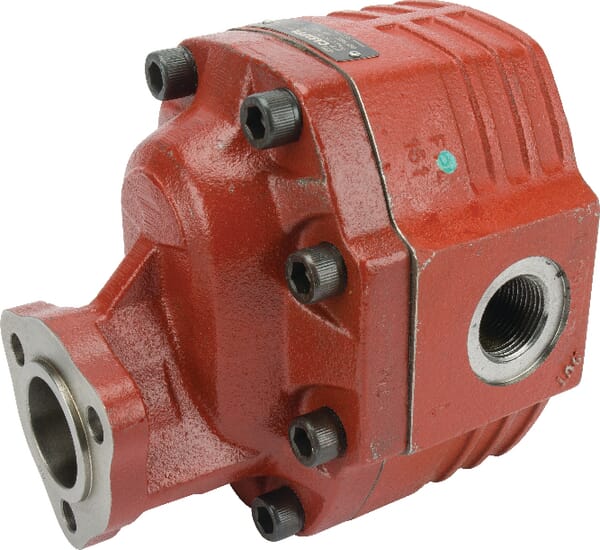

Casappa Pump FP40.109-SO-19T1 FP40109S
