£332.20
excl. VAT
£398.64 incl. VAT
£398.64
incl. VAT
£332.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

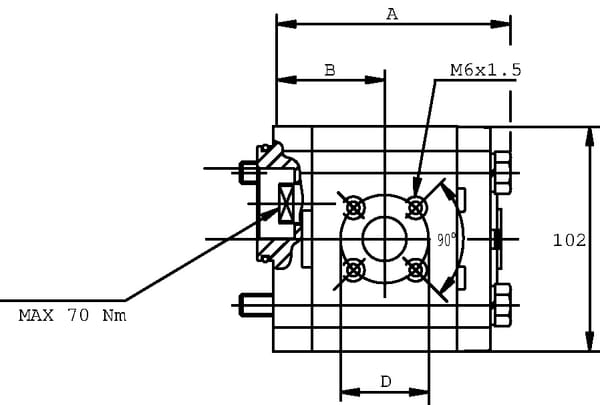

| BConnection port to flange distance | 50.7 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

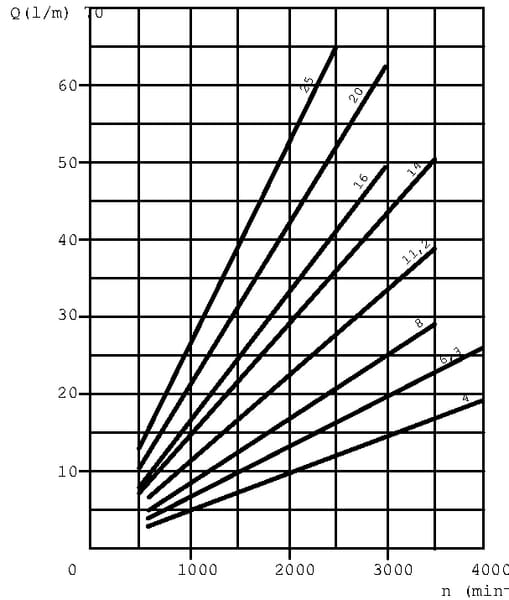

| Displacement | 14.53 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 107.2 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 500 r/min |

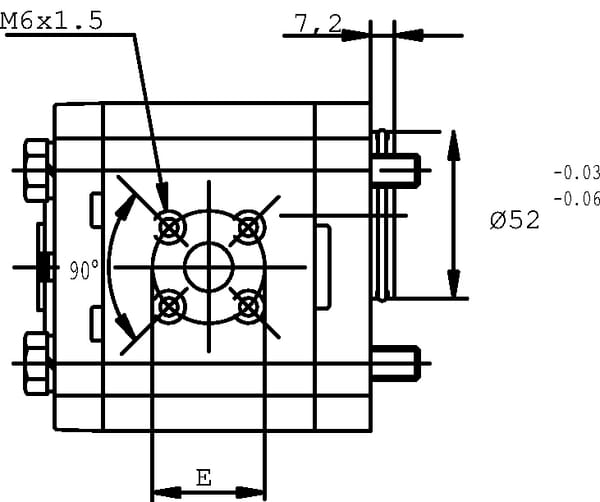

| Mounting diameter | 52 mm |

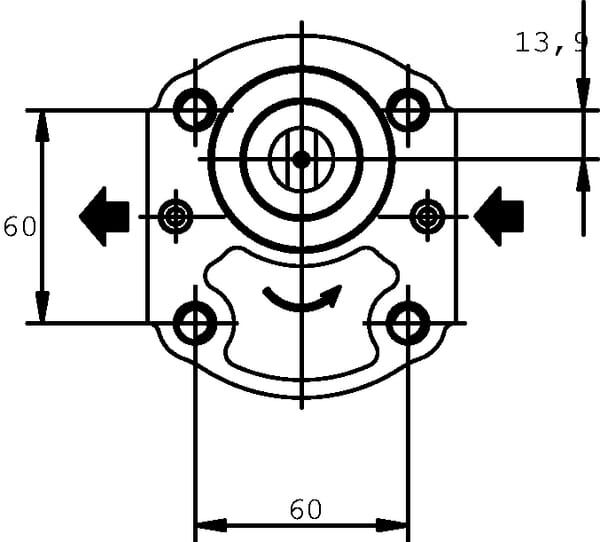

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |

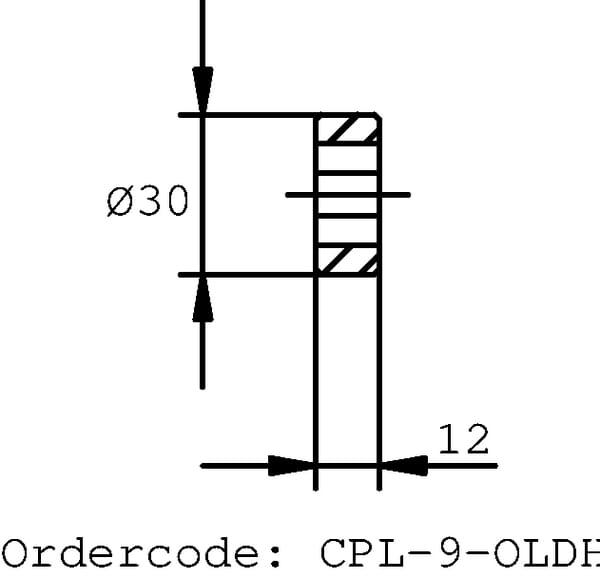

| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2624 g |
| Dimensions | 133 × 123 × 104 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340492
Casappa Drive shaft 11 cc 03/FS PLP92011203FS
£103.08 excl.
£123.70 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340324

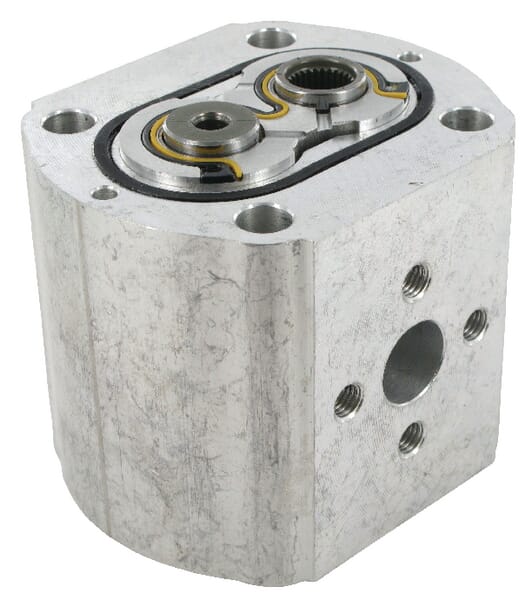

Casappa Tandem Pump PLP20.25-D0-86-S6-LEB/EA-N-I-FS PLP2025DII
£351.58 excl.
£421.90 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340267

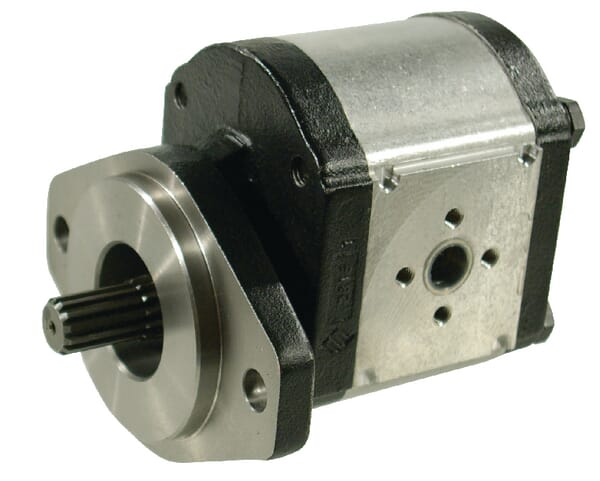

Casappa Pump PLP20.16D004S5-LEB/EANFS PLP2016D004S5
£396.10 excl.
£475.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340145

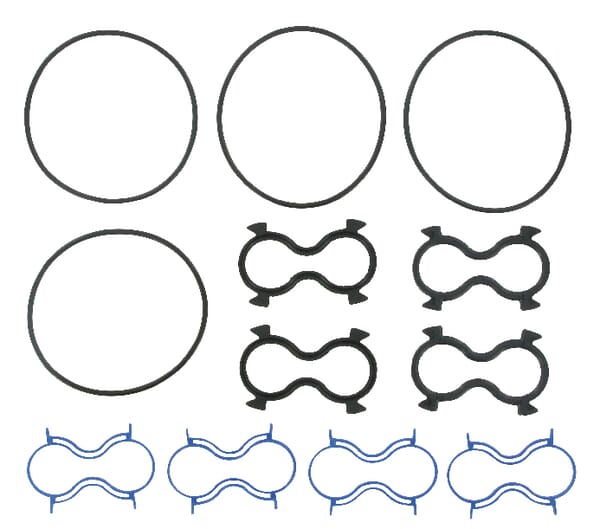

Casappa Seal kit PLM20-53S1-R PLM92053S1RAFD
£21.79 excl.
£26.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340171

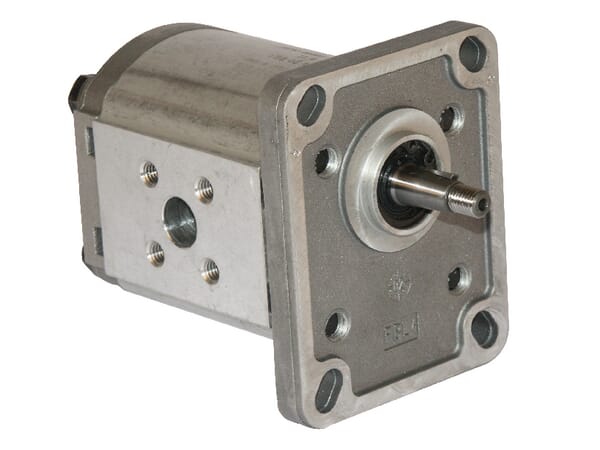

Casappa Pump PLP10.10 D0-81E1-LBB/BA-N PLP1010D081E1
