£250.05
excl. VAT
£300.06 incl. VAT
£300.06
incl. VAT
£250.05 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

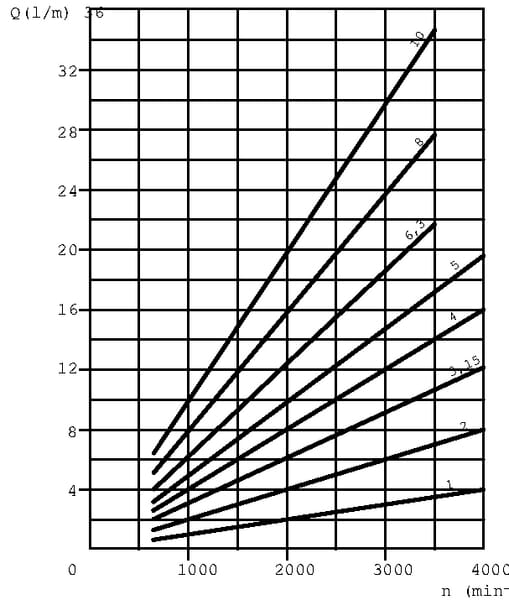

| Displacement | 6.67 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E1 |
| Flange type norm | European |
| Housing material | Aluminium |

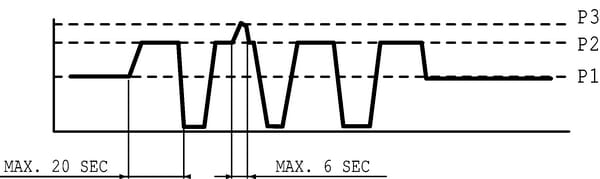

| Max. continous working pressure | 230 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 260 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 650 r/min |

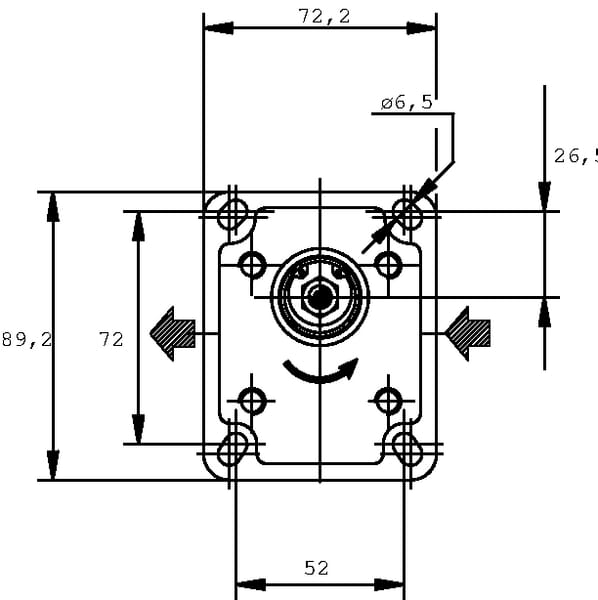

| Mounting diameter | 25.4 mm |
| Mounting holes horizontal distance | 52 mm |
| Mounting holes vertical distance | 72 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Product details | Only minimal axial and radial shaft loads are possible, If the pump is equipped with a sprocket or a V-belt pulley, a thrust bearing must be used, e.g. Order No. T118 |
| Pump group code | 1 |

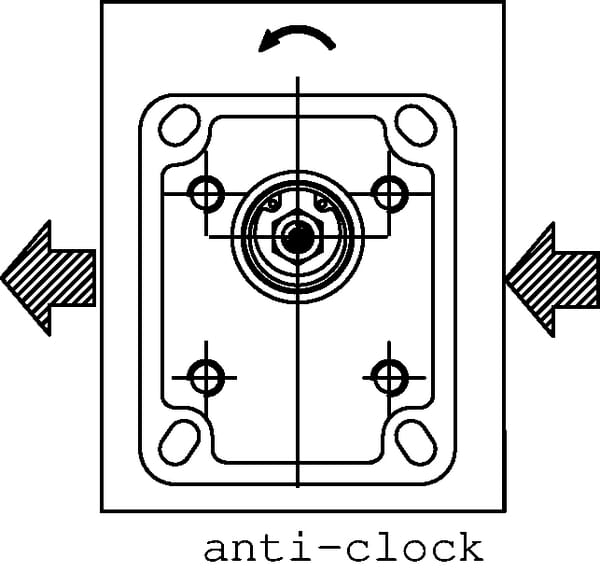

| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |

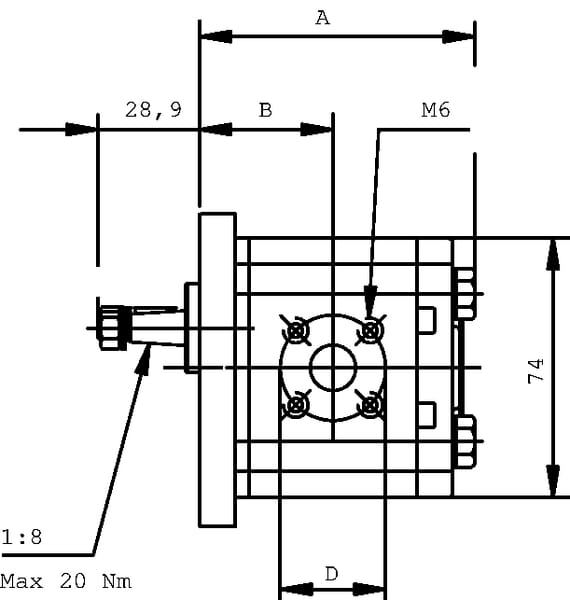

| Shaft cone size code | 1:8 |
| Shaft diameter | 9.35 mm |
| Shaft thread diameter | M7 |
| Shaft thread pitch | 1.00 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 81 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1138 g |
| Dimensions | 97 × 73 × 86 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340263
Casappa Twin pump PLP20.16/20.16 DO-82E PLP20162016D
£736.11 excl.
£883.33 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301026

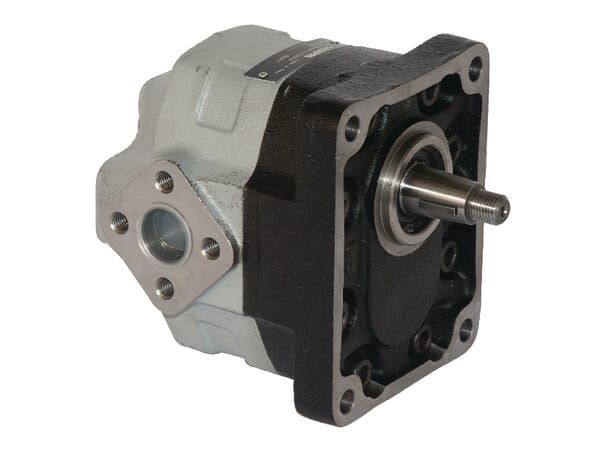

Casappa Motor KM 30.27 RO-83E3-LED/EB KM3027R83E3
£822.73 excl.
£987.28 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340115
Casappa Gear motor PLM20.8R082E2DHKR PLM208R82E2DHKR
£434.55 excl.
£521.46 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340373

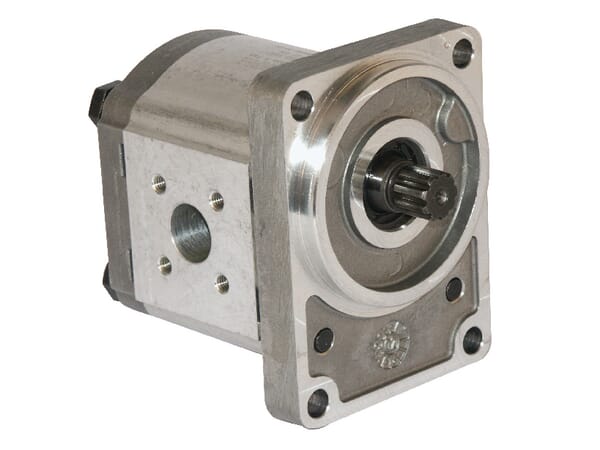

Casappa Pump PLP20.6,3S0-12B2-LBE/BC-N-EL FS PLP206S012B2
£324.06 excl.
£388.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279364
Casappa Tandem Pump FP 40.63 D0-19T1-LGF/GE-J-N-A FP4063DI
£1,133.09 excl.
£1,359.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340284

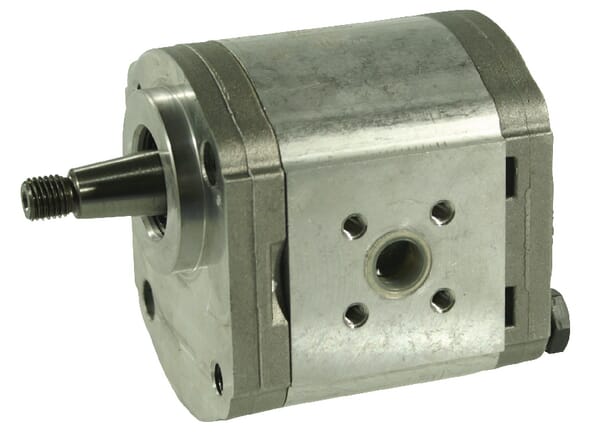

Casappa Pump PLP20.16S0-54B4-LBE/BC-N-EL FS PLP2016S054B4
