£339.17
excl. VAT
£407.00 incl. VAT
£407.00
incl. VAT
£339.17 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

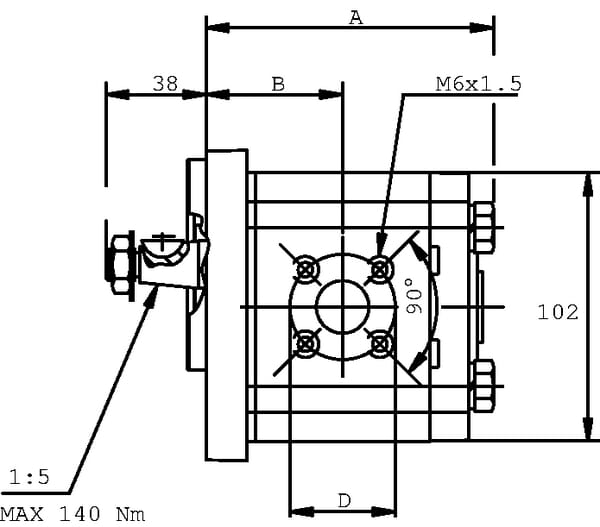

| BConnection port to flange distance | 53.5 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |

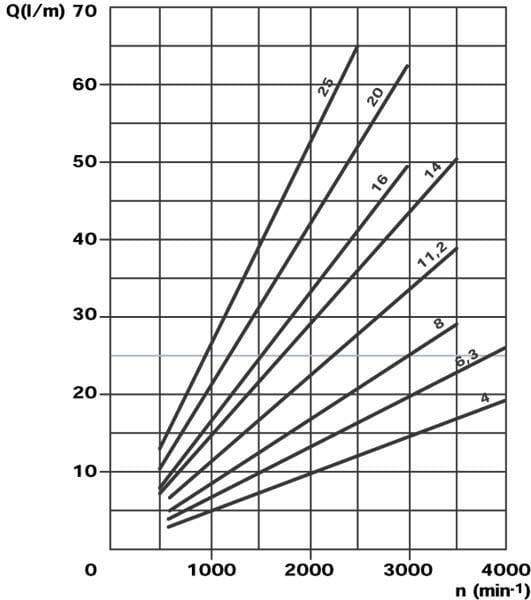

| Displacement | 16.85 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 111.8 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |

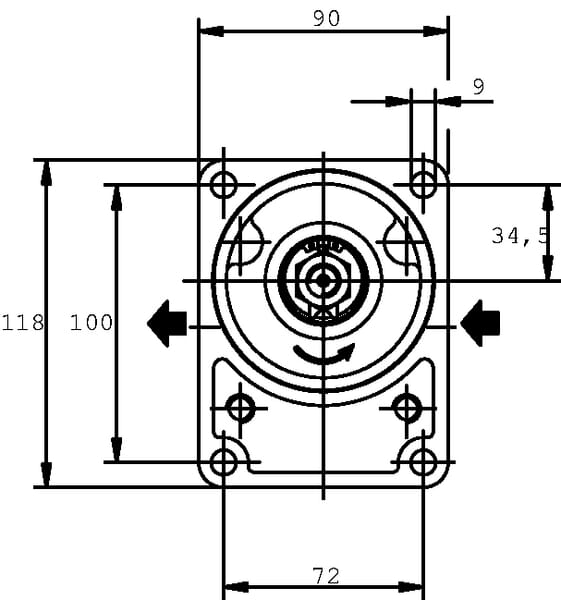

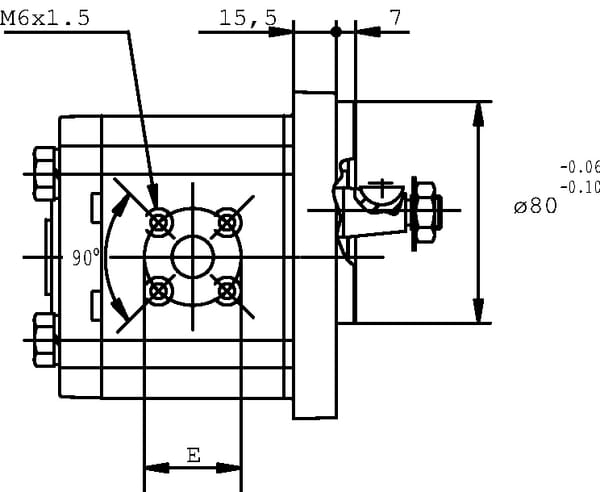

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2756 g |
| Dimensions | 150 × 115 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping

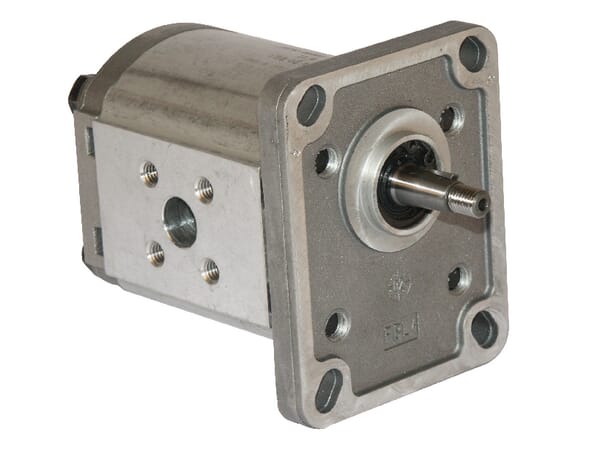

BPA000340203
Casappa Pump PLP10.6,3 S0-81E1-LBB/BA- PLP106S081E1
£222.92 excl.
£267.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340147
Casappa Seal kit PLM20-R-03P9 PLM920R03P9AFD
£22.24 excl.
£26.69 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

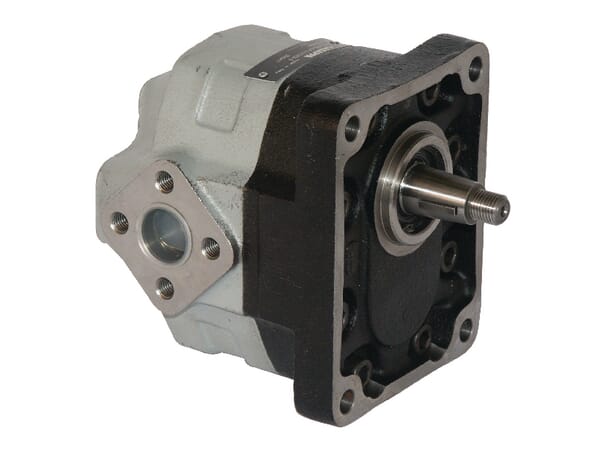

BPA000301028
Casappa Motor KM 30.34 RO-83E3-LED/EB KM3034R83E3
£693.48 excl.
£832.18 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

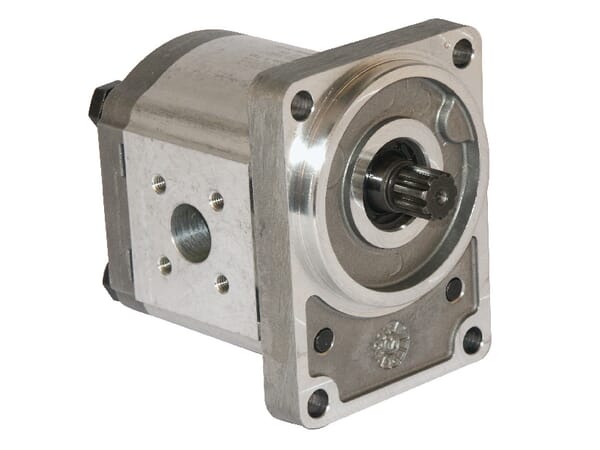

BPA000340281
