£329.25
excl. VAT
£395.10 incl. VAT
£395.10
incl. VAT
£329.25 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

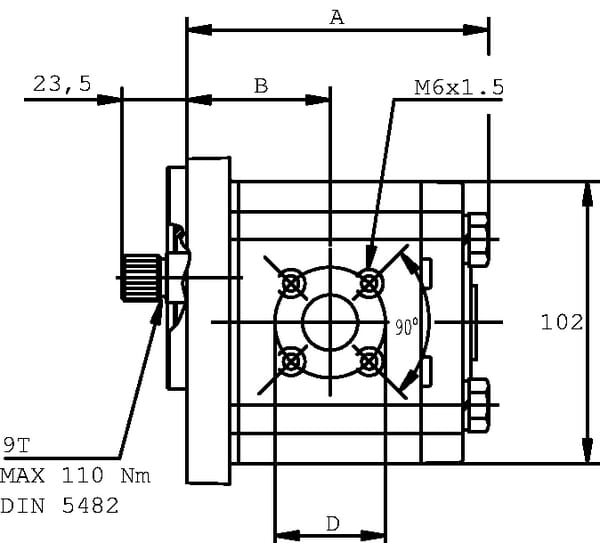

| BConnection port to flange distance | 53.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 16.85 cm³/rev |

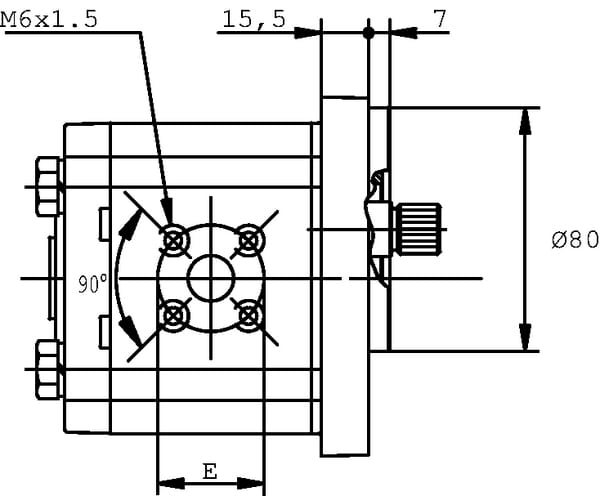

| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 111.8 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |

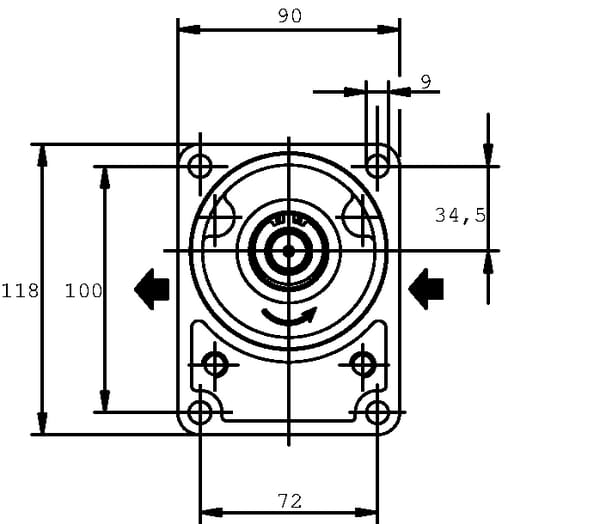

| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Unit | Each |
Logistics
| EAN | 8716106998487 |
|---|---|
| Unit of measure | EA |
| Weight | 2740 g |
| Dimensions | 146 × 119 × 98 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301270

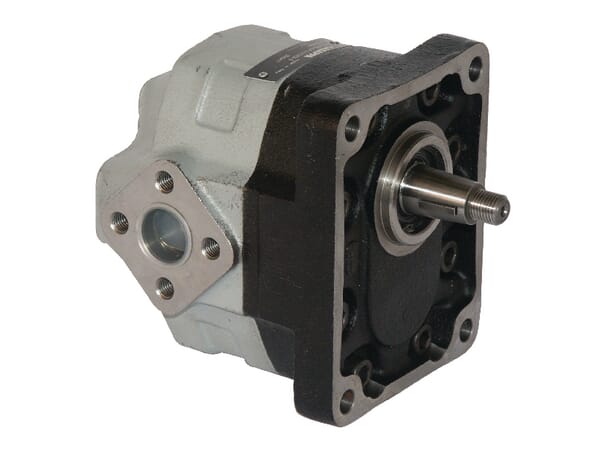

Casappa Pump LED/EB KP3043D083E3
£691.96 excl.
£830.35 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279319

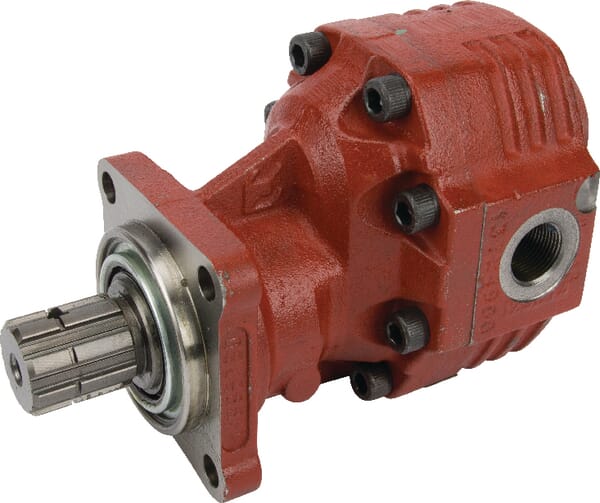

Casappa Pump FP30.27D0-16Z0-LGE/GE-N FP3027D16Z0
£822.27 excl.
£986.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340457

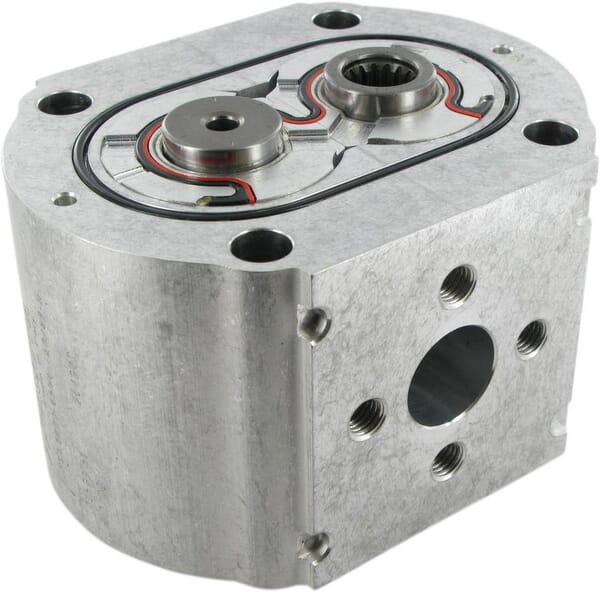

Casappa Tandem pump PLP30.73-D0-65-M6-LEF/ED-N-I-FS PLP3073DII
£630.79 excl.
£756.95 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340496

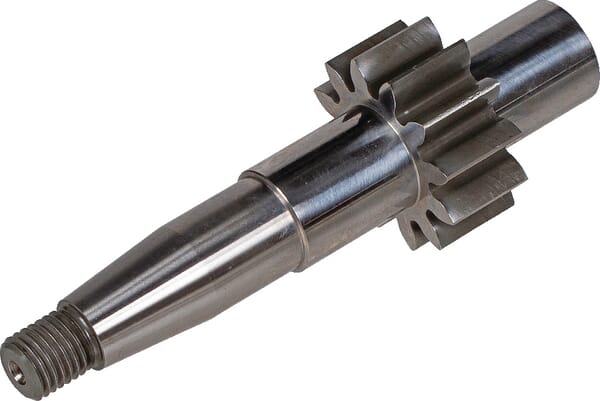

Casappa Drive shaft 11 cc 54/FS PLP92011254FS
£124.37 excl.
£149.24 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340351

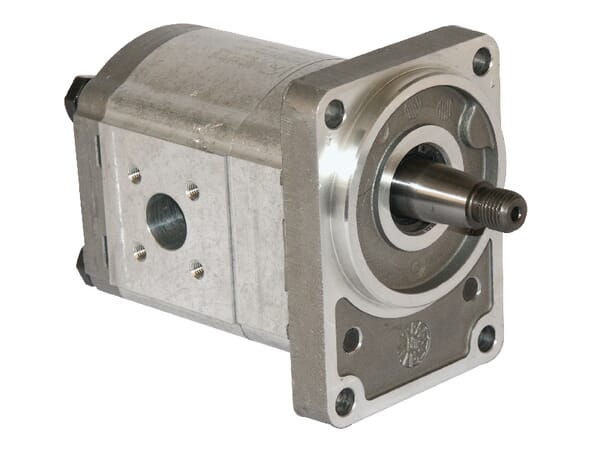

Casappa Pump PLP20.4-D3-55-B2L PLP204D355B2
