Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 56.8 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.14 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 118.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2950 g |
| Dimensions | 145 × 115 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301001
Casappa Motor KM 20.4 RO-82E2-LEA/EA KM2004R82E2
£512.05 excl.
£614.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340200

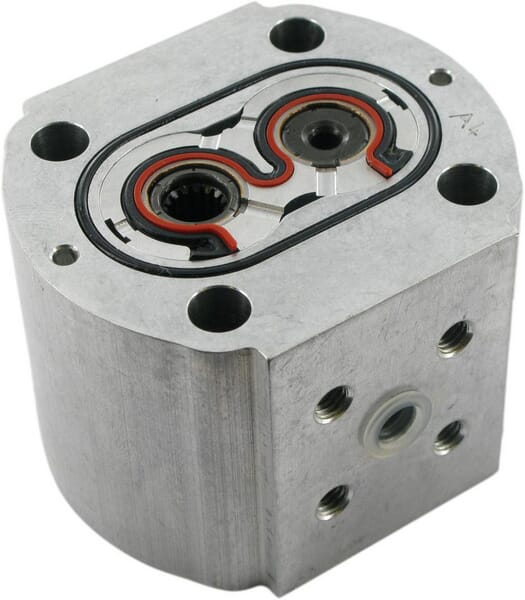

Casappa Rear section PLP10.6,3 D0-88V6-LBB/BA-N-I FS PLP1063DII
£221.92 excl.
£266.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301252

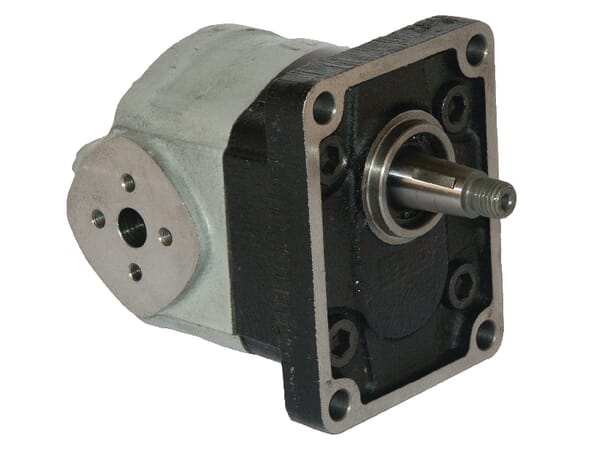

Casappa Pump LEA/EB KP2011D082E2
£413.31 excl.
£495.97 incl.
In stock
Expected to ship on Monday 21 September
BPA000340657

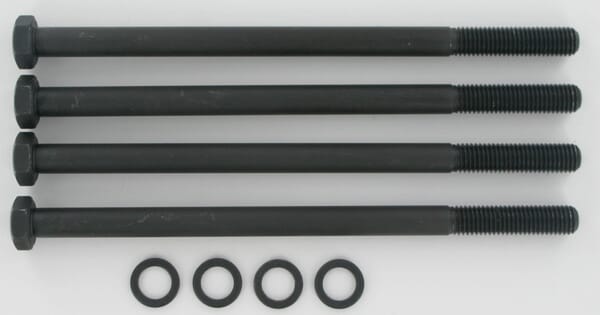

Casappa Tie bolts polaris 30 M12x215 PLP930M12215
£38.93 excl.
£46.72 incl.
In stock
Expected to ship on Monday 21 September
BPA000340149
Casappa Thrust plate PLM20 PLM920RDHCAVA
£29.45 excl.
£35.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279331
Casappa Tandem Pump FP 30.51 B0-19T1-LG FP3051BI
£983.38 excl.
£1,180.06 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000209527
Kramp Shim diameter 5x10x1mm DIN 988 98851010P010
£0.17 excl.
£0.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000193974
Oregon Saw chain 3/8" 1.3mm 1640 DL 100 ft semi chisel Versacut 91VXL100R
£437.39 excl.
£524.87 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000063813

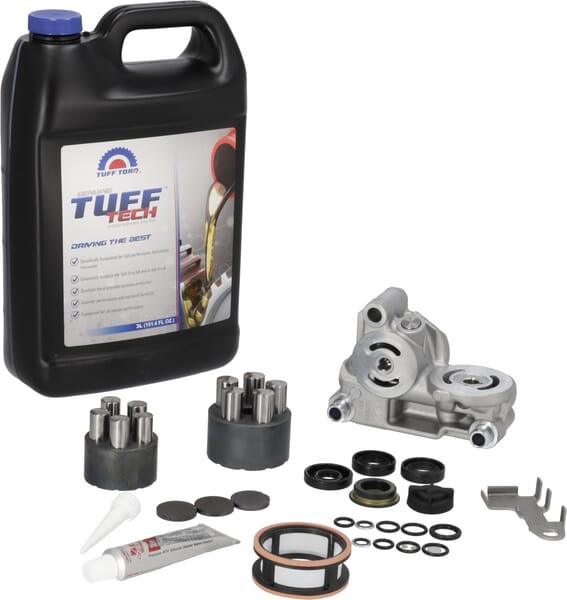

Tuff Torq Seal kit (with oil with sealant) 1A646098480
£813.30 excl.
£975.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000052168
Kramp Reel Tine Deutz-Fahr 16000929Z
£4.62 excl.
£5.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000329398
Kramp O-ring 19.8x3.6mm 70 shore 10x OR1980360P010
£2.40 excl.
£2.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000010382

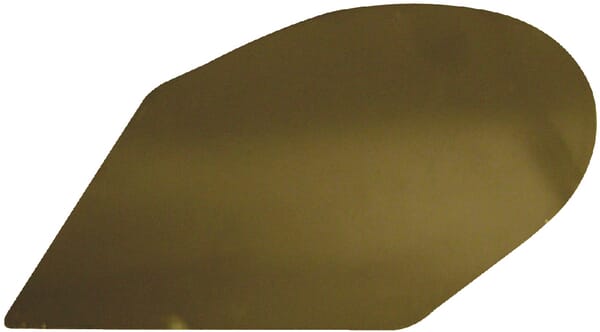

Goizin Skim board LH (302531)Goizin 010581
