£983.38
excl. VAT
£1,180.06 incl. VAT
£1,180.06
incl. VAT
£983.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Benefits | Wide range of applications, Compact design |
|---|---|
| Connection port to flange distance | 71 mm |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 51.83 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing length | 125.5 mm |
| Housing material | Cast iron |
| Max. continous working pressure | 200 BAR |
| Max rotation speed | 2500 r/min |
| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14600 g |
| Dimensions | 200 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
BPA000340659

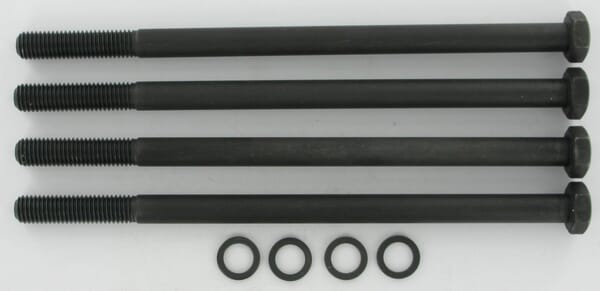

Casappa Tie bolts polaris 30 M12x225 PLP930M12225
£38.90 excl.
£46.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340650

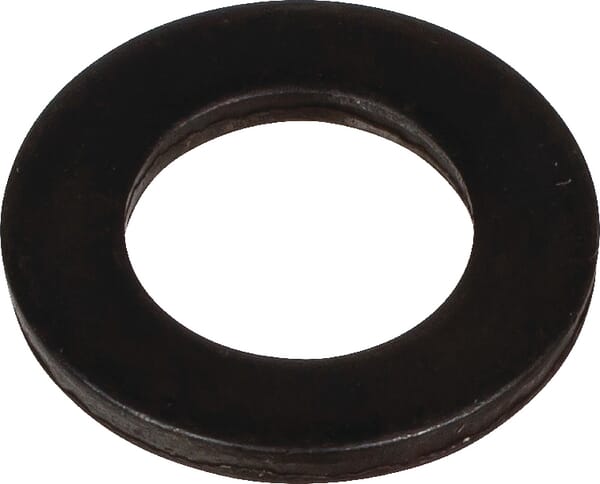

Casappa Washer B14 DIN 128 Dacromet PLP930B14
£0.11 excl.
£0.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340212

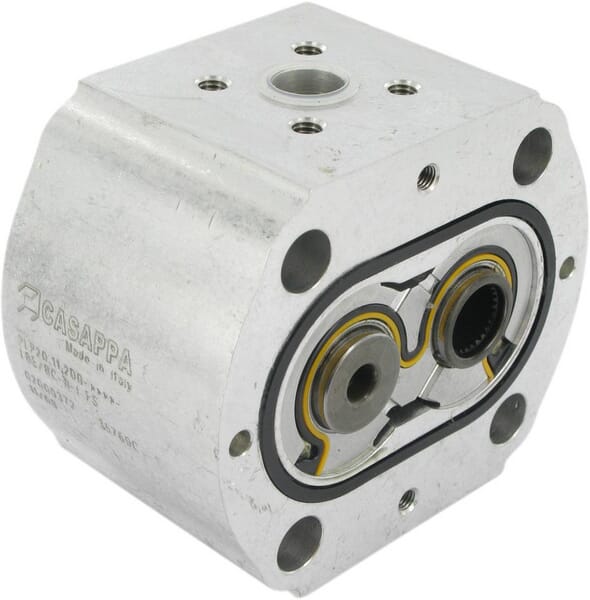

Casappa Tandem Pump PLP20.11,2D0-86-S6-LBE/BC-N-I-FS PLP20112DIIB
£286.12 excl.
£343.34 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279361

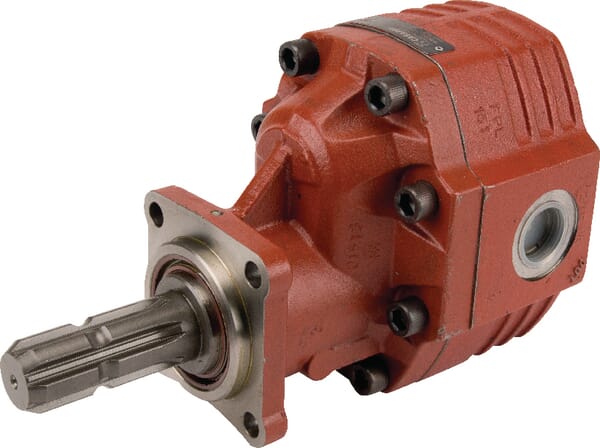

Casappa Pump FP40.151S0-76Z0-LGH/GF-N FP40151S076Z0
£1,422.34 excl.
£1,706.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340653

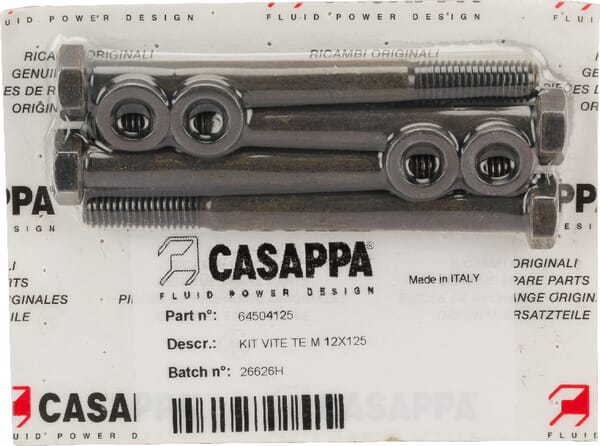

Casappa Bolt set M12X125 PLP930M12125
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340071

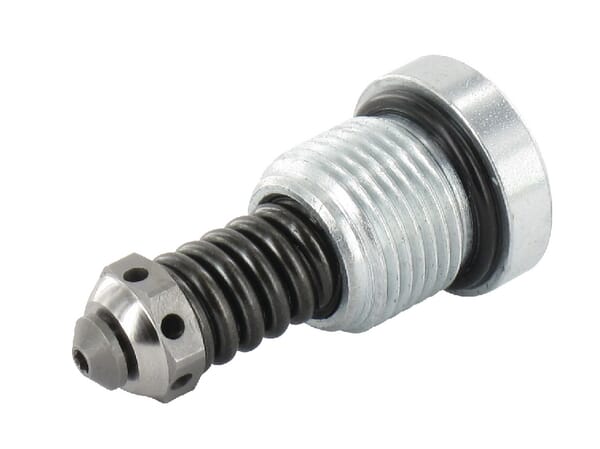

Casappa Cartridge PLC051-210Bar PLD10/ PLD920VPE210
