£332.20
excl. VAT
£398.64 incl. VAT
£398.64
incl. VAT
£332.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 55.7 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.14 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Cast iron |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 117.2 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2891 g |
| Dimensions | 119 × 106 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000340155
Casappa Seal kit Polaris 30 R PLM930AFD
£34.91 excl.
£41.89 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301281

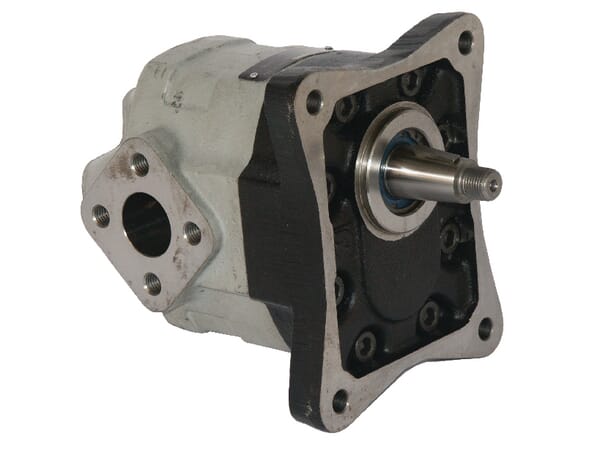

Casappa Tandem Pump KP40.87S0-85E5-LE KP4087S085E5
£1,125.95 excl.
£1,351.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340266

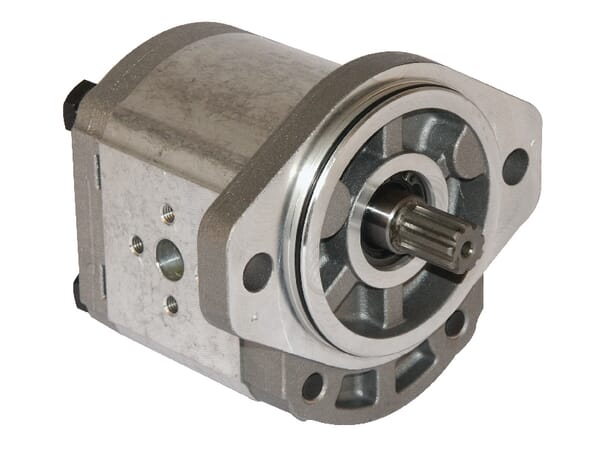

Casappa Pump PLP20.16D0-03S2-LEB/EA-N-EL FS PLP2016D003S2
£317.43 excl.
£380.92 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340308

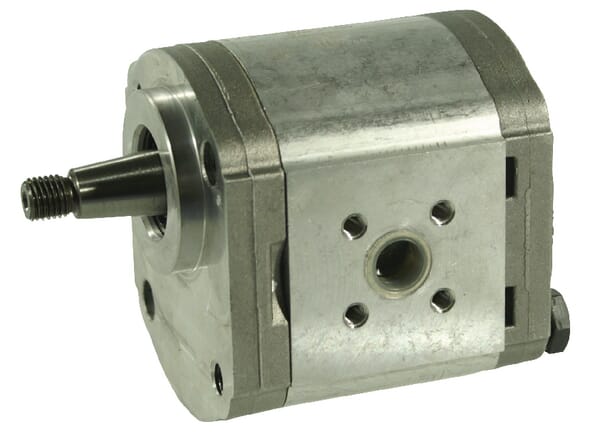

Casappa Pump PLP20.20S0-54B4-LBE/BC-N-EL FS PLP2020S054B4
£338.64 excl.
£406.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279389

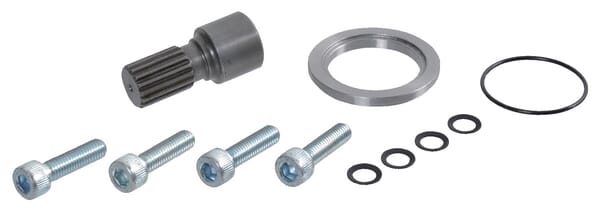

Casappa Koppelset KIT57N4 (FP30/KP-PL20) FP93057N4
