£351.43
excl. VAT
£421.72 incl. VAT
£421.72
incl. VAT
£351.43 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 60.8 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 126.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 16.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 12 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | 8719607065849 |
|---|---|
| Unit of measure | EA |
| Weight | 3167 g |
| Dimensions | 160 × 120 × 95 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340409
Casappa PUMP PLP30.27D0-04S5-LED/EB-N PLP3027D004S5E
£679.66 excl.
£815.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340391

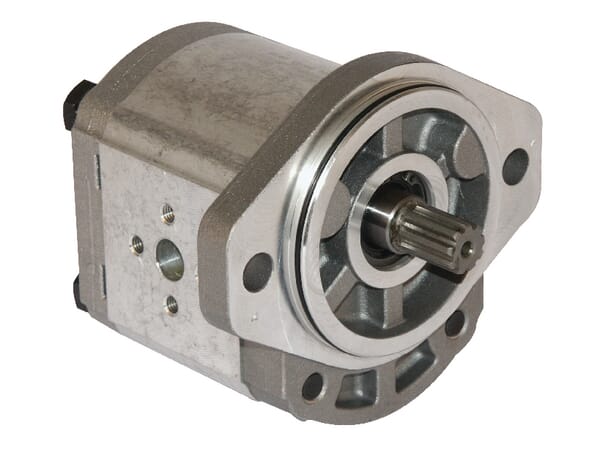

Casappa Pump PLP20.8S0-03S2-LEA/EA-N-EL FS PLP208S003S2
£345.43 excl.
£414.52 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340091
Casappa Motor PLM10.8R0-81E1-LBA/BB-N PLM108R81E1
£436.27 excl.
£523.52 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340049

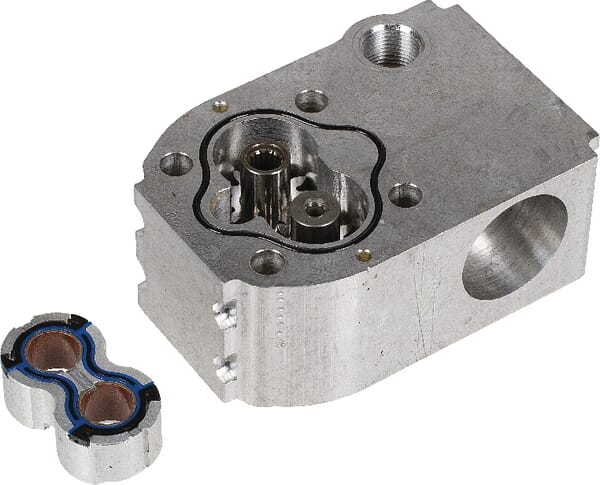

Casappa Section PLD 20.16 / GD-N-C-I PLD92016
£376.30 excl.
£451.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301273

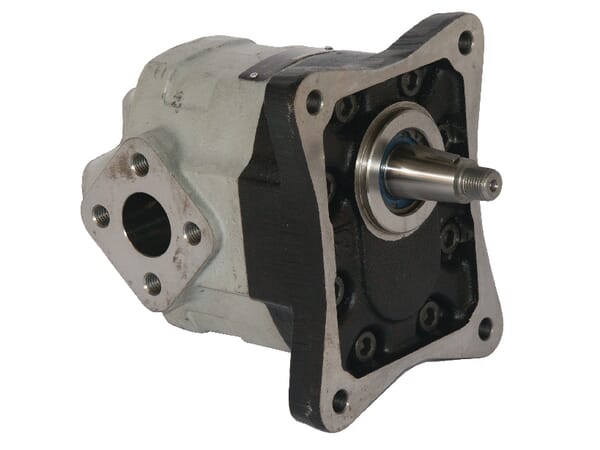

Casappa Pump KP 30.61 DO-84-E4-LEF/ED KP3061D084E4
£803.01 excl.
£963.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340540

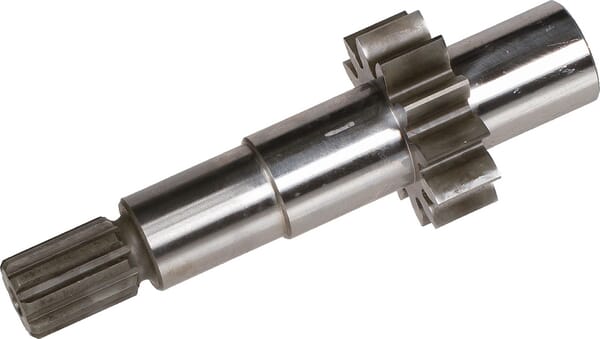

Casappa Drive shaft 08 cc 03/FS PLP920803FS
