£345.43
excl. VAT
£414.52 incl. VAT
£414.52
incl. VAT
£345.43 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Connection port to flange distance | 48.2 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 8.26 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | S2 |
| Flange type norm | SAE-A |
| Housing length | 100 mm |
| Housing material | Aluminium |
| Main port size code | 1G08 |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 82.55 mm |
| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 1G08 |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 15.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 03 |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2430 g |
| Dimensions | 134 × 134 × 114 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340202

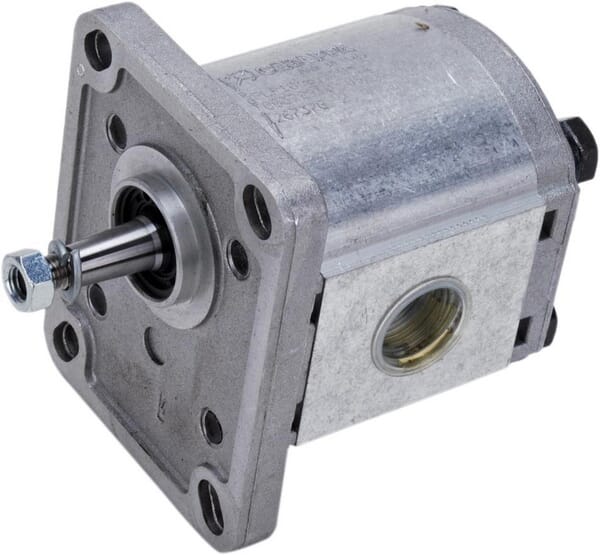

Casappa Pump PLP10.6,3 D081-E1-LGD/GD-N PLP106D081E1G
£221.39 excl.
£265.67 incl.
In stock
Expected to ship on Monday 21 September
BPA000340653
Casappa Bolt set M12X125 PLP930M12125
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340659
Casappa Tie bolts polaris 30 M12x225 PLP930M12225
£38.90 excl.
£46.68 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340549

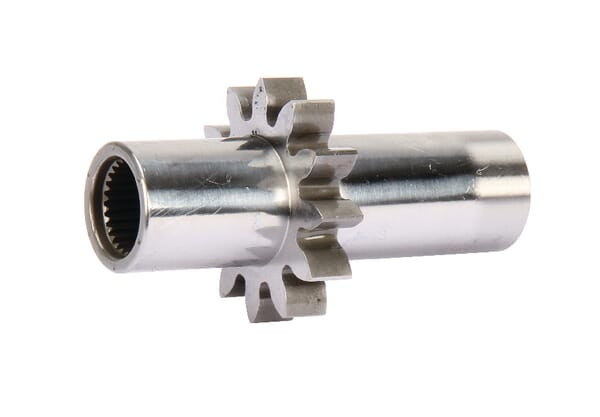

Casappa Shaft PLP20.4/III/FS-L se PLP920AS04
£126.63 excl.
£151.96 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340217

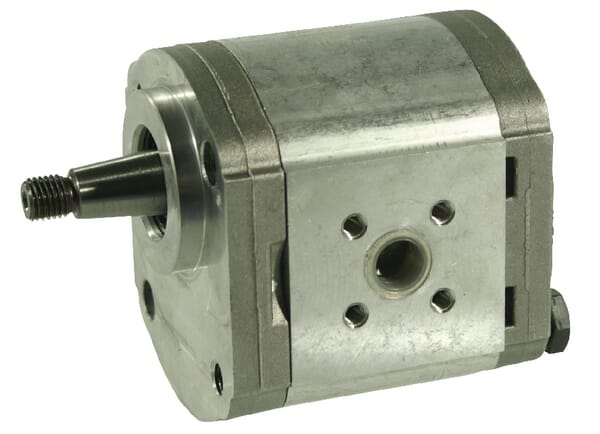

Casappa Pump PLP20.11,2D0-54B4-LBE/BC-N-EL FS PLP2011D054B4
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279365
Casappa Pump FP40.63D0-16Z0-LGF/GE-xx FP4063DI16Z0
£988.20 excl.
£1,185.84 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000343115
gopart Cross journal diameter 30.2x79.4mm 50 PTO950CJGP
£15.62 excl.
£18.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000270938

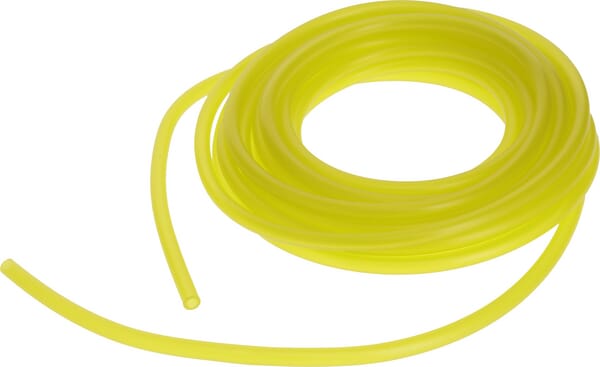

Kramp Fuel hose 5x8mm 7.5m FGP011689
