£365.01
excl. VAT
£438.01 incl. VAT
£438.01
incl. VAT
£365.01 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

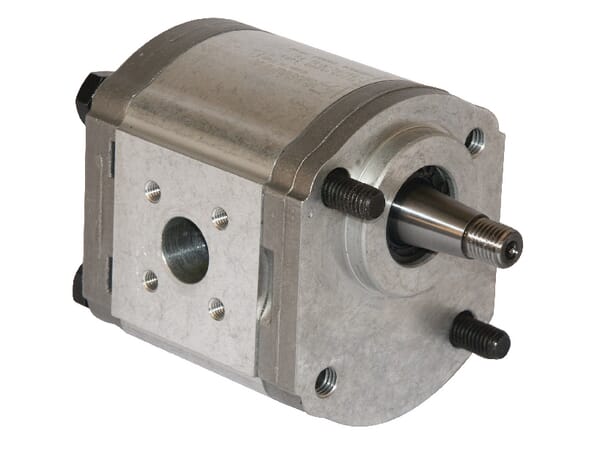

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Connection port to flange distance | 60.8 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 126.3 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |

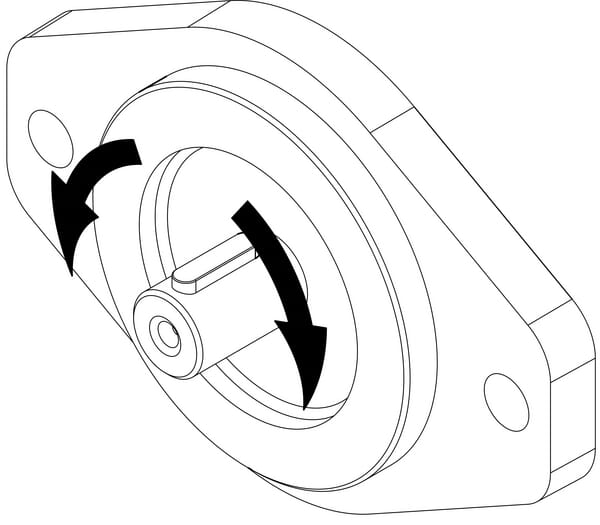

| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3300 g |
| Dimensions | 170 × 120 × 93 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340180

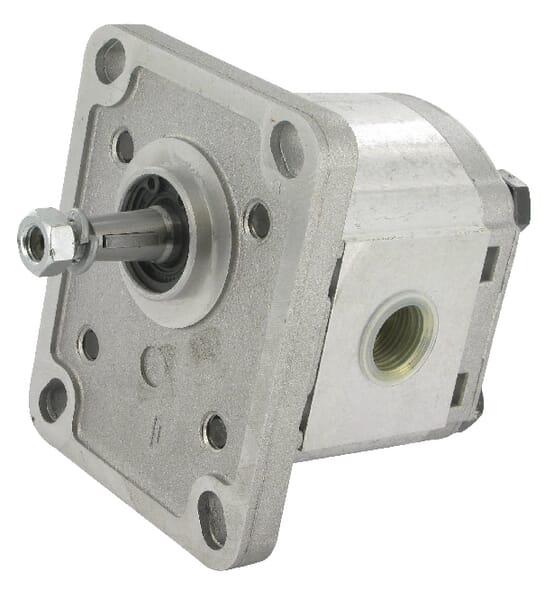

Casappa Pump PLP10.2.D0-81E1-LGC/GC-N- PLP102D081E1G
£205.55 excl.
£246.66 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340536

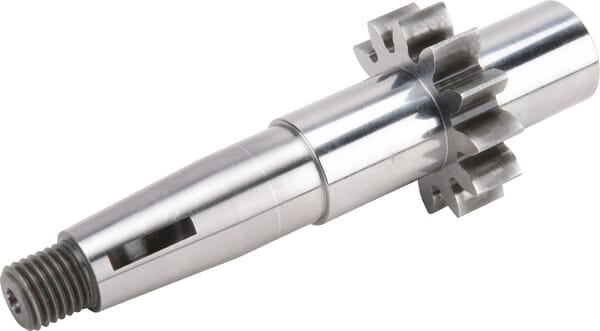

Casappa Drive shaft 06 cc 82/FS PLP9206382FS
£115.84 excl.
£139.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340151

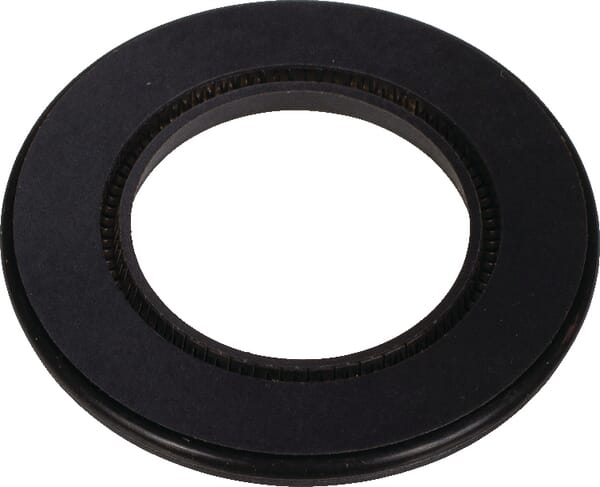

Casappa Seal ring 24 x 40 (HP) PLM93020
£69.51 excl.
£83.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340257

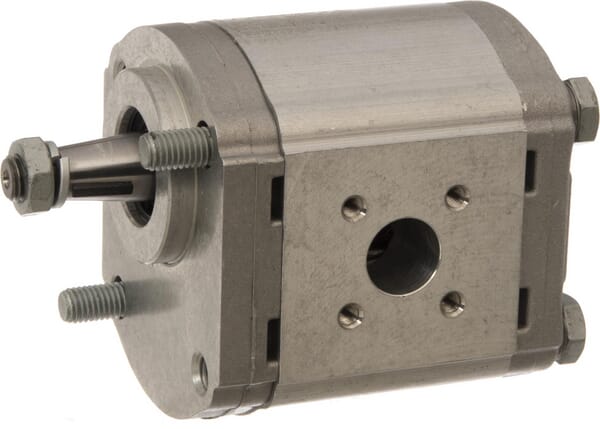

Casappa Pump PLP20.14S0-54B4-LBE/BC-N-EL FS PLP2014S054B4
£338.64 excl.
£406.37 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340043

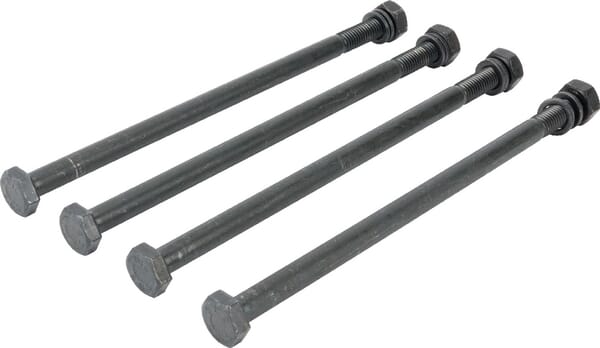

Casappa Bolt set M8x145 (PLD10/2) PLD910M8145
