£369.47
excl. VAT
£443.36 incl. VAT
£443.36
incl. VAT
£369.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 58 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.42 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Cast iron |
| Flange code | B5 |
| Flange type norm | German |
| Housing length | 123.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 210 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 500 r/min |
| Mounting diameter | 50 mm |
| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3062 g |
| Dimensions | 180 × 111 × 106 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340376
Casappa Pump PLP20.6,3S0-54B5-LBE/BC-N PLP206S054B5
£322.07 excl.
£386.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000340650
Casappa Washer B14 DIN 128 Dacromet PLP930B14
£0.11 excl.
£0.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340476
Casappa Tie bolts Polaris 10 M8x120 PLP910M8120
£32.71 excl.
£39.25 incl.
In stock
Expected to ship on Monday 21 September
BPA000340490
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340370
Casappa Tandem Pump PLP20.6,3-D0-86-S6-LEA/EA-N-I-FS PLP206DII
£275.27 excl.
£330.32 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340019

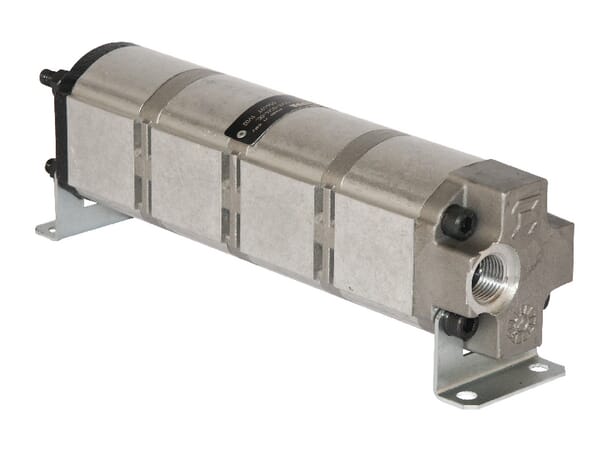

Casappa Distribution Motor PLD10/2/CS-GD/4-G PLD1024VPE180
£1,060.38 excl.
£1,272.46 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000280387

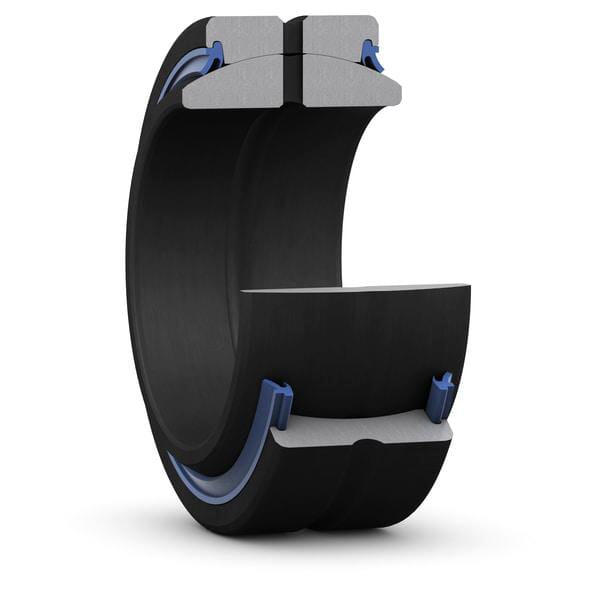

SKF Radial spherical plain bearing 120x180x85/70mm GE120ES2RS
