£324.06
excl. VAT
£388.87 incl. VAT
£388.87
incl. VAT
£324.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| BConnection port to flange distance | 44.5 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 4.95 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B2 |
| Flange type norm | German |
| Housing length | 93.8 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 80 mm |
| Mounting holes horizontal distance | 72 mm |
| Mounting holes vertical distance | 100 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08

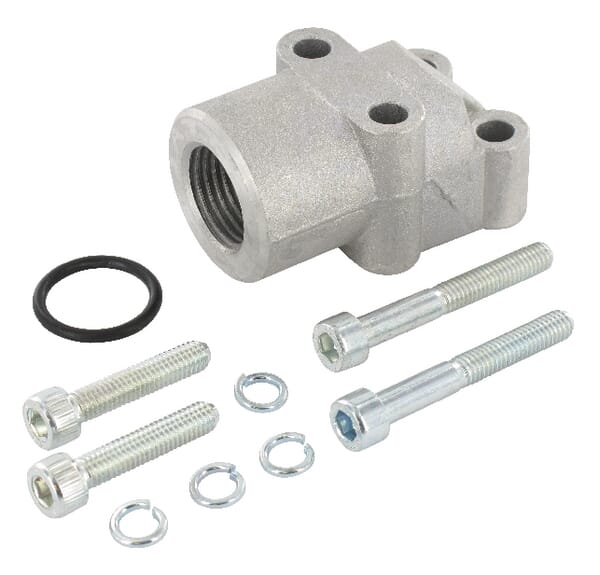

OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12

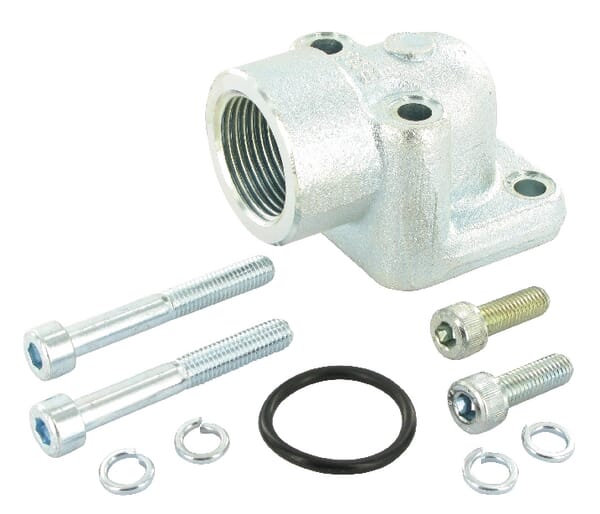

OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026
Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2253 g |
| Dimensions | 134 × 116 × 89 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340651
Casappa Mountingkit 52Q6 Polaris 30/10 PLP930KIT52Q6
£194.22 excl.
£233.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301001
Casappa Motor KM 20.4 RO-82E2-LEA/EA KM2004R82E2
£512.05 excl.
£614.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340594
Casappa Bolt 20 M10x120 Polaris PLP920M10120
£17.65 excl.
£21.18 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340425
Casappa Tandem Pump PLP30.38-D0-65-M6-LED/EB-N-I-FS PLP3038DII
£486.76 excl.
£584.11 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301261
Casappa Pump LEB/EA KP206D082E2
£376.09 excl.
£451.31 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279358

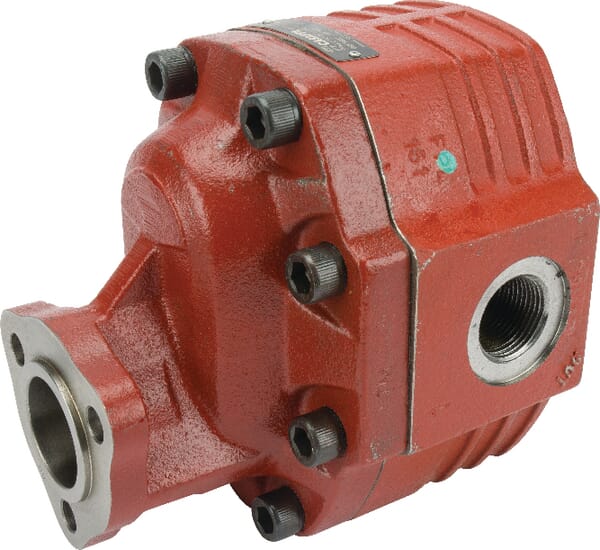

Casappa Formula 40 gear pump FP40133S
