£315.64
excl. VAT
£378.77 incl. VAT
£378.77
incl. VAT
£315.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

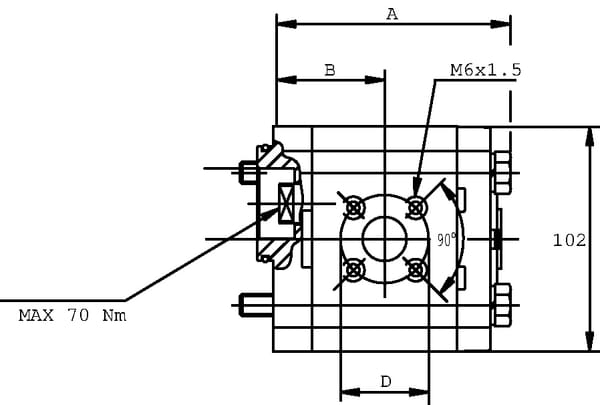

| BConnection port to flange distance | 43.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 4.95 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 92.7 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |

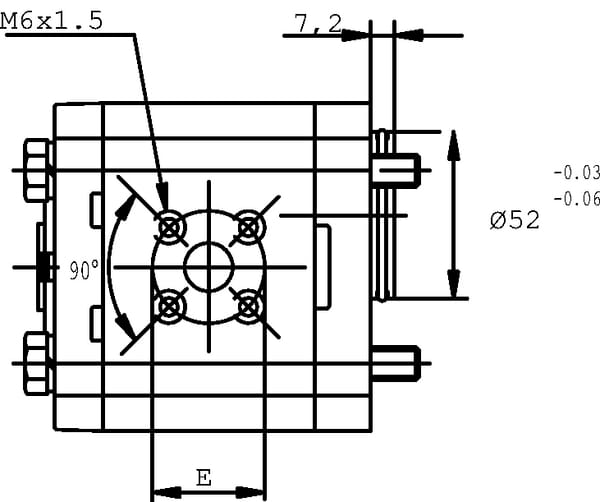

| Mounting diameter | 52 mm |

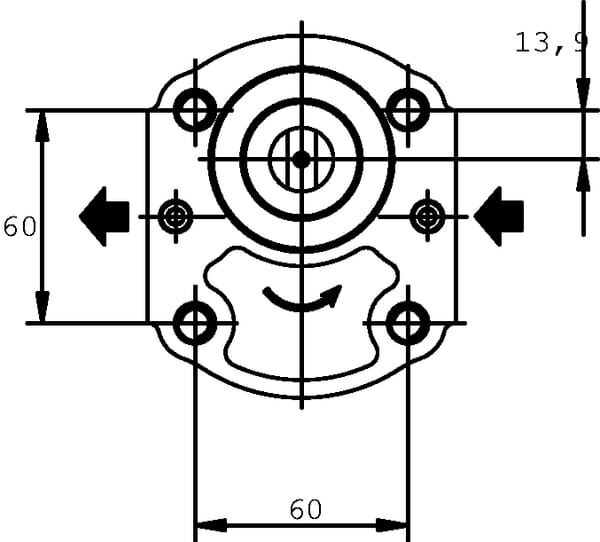

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |

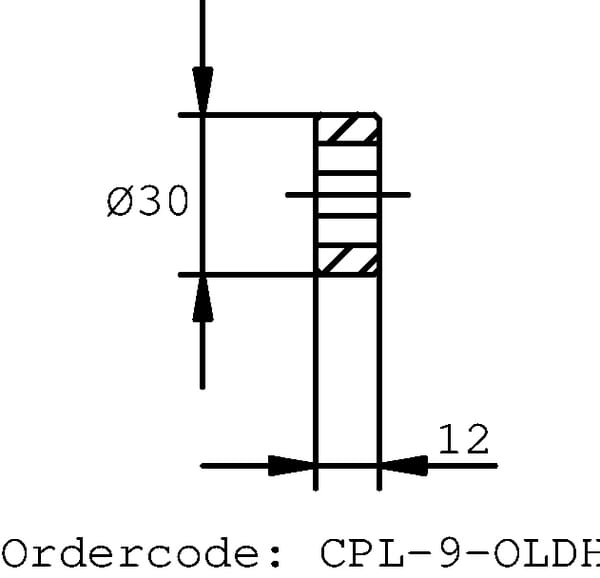

| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2168 g |
| Dimensions | 108 × 104 × 88 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340517

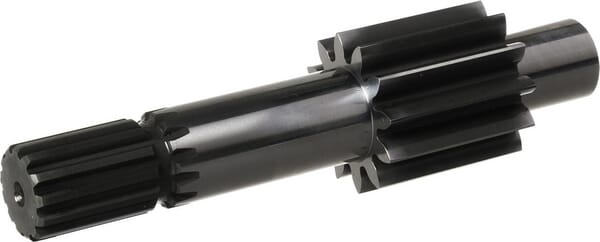

Casappa Drive Shaft 25 cc 04/FS PLP9202504FS
£186.50 excl.
£223.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

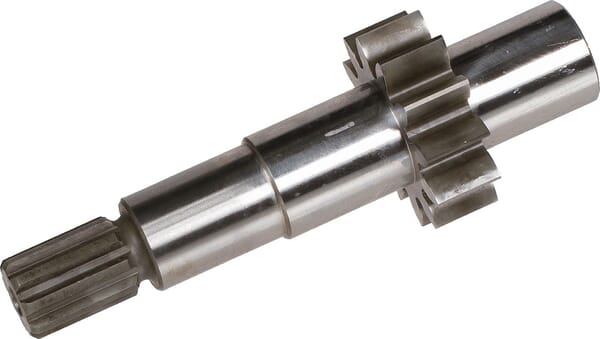

BPA000340540
Casappa Drive shaft 08 cc 03/FS PLP920803FS
£136.68 excl.
£164.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

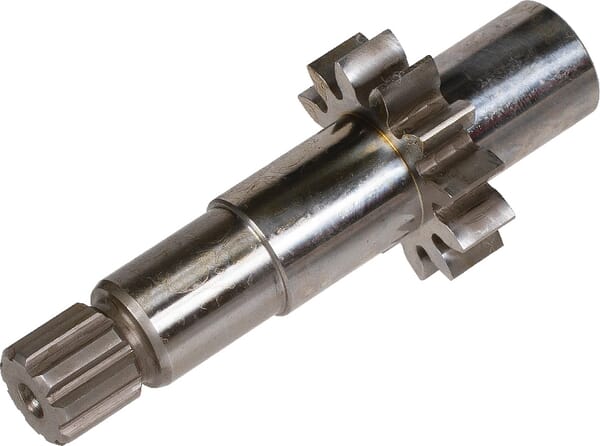

BPA000340534
Casappa Drive shaft 06 cc 12/FS PLP9206312FS
£134.54 excl.
£161.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340250

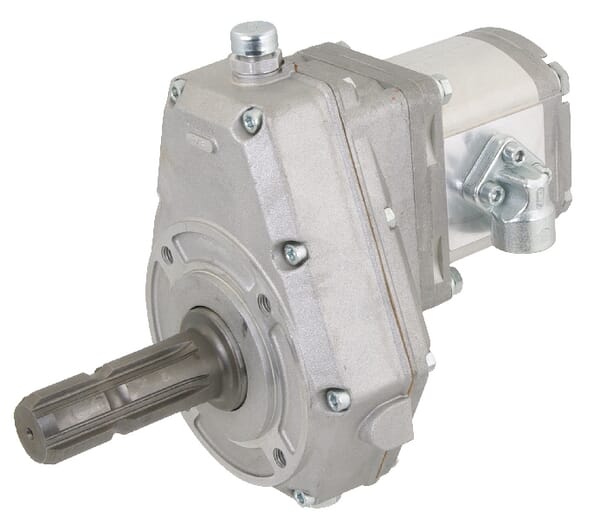

Casappa Gearbox with pump group 2 14cc PLP2014GBF20S1KIT
£527.29 excl.
£632.75 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301009

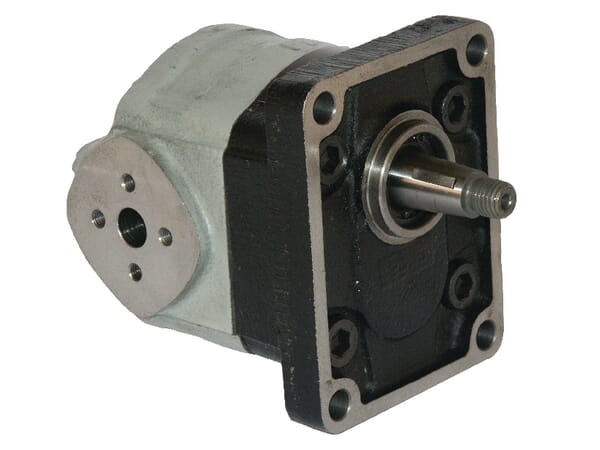

Casappa Motor KM 20.14 RO-82E2-LEB/EA KM2014R82E2
