£502.53
excl. VAT
£603.04 incl. VAT
£603.04
incl. VAT
£502.53 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection thread diameter | 1 Inch |
|---|---|
| Cooling medium flow type | Suction |
| Depth | 175 mm |
| Fan outside diameter | 280 mm |
| Includes | Aluminium radiator, Support, Impeller/electric motor, voltage according to version, Temperature switch, Connector for connecting temperature switch/DC motor |
| Insulation class | 68 |
| Long description | Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50°C thermostat. A controlled oil temperature increases the efficiency and lifetime of components in the system. |
| Material | Plastic, Aluminium, Steel |

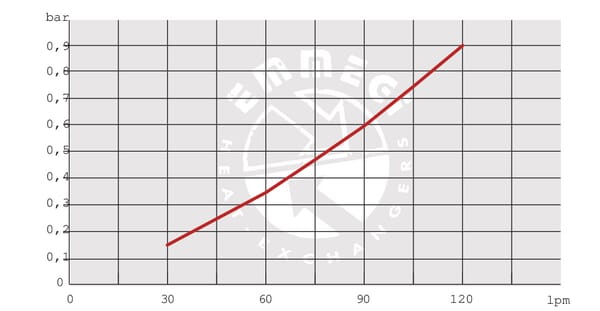

| Max. working flow | 110 l/min |
| Max. working pressure | 20 BAR |
| Noise level | 72 dB(A) |
| Nominal voltage | 12 V |
| Product details | Temperature switch 38-50°C, Maximum temperature 120°C, The motor must be switched via a relay |
| Pros | Compact flush mounting, Complete unit, Increased efficiency, Long component service life |
| Technical info | Air oil-coolers are applied to improve heat exchange between oil and the environment. The coolers are supplied standard with a 40 - 48 °C thermostat. |
| Thermostat working temperature | 38 - 50 |
| Unit | Each |
| Weight | 9.6 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11500 g |
| Dimensions | 420 × 400 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000327347

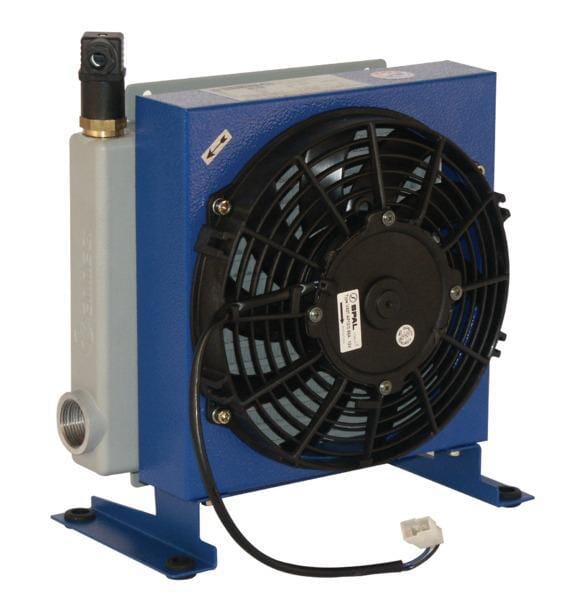

Emmegi Oil-cooler (24V) 38-50'C 2015K-24-2-01 OK2015K24201
£385.18 excl.
£462.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327441

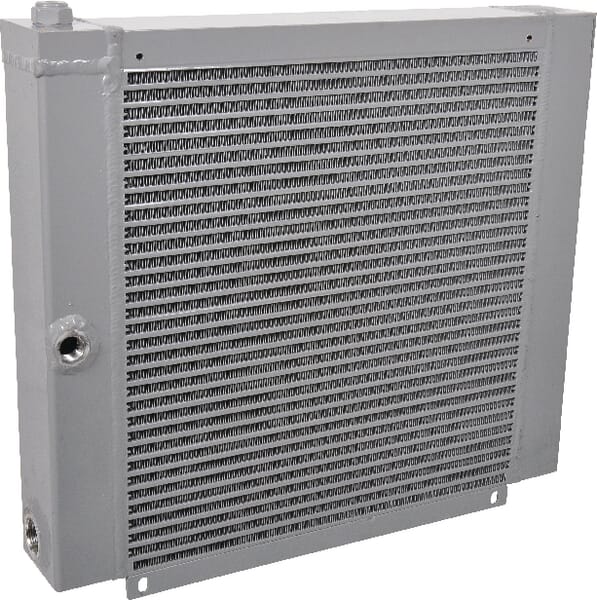

Emmegi Radiator 2MV-5 bypass OK92MV5
£1,532.27 excl.
£1,838.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327456

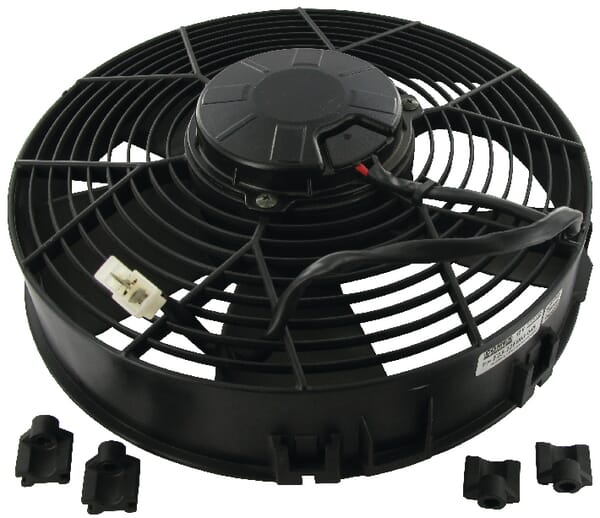

Emmegi MOTOR/WAAI/ROOST HP18/24 12VDC OK9HPA182430
£373.70 excl.
£448.44 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327412

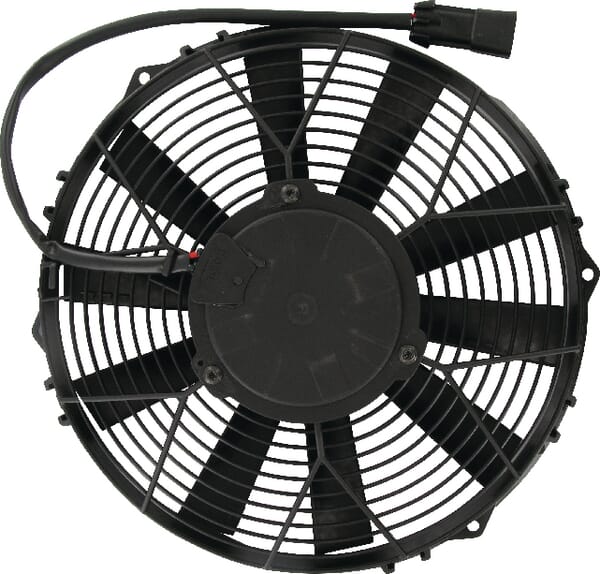

Emmegi Cooling fan 2024-24VDC 280mm OK9202435N
£215.11 excl.
£258.13 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000327371
Emmegi Oil-cooler (24V) 48-60'C 2040 OK2040K24301
£1,041.02 excl.
£1,249.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000327481

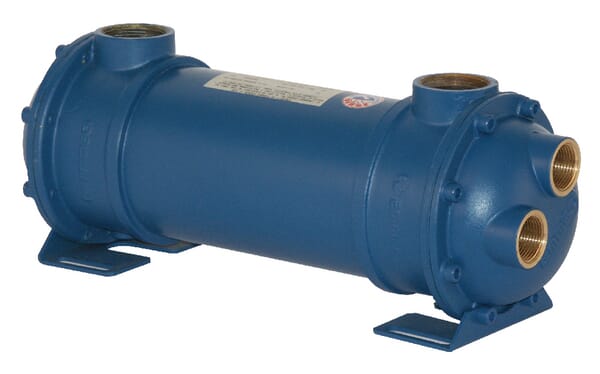

Emmegi Oil cooler MG- 80- 310-4 OKMG800310
