£323.51
excl. VAT
£388.21 incl. VAT
£388.21
incl. VAT
£323.51 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

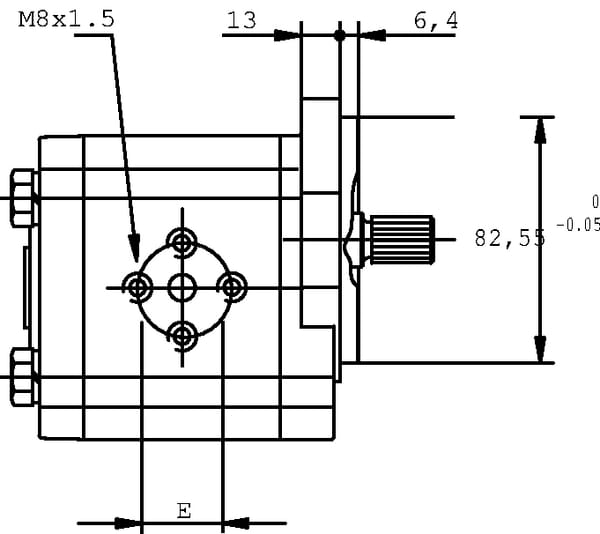

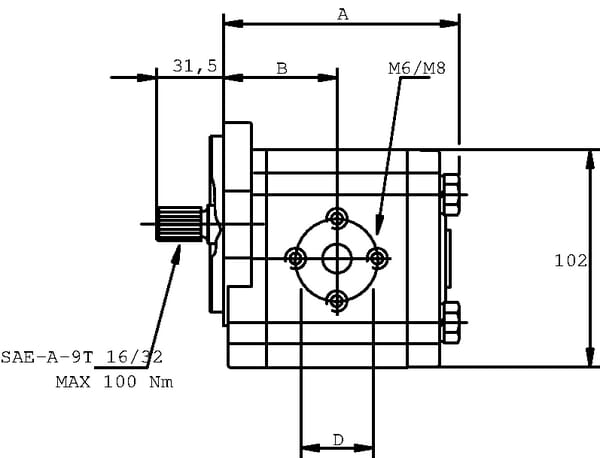

| AHousing length | 97.5 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 47 mm |
| Benefits | Wide range of applications, Can be used under tough environmental conditions |
| CMounting diameter | 82.55 mm |
| Details | Various connection options, Outer housing pivoted |

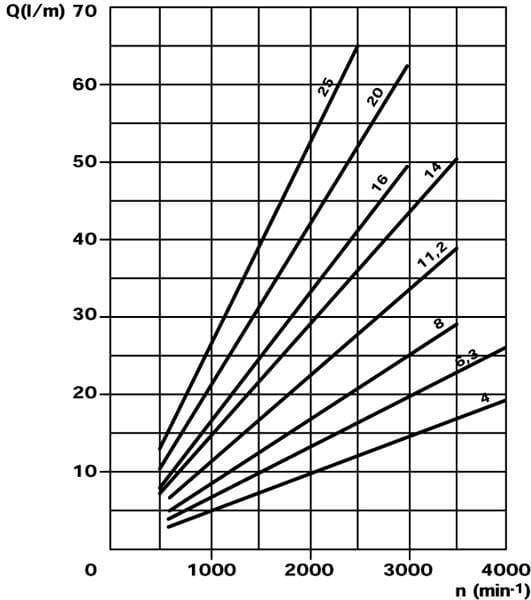

| Displacement | 6.61 cm³/rev |
| DSuction port bolts circle diameter | 30 mm |
| EPressure port bolts circle diameter | 30 mm |
| Flange and back cover material | Aluminium |
| Flange code | S2 |
| Flange type norm | SAE-A |
| Housing material | Aluminium |
| Main port size code | 1G08 |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |

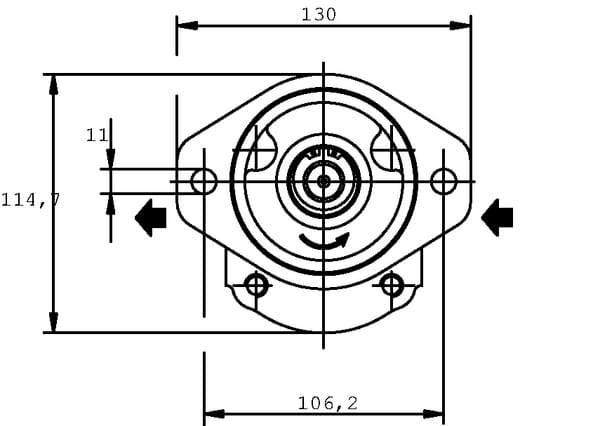

| Mounting holes horizontal distance | 106.2 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port size code | 1G08 |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 15.5 mm |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 03 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1G08

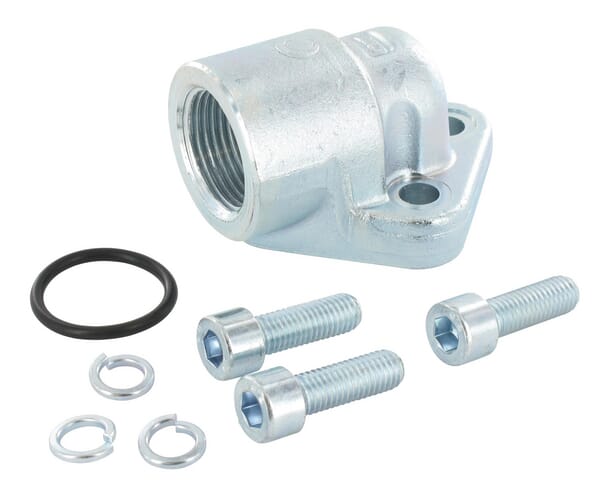

OMT Pump flange 1/2 1G08
£10.71 excl.
£12.85 incl.
OR7592178P010
Kramp O-ring 75.92x1.78mm 70 shore 10x OR7592178P010
£3.56 excl.
£4.27 incl.
PLP92010
Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92035
Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2
Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2353 g |
| Dimensions | 162 × 128 × 116 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340296
Casappa Pump PLP20.20D0-54B5-LBE/BC-N- PLP2020D054B5
£320.38 excl.
£384.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301297

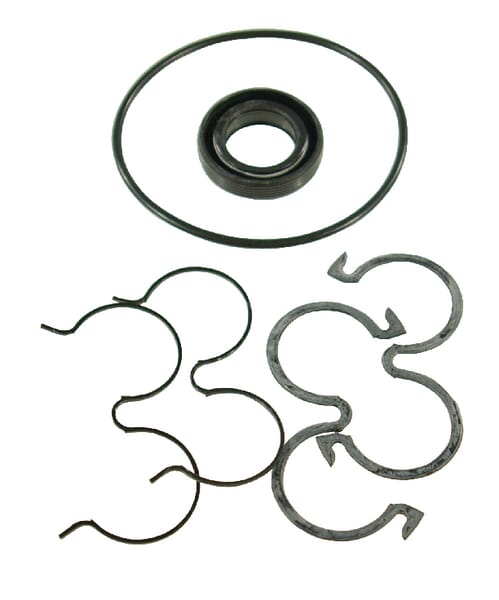

Casappa Seal kit Kappa 30-84E4 KP93084E4
£29.96 excl.
£35.95 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340032

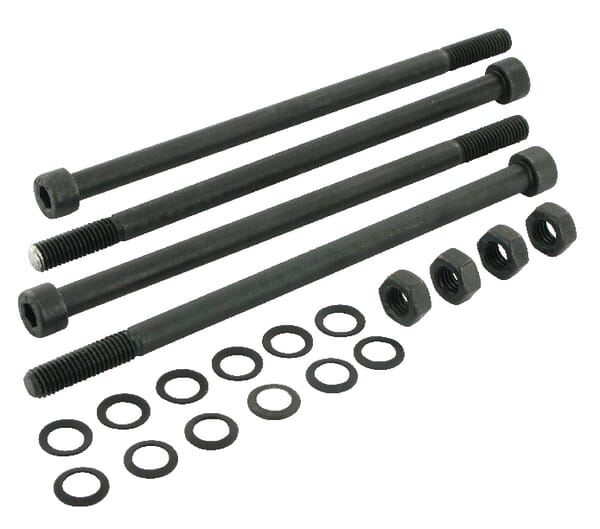

Casappa Tie bolts kit PLD 10/2 M8x155 PLD9102BEV
£19.22 excl.
£23.06 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340258

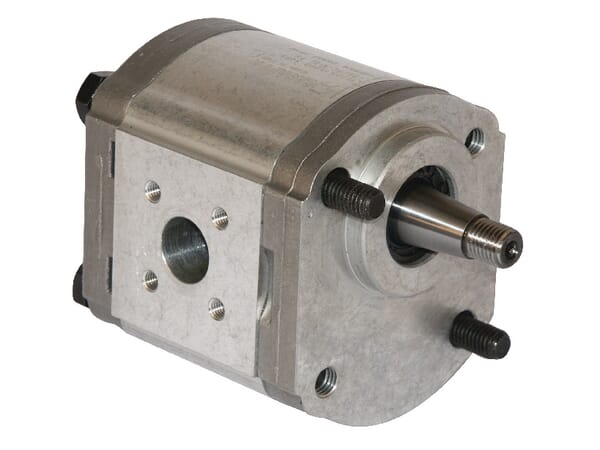

Casappa Pump PLP20.14S0-54B5-LBE/BC-N- PLP2014S054B5
£325.11 excl.
£390.13 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000301007

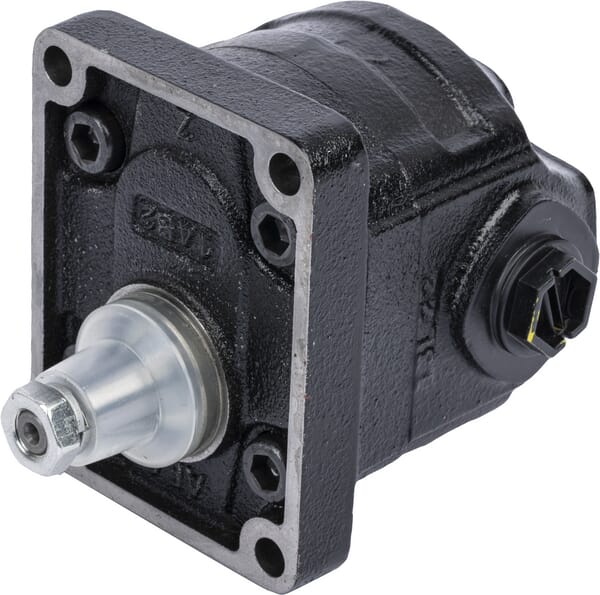

Casappa Motor KM20.11,2R0-82E2-LGD/GD-N KM2011R82E2G
£484.57 excl.
£581.48 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340301

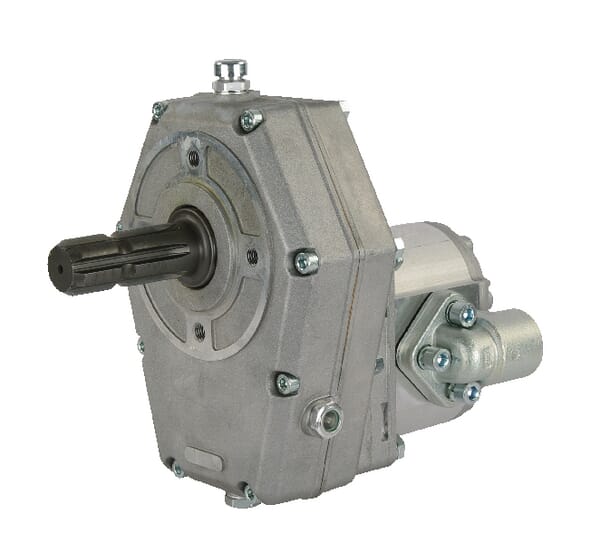

Casappa Gearbox with pump group 2 20cc PLP2020GBF20135KIT
