£316.24
excl. VAT
£379.49 incl. VAT
£379.49
incl. VAT
£316.24 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

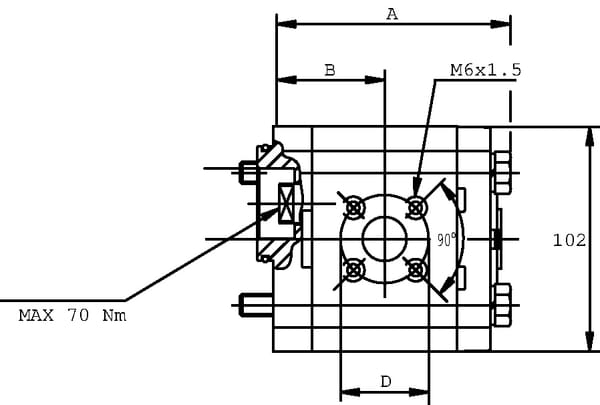

| BConnection port to flange distance | 44.7 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 6.61 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange and back cover material | Aluminium |
| Flange code | B6 |
| Flange type norm | German |
| Housing length | 95.2 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |

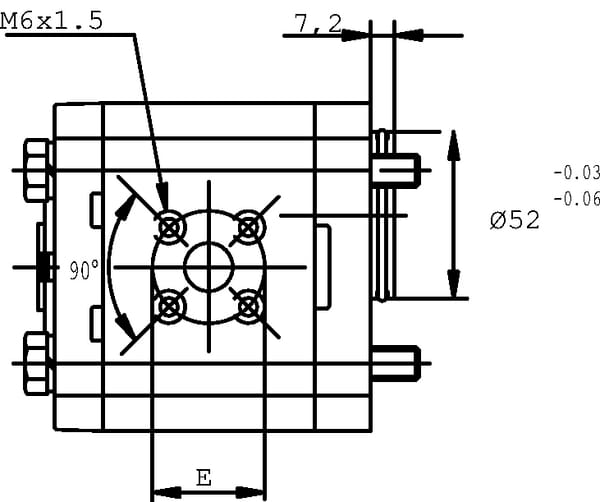

| Mounting diameter | 52 mm |

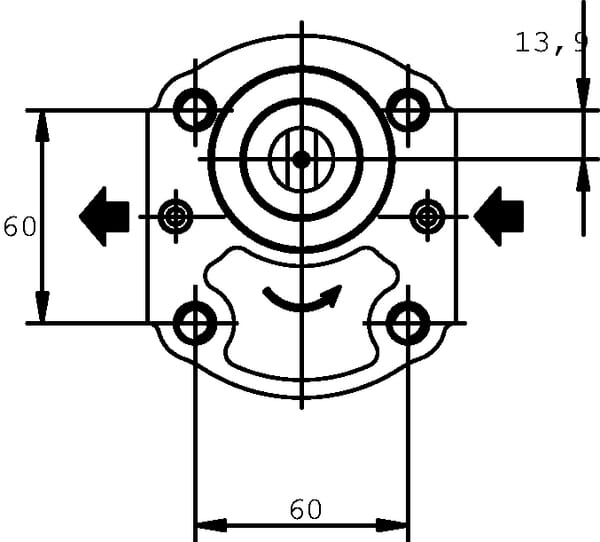

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 18 mm |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |

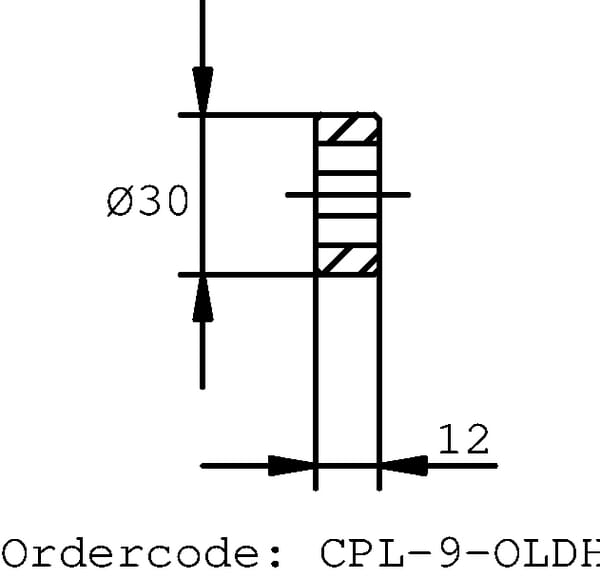

| Shaft type | Oldham (Tang) |
| Shaft type code | 95 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2310 g |
| Dimensions | 223 × 177 × 116 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340492
Casappa Drive shaft 11 cc 03/FS PLP92011203FS
£103.08 excl.
£123.70 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301267

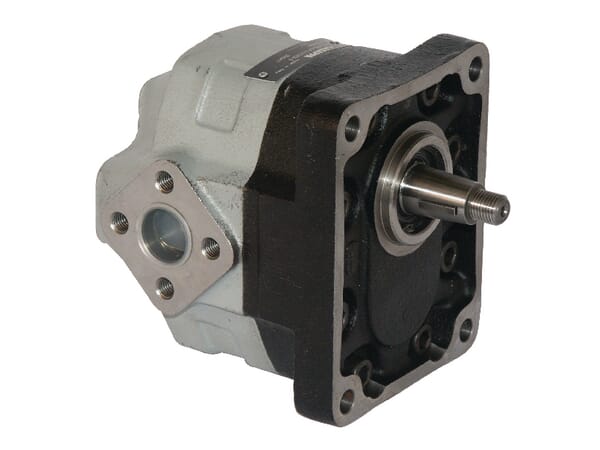

Casappa Pump KP 30.27 SO-83-E3 KP3027S083E3
£671.40 excl.
£805.68 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340256
Casappa Pump PLP20.14S0-54B2-LBE/BC-N-EL FS PLP2014S054B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000365469
Casappa Support bearing F-ZF SR9
£213.76 excl.
£256.51 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340025

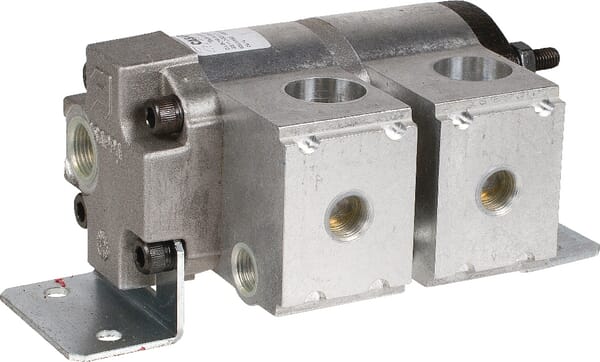

Casappa Rotary flow divider Polaris 20 PLD20211VPE
£1,273.99 excl.
£1,528.79 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340341

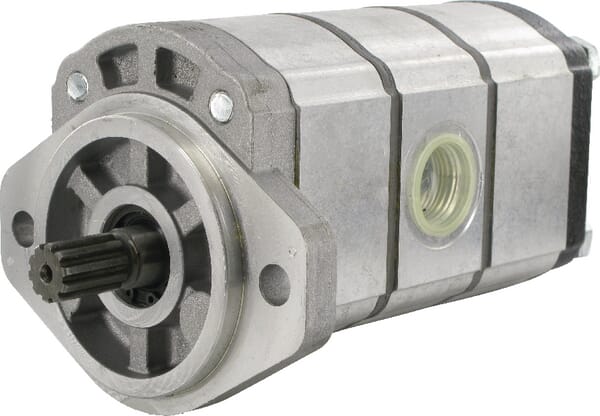

Casappa Triple pump PLP20.4-01S1-LRD/2 PLP204206206
