£583.77
excl. VAT
£700.52 incl. VAT
£700.52
incl. VAT
£583.77 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

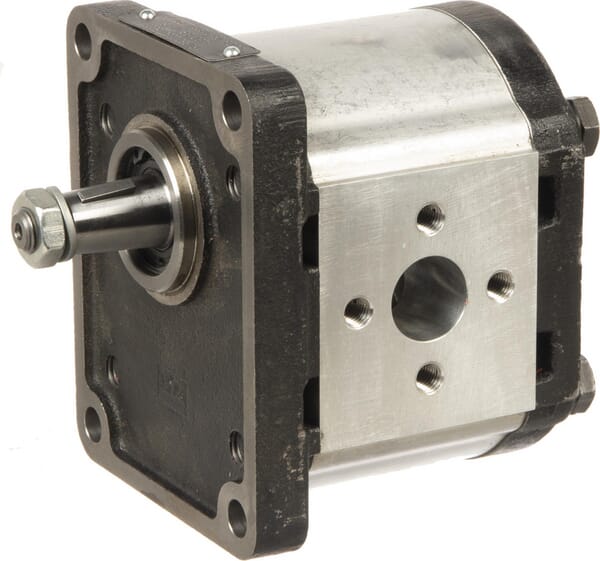

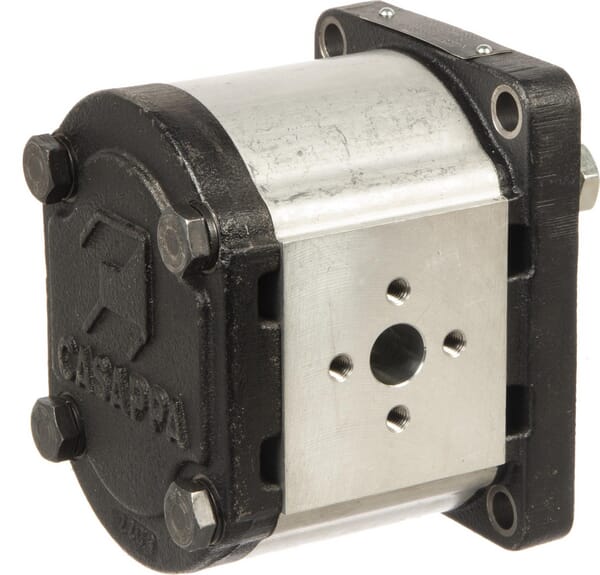

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Connection port to flange distance | 63 mm |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 21.99 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing length | 130 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8596 g |
| Dimensions | 240 × 225 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340217
Casappa Pump PLP20.11,2D0-54B4-LBE/BC-N-EL FS PLP2011D054B4
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340545

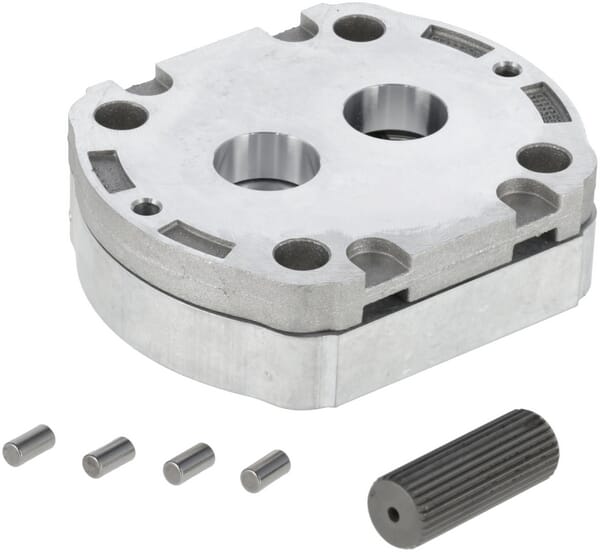

Casappa Mountingkit 86Z6 Polaris 20/20 PLP92086Z6
£151.43 excl.
£181.72 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340183
Casappa Rear section PLP10.2 D0-88V6-LBE/BA-N-I FS PLP102DII
£202.78 excl.
£243.34 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340353

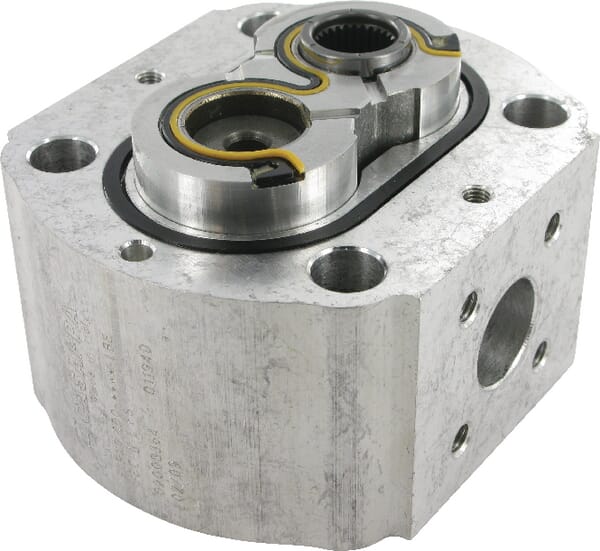

Casappa Tandem Pump PLP20.4-D0-86-S6-LBE/BC-N-I-FS PLP204DIIB
£301.52 excl.
£361.82 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340020

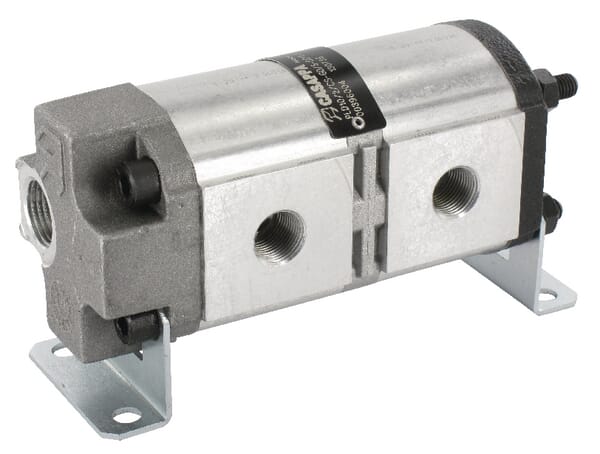

Casappa Rotary flow divider Polaris 10 PLD1025
£730.21 excl.
£876.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000285984

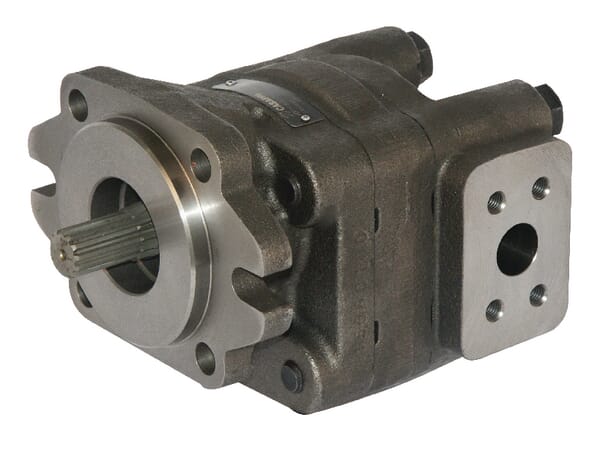

Casappa Pump HDP30.34 D0-04S3 LMC/MB-N HDP3034D
