£322.07
excl. VAT
£386.48 incl. VAT
£386.48
incl. VAT
£322.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

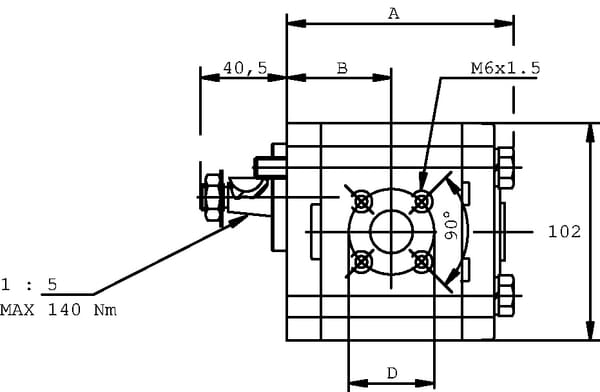

| BConnection port to flange distance | 46.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

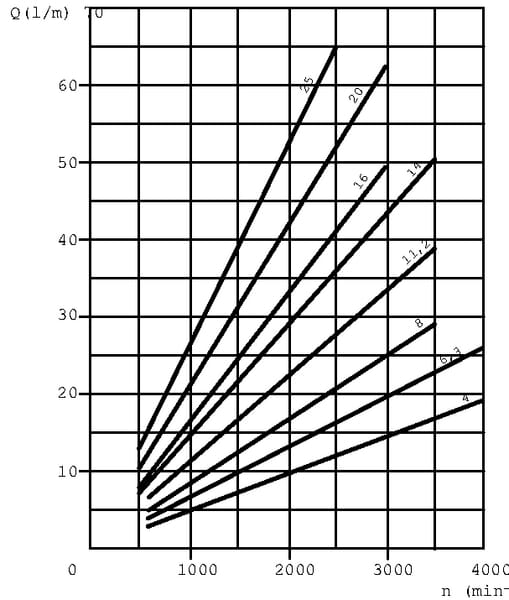

| Displacement | 11.23 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 100.5 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |

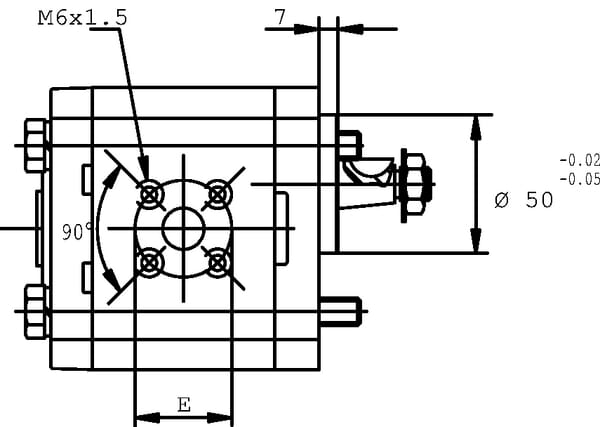

| Mounting diameter | 50 mm |

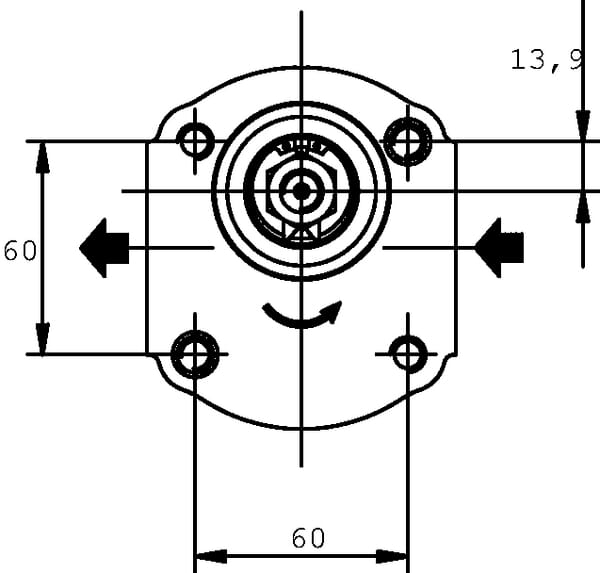

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Tandem shaft connection | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
1GB08
OMT Flange angled 1/2 1GB08
£10.48 excl.
£12.58 incl.
2GB12
OMT Flange angled 3/4 2GB12
£16.63 excl.
£19.96 incl.
PLP92010

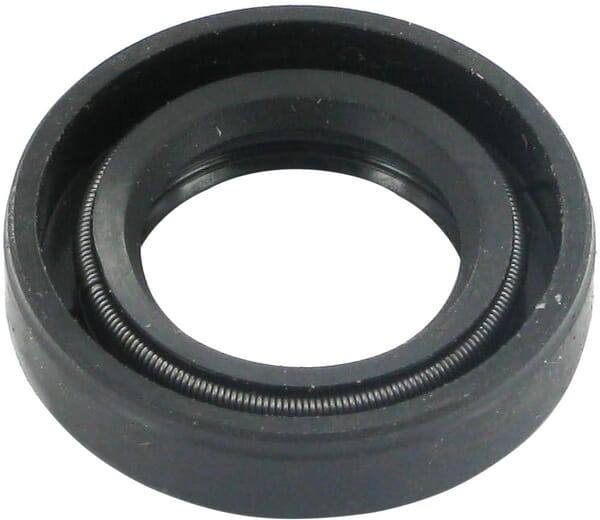

Casappa Seal 18X30 GR.2 PLP92010
£4.97 excl.
£5.96 incl.
PLP92026

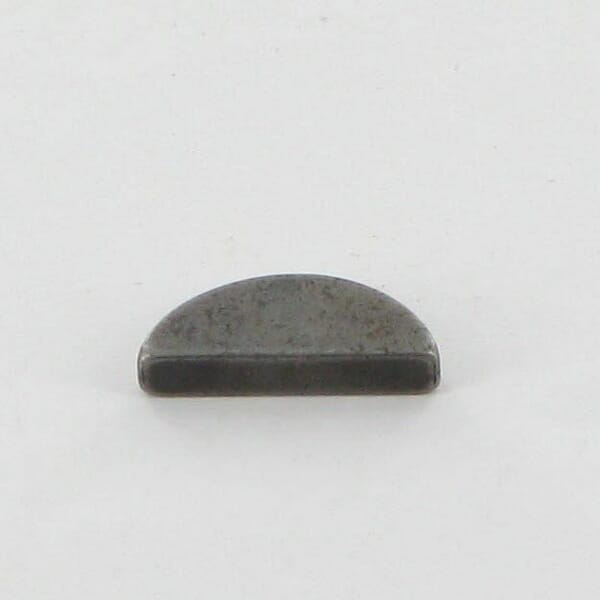

Casappa Woodruff key PLP/PLM 20-54 PLP92026
£1.27 excl.
£1.52 incl.
PLP92035

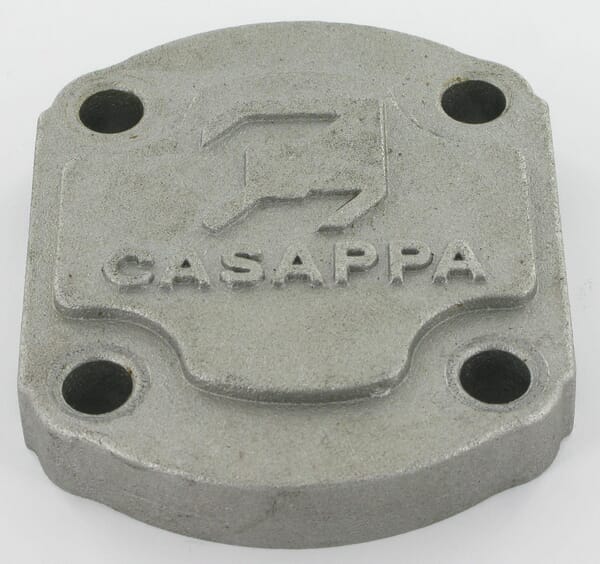

Casappa Rear cap PLP 20 EL PLP92035
£32.19 excl.
£38.63 incl.
PLP92082E2

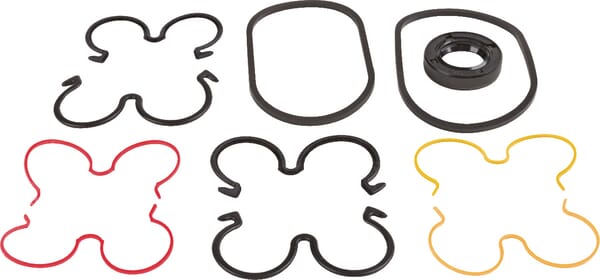

Casappa Seal kit 20-82 E2 PLP92082E2
£24.80 excl.
£29.76 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2538 g |
| Dimensions | 205 × 160 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340120
Casappa Motor PLM30.27R0-83E3-LEB/ED-N PLM3027R83E3
£528.67 excl.
£634.40 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340197

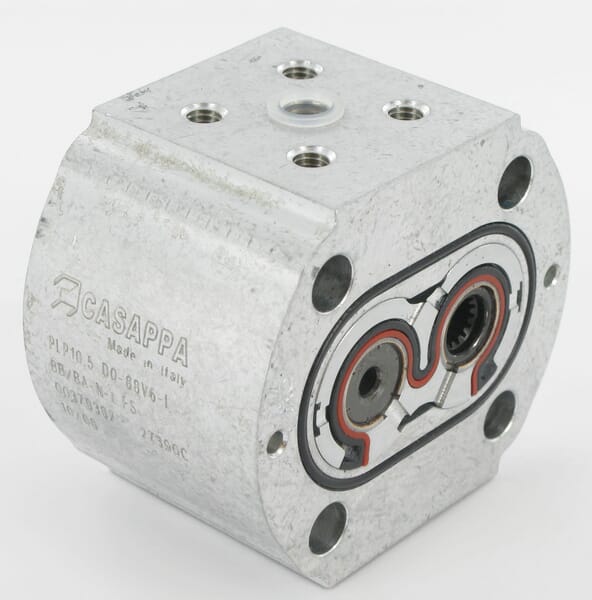

Casappa Rear section PLP10.5 D0-88V6-LBB/BA-N-I FS PLP105DII
£229.00 excl.
£274.80 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340433

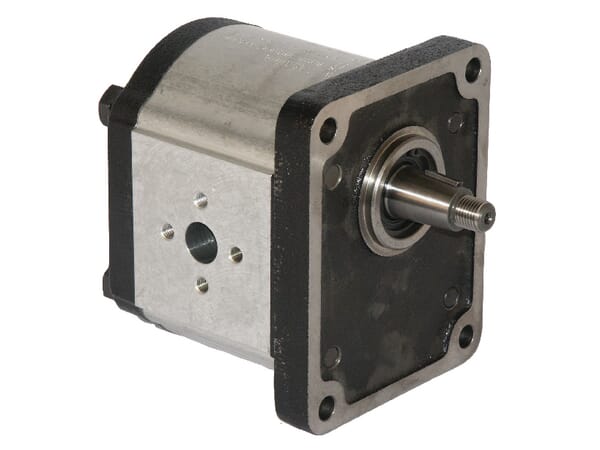

Casappa Pump PLP30.43D0-83E3-LED/EB-N-FS PLP3043D083E3
£555.38 excl.
£666.46 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340236

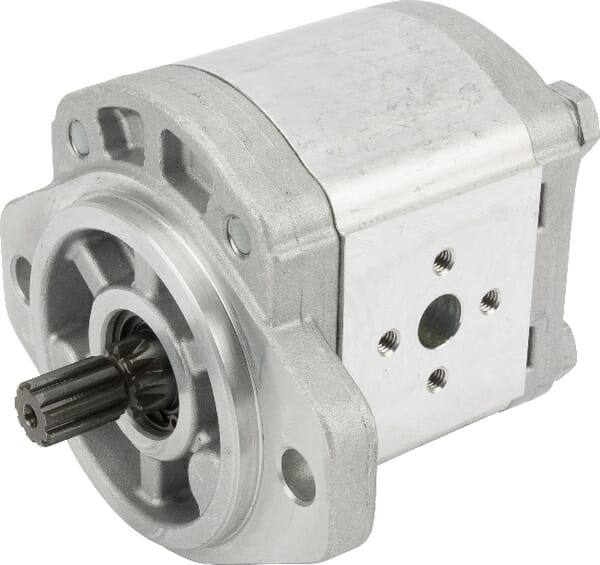

Casappa Pump PLP20.14D0-03S1-LBE/BC-N-EL PLP2014D003S1LBEBC
£244.06 excl.
£292.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340402

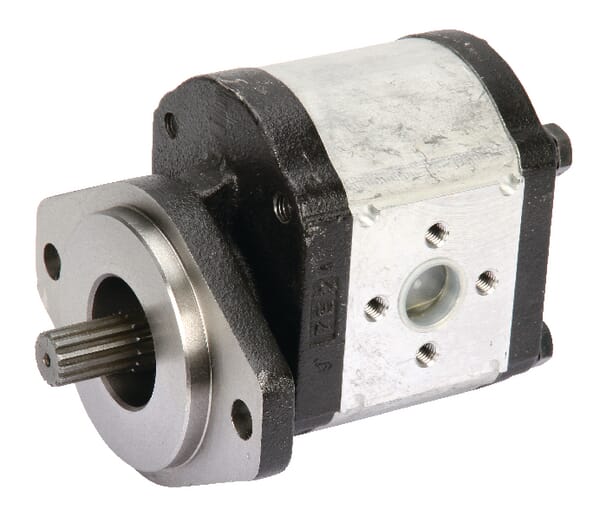

Casappa Pump PLP30.22D0-04S5-LEF/ED-N-FS PLP3022D004S5
£496.83 excl.
£596.20 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340344

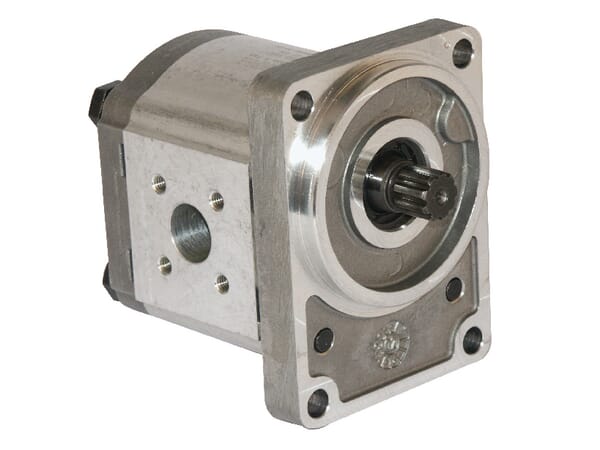

Casappa Pump PLP20.4D0-12B2-LBE/BC-N-EL FS PLP204D012B2
