£595.30
excl. VAT
£714.36 incl. VAT
£714.36
incl. VAT
£595.30 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Connection port to flange distance | 40.5 mm |
|---|---|
| Displacement | 26.7 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 109 mm |
| Housing material | Aluminium |
| Main port size code | 3GB16 |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

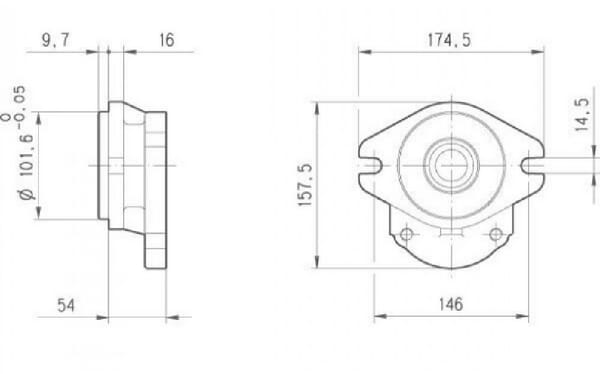

| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 55 mm |
| Pressure port size code | 3GB12 |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

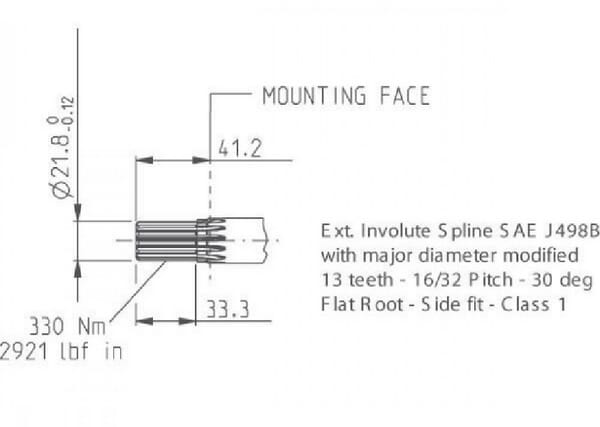

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 55 mm |
| Unit | Each |

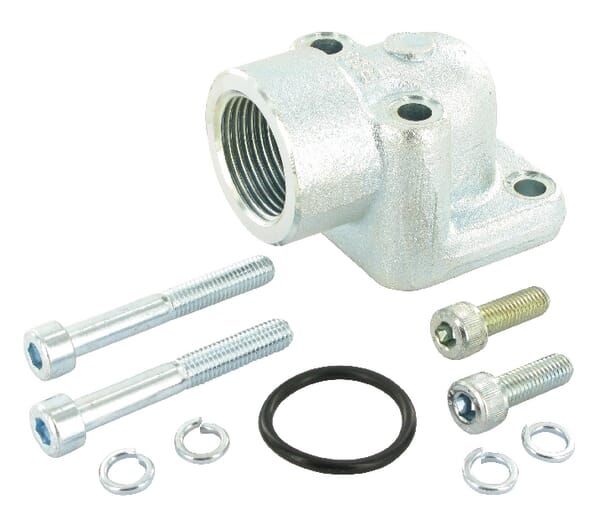

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10900 g |
| Dimensions | 215 × 190 × 175 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340263
Casappa Twin pump PLP20.16/20.16 DO-82E PLP20162016D
£736.11 excl.
£883.33 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

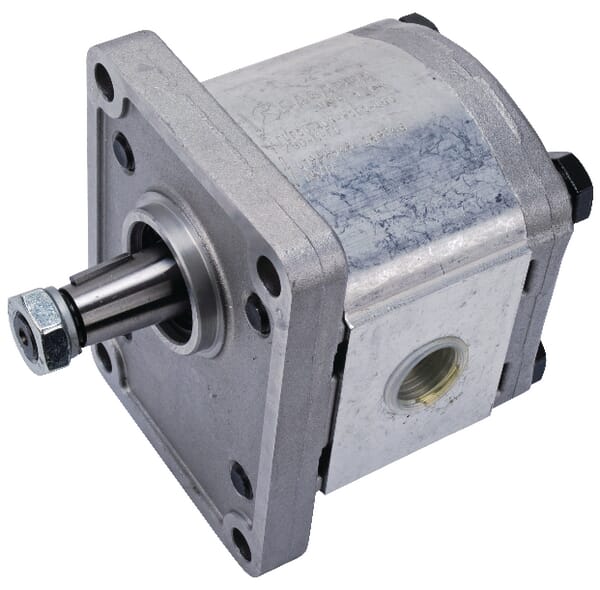

BPA000340349
Casappa Pump PLP20.4 D0-82E2-LGD/GD-N- PLP204D082E2G
£324.03 excl.
£388.84 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

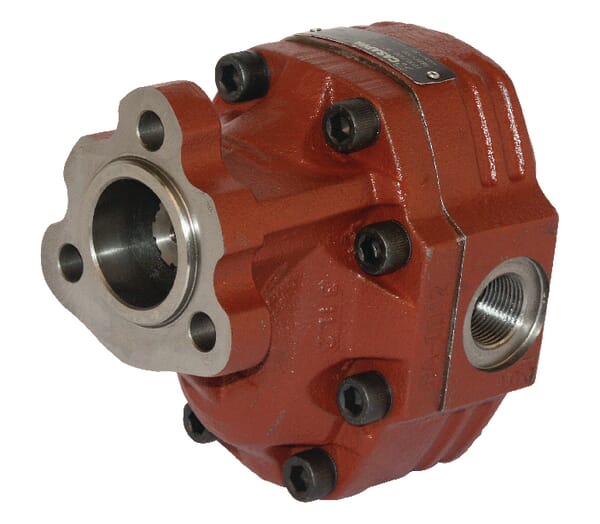

BPA000279329
Casappa Pump FP30.43SO-19T1-LGE/GE-N FP3043S
£718.20 excl.
£861.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340332
Casappa Pump PLP20.25S0-54B5-LBE/BC-N PLP2025S054B5
£369.47 excl.
£443.36 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

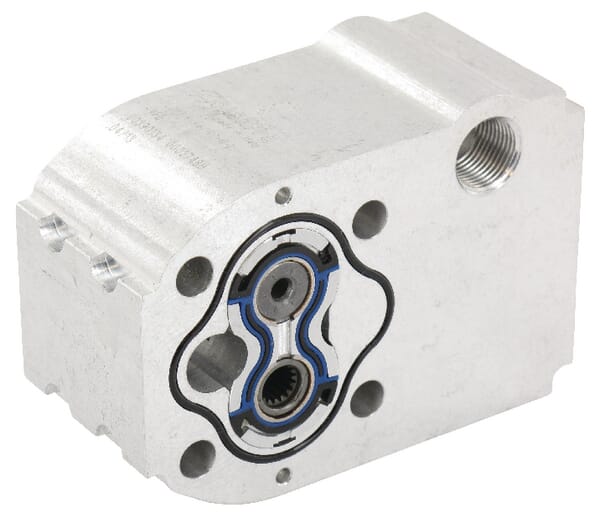

BPA000340037
