£572.10
excl. VAT
£686.52 incl. VAT
£686.52
incl. VAT
£572.10 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile applications, Industrial applications |
|---|---|
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 43.98 cm³/rev |
| Flange and back cover material | Aluminium |
| Flange code | U3 |
| Flange type norm | SAE-B |
| Housing material | Aluminium |
| Main port thread diameter | 1 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 230 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 260 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

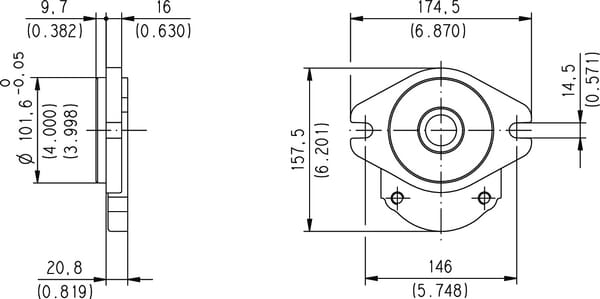

| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft number of teeth | 9 |
| Shaft type | Splined 9T |
| Shaft type code | 83 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9805 g |
| Dimensions | 210 × 185 × 122 mm |
| Dangerous goods | No |
You might also like
BPA000340600
Casappa Tie bolts polaris 20 M10x160 PLP920M10160
£17.41 excl.
£20.89 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340269
Casappa Pump PLP20.16D0-12B2-LBE/BC-N-EL FS PLP2016D012B2
£340.66 excl.
£408.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340663
Casappa Tie bolts polaris 30 M12x245 PLP930M12245
£39.07 excl.
£46.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301296
Casappa Seal kit KAPPA 30-83E3 KP93083E3
£23.75 excl.
£28.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000340477

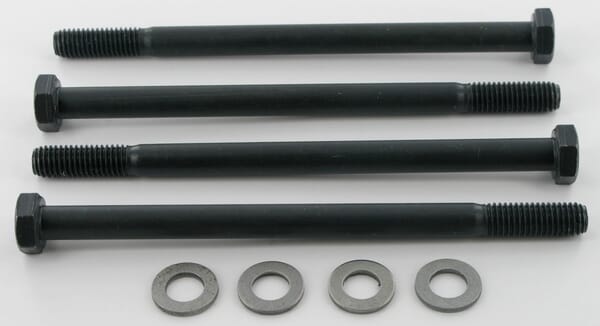

Casappa Tie bolts Polaris 10 M8x125 PLP910M8125
