£286.12
excl. VAT
£343.34 incl. VAT
£343.34
incl. VAT
£286.12 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 11.23 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DIIB |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3500 r/min |
| Min rotation speed | 600 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 35 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1454 g |
| Dimensions | 127 × 134 × 73 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340459

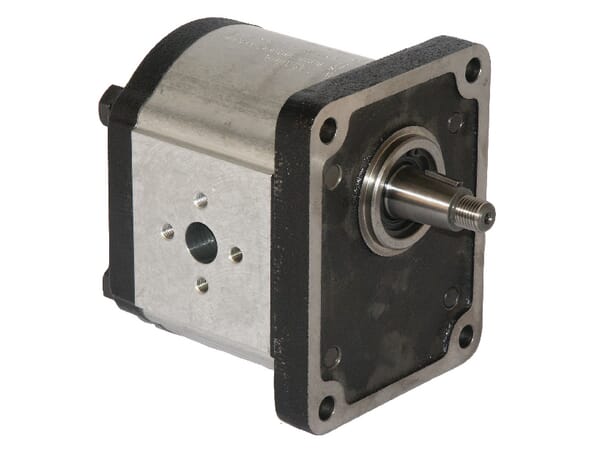

Casappa Pump PLP30.73S0-83E3-LEF/ED-N PLP3073S083E3
£664.41 excl.
£797.29 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340204

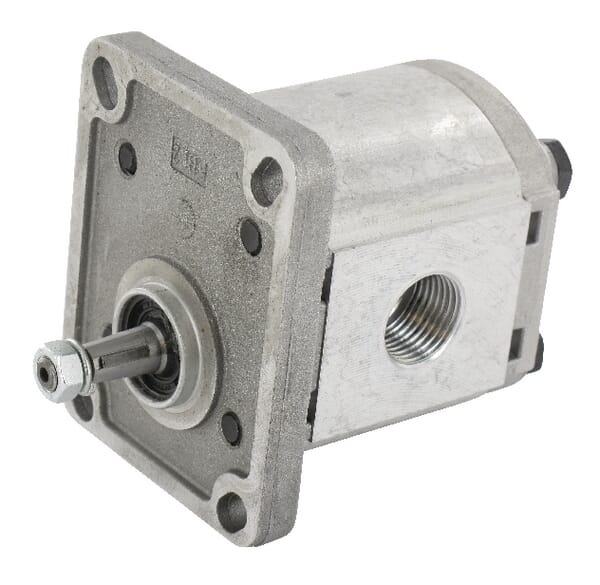

Casappa Gear Pump PLP10.6-S0-81-E1LGD/GD-N-EL PLP106S081EIGD
£250.05 excl.
£300.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340407

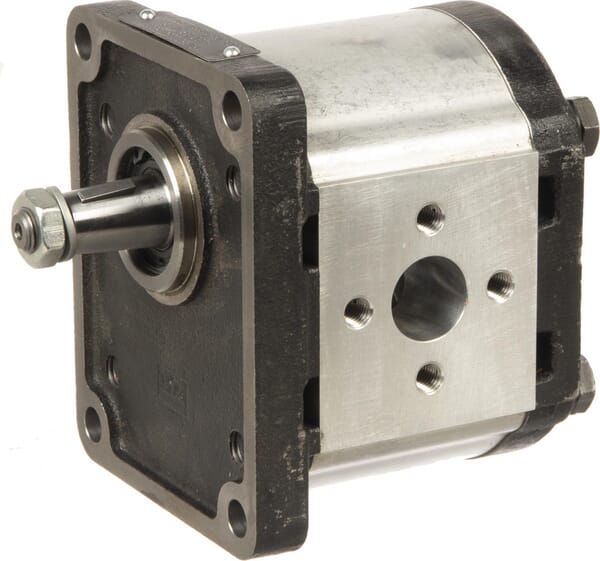

Casappa Pump PLP30.22S0-83E3-LED/EB-N-FS PLP3022S083E3
£583.77 excl.
£700.52 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340304

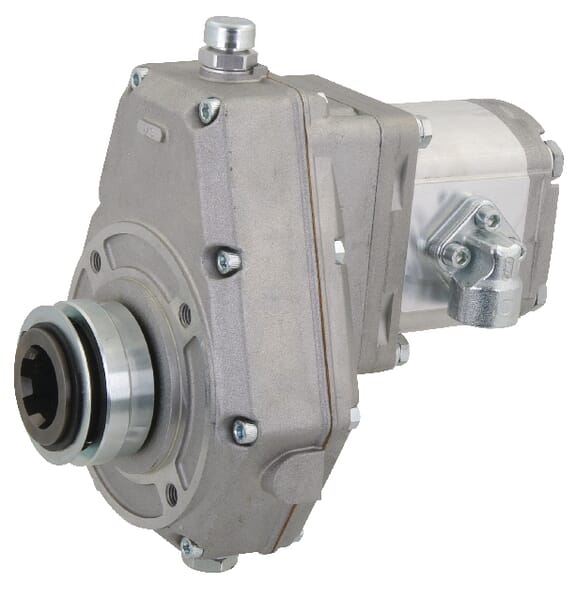

Casappa Gearbox with pump group 2 20cc PLP2020GBF20S3KIT
£528.82 excl.
£634.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340265

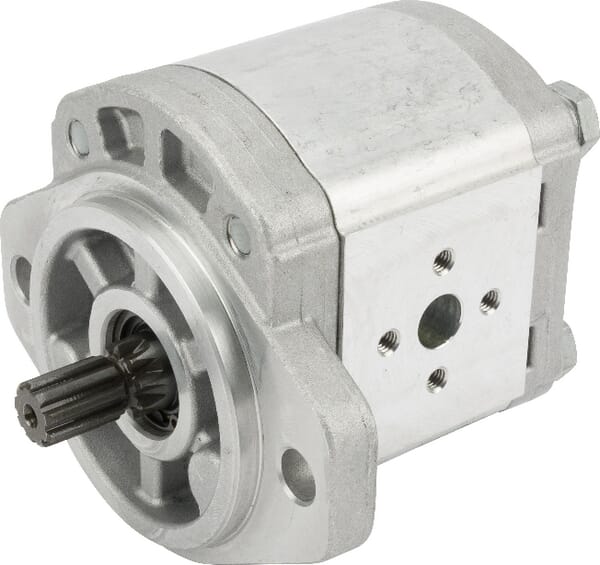

Casappa Pump PLP20.16D0-03S1-LBE/BC-N-EL PLP2016D003S1LBEBC
£244.06 excl.
£292.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340211

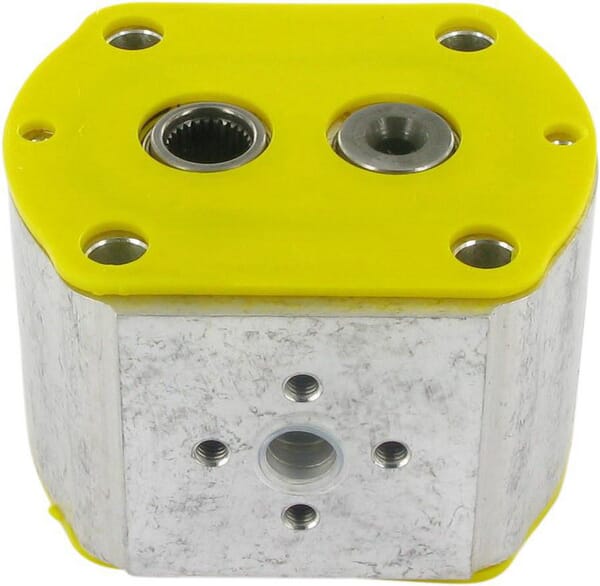

Casappa Tandem Pump PLP20.11,2D0-86-S6-LEA/EA-N-I-FS PLP20112DII
