£1,133.09
excl. VAT
£1,359.71 incl. VAT
£1,359.71
incl. VAT
£1,133.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

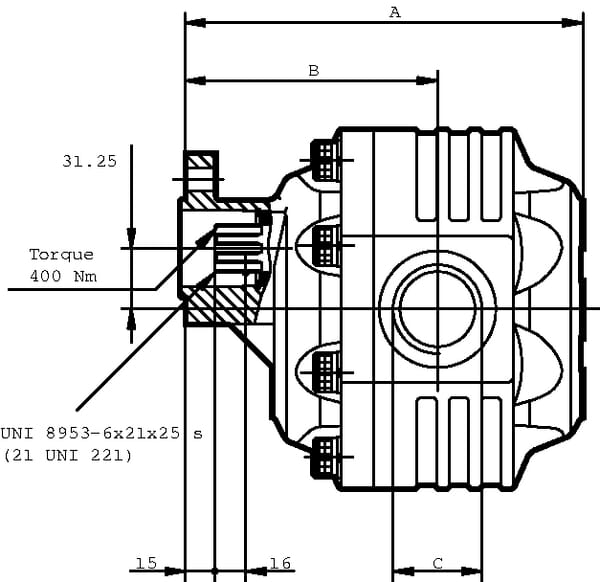

| AHousing length | 187.5 mm |
|---|---|
| BConnection port to flange distance | 119.5 mm |
| Benefits | Wide range of applications, Compact design |
| CMain port thread diameter | 3/4 Inch |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 61.43 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing material | Cast iron |
| Long description | Formula 40 |
| Main port thread type | G |
| Max. continous working pressure | 290 BAR |
| Max intermittend working pressure | 315 BAR |
| Max pressure peak | 325 BAR |
| Max rotation speed | 2700 r/min |

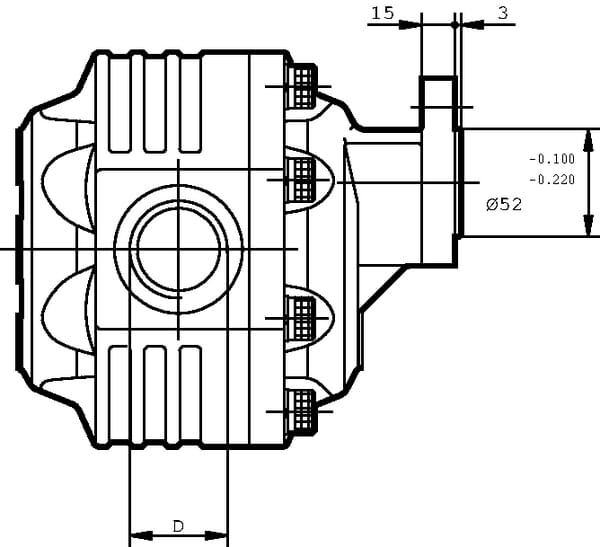

| Mounting diameter | 52 mm |

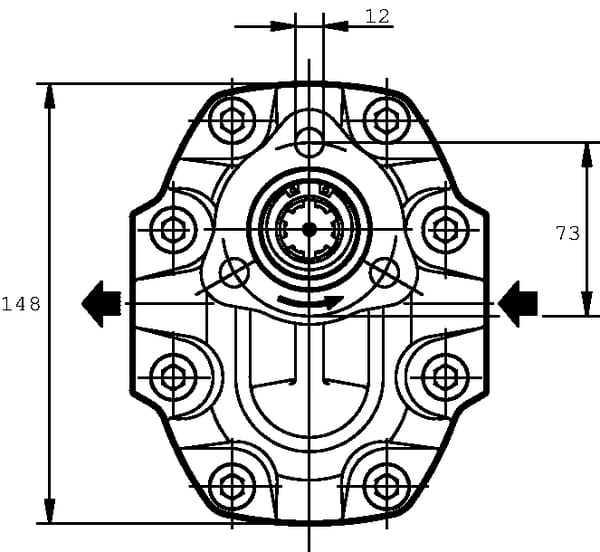

| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 4 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17424 g |
| Dimensions | 208 × 196 × 194 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340440
Casappa Pump PLP30.43S0-83U3-LGF/GE-N PLP3043S083E3U3
£572.10 excl.
£686.52 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301260

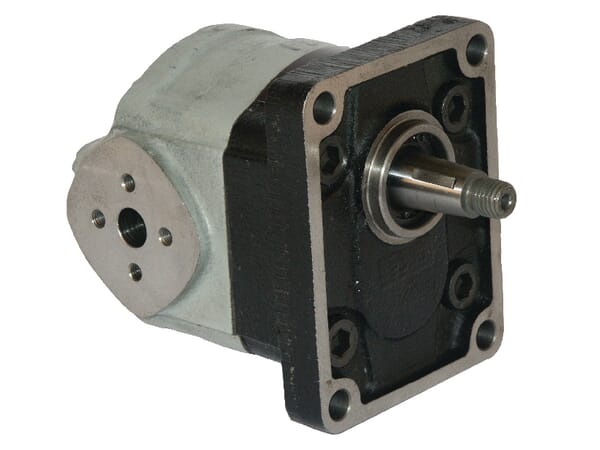

Casappa Pump KP 20. 4 DO-82-E2-LEB/EA KP204D082E2
£372.05 excl.
£446.46 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000340515

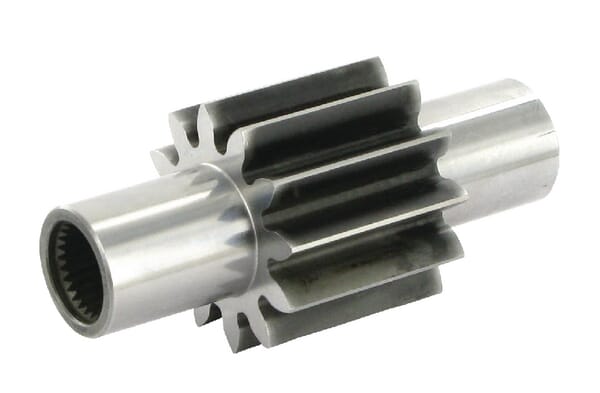

Casappa Drive shaft pump 20cc DII/DIIB PLP92020IIIFSAS
