£1,262.47
excl. VAT
£1,514.96 incl. VAT
£1,514.96
incl. VAT
£1,262.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

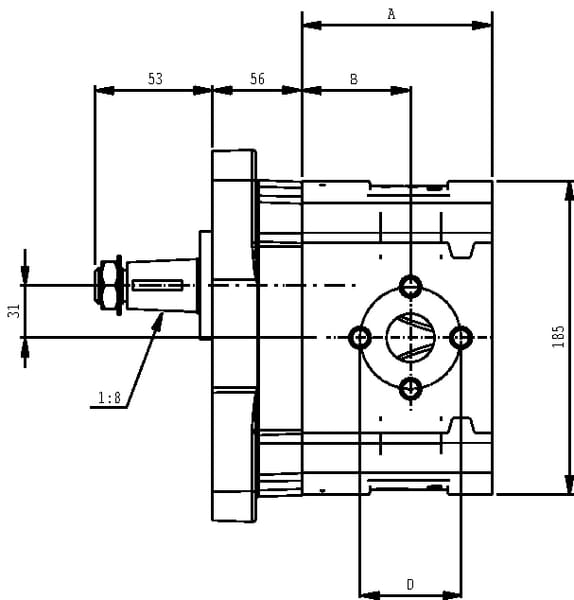

| AHousing length | 163 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 113 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

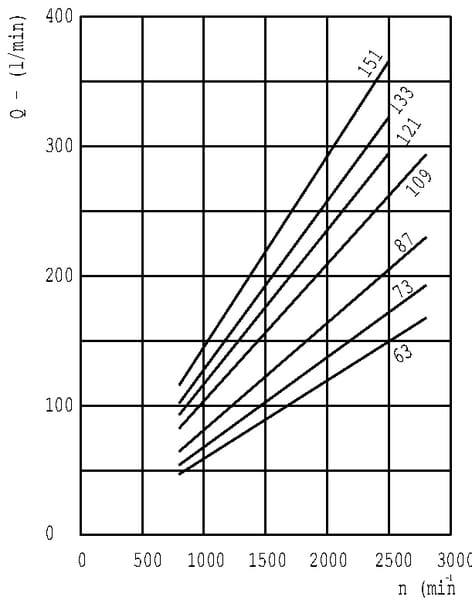

| Displacement | 72.6 cm³/rev |

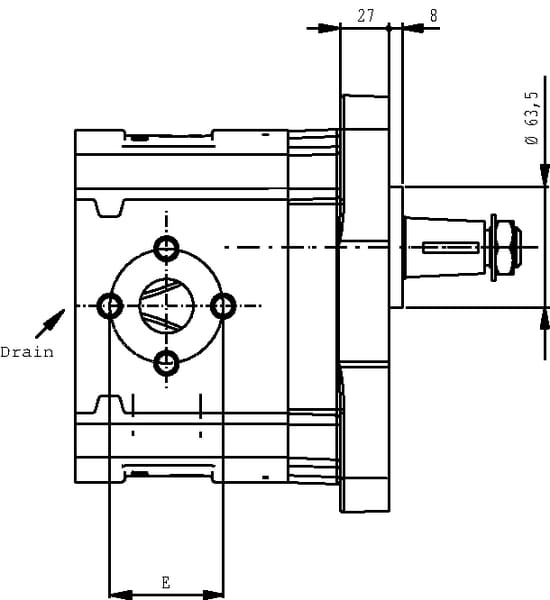

| DSuction port bolts circle diameter | 72 mm |
| EPressure port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E5 |
| Flange type norm | European |
| Housing material | Steel |
| Max. continous working pressure | 240 BAR |
| Max intermittend working pressure | 260 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 2800 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 63.5 mm |

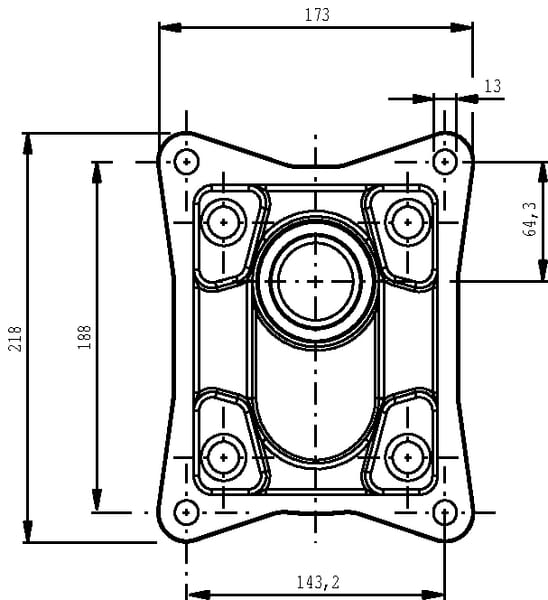

| Mounting holes horizontal distance | 143.2 mm |
| Mounting holes vertical distance | 188 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 4 |

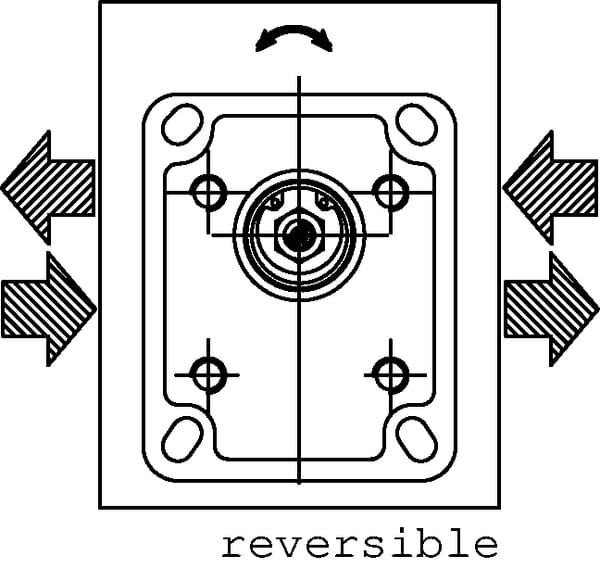

| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 32.55 mm |
| Shaft thread diameter | M22 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 85 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30620 g |
| Dimensions | 215 × 200 × 250 mm |
| Dangerous goods | No |
You might also like
BPA000340139
Casappa Shaft Seal 18x30 high pressure PLM92020
£55.45 excl.
£66.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340513
Casappa Drive shaft 20 cc 07/FS PLP9202007FS
£172.35 excl.
£206.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340310

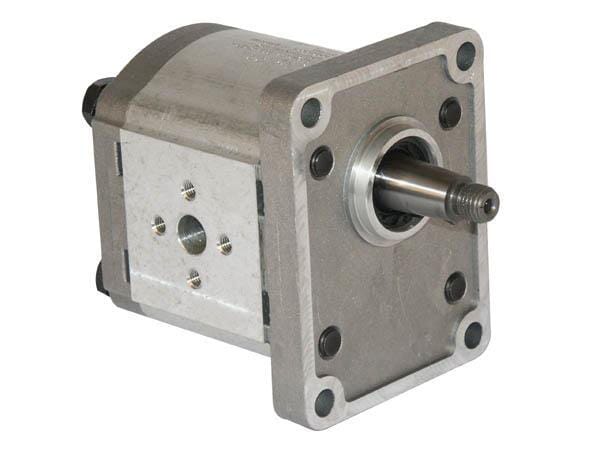

Casappa Pump PLP20.20S0-82E2-LEB/EA-N- PLP2020S082E2
