£613.47
excl. VAT
£736.16 incl. VAT
£736.16
incl. VAT
£613.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 61.26 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 190 BAR |
| Max intermittend working pressure | 210 BAR |
| Max pressure peak | 220 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 51 mm |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4912 g |
| Dimensions | 150 × 120 × 115 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340110

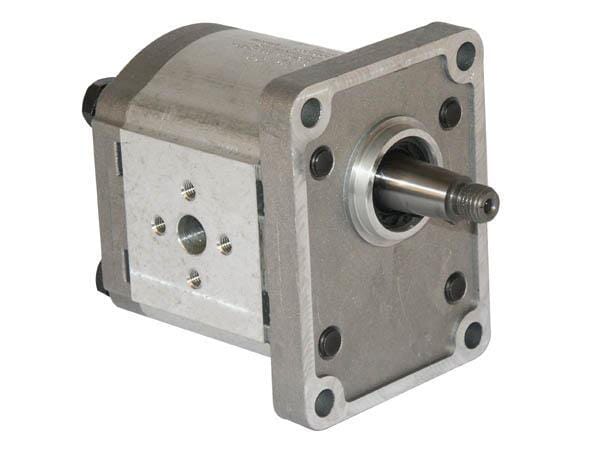

Casappa Gearmotor PLM 20.6 R0-82E2-LEA/EA-N-EL-D-V8-CRS PLM206R82EV8
£507.14 excl.
£608.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340130
Casappa Motor PLM30.61R0-84E4-LED/EF-N PLM3061R84E4
£922.47 excl.
£1,106.96 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340112
Casappa Motor PLM20.8RO-50E2-LEA/EA-N PLM208R050E2
£479.69 excl.
£575.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340599

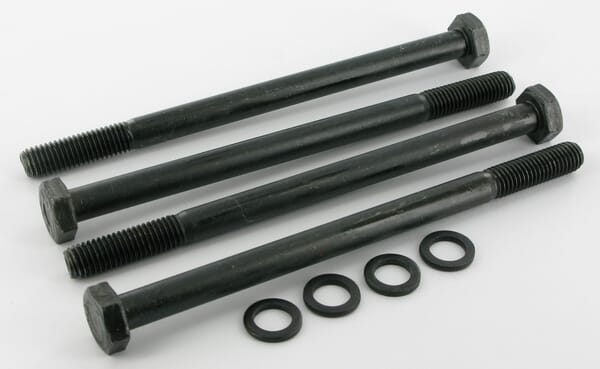

Casappa Tie bolts Polaris 20 M10x155 PLP920M10155
£17.47 excl.
£20.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000301038

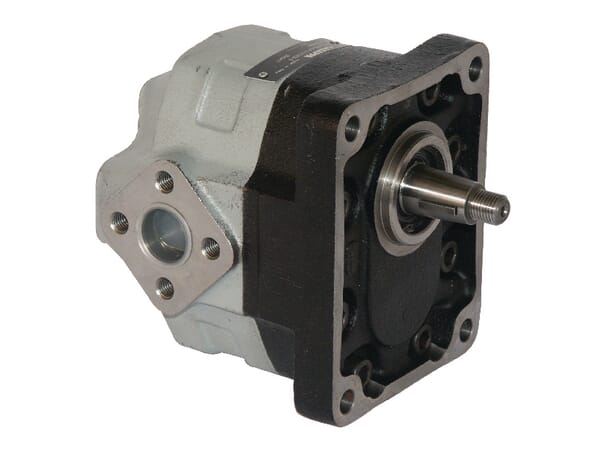

Casappa Motor KM 30.73 RO-83E3-LEF/ED KM3073R83E3
