£62.01
excl. VAT
£74.41 incl. VAT
£74.41
incl. VAT
£62.01 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

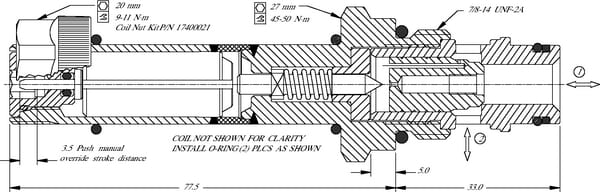

A Danfoss SVP10-NO-00-B-00 normally open 2/2 directional cartridge valve supplied as a single unit. The valve is a pre-actuated solenoid cartridge designed for cavity SDC10-2. In the de-energised (idle) state, there is free flow from port 2 to port 1 and limited flow from port 1 to port 2. When electrically operated, the valve reverses: port 2 to port 1 is closed and port 1 to port 2 allows free flow. The valve seat maintains a maximum leakage of 6 drops per minute. Maximum flow rate is 80 l/min at a maximum working pressure of 230 bar. The cartridge includes manual push-pin operation for manual control and is available in 12 V DC or 24 V DC electrical configurations. The unit weighs 200 g with overall dimensions of 50 mm length, 50 mm width, and 30 mm height.
Product details
| Cavity | SDC10-2 |
|---|---|

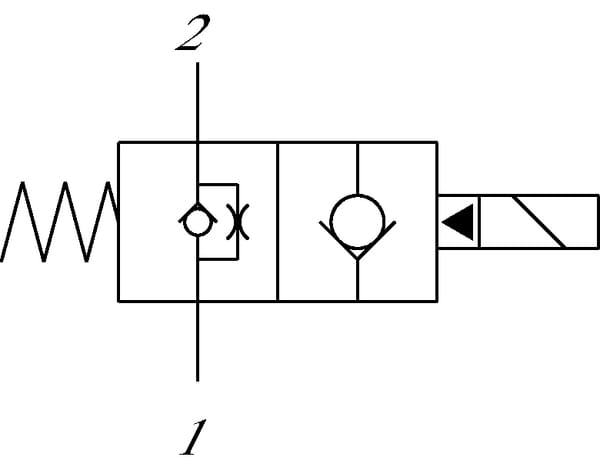

| Long description | This is a normally open, pre-actuated solenoid valve. In a de-energised state, there is free flow from port 2 to 1, and severe restriction from port 1 to port 2. When operated, 2 to 1 is closed and there is free flow from 1 to 2. This type comes standard with a manual push-pin operation. |

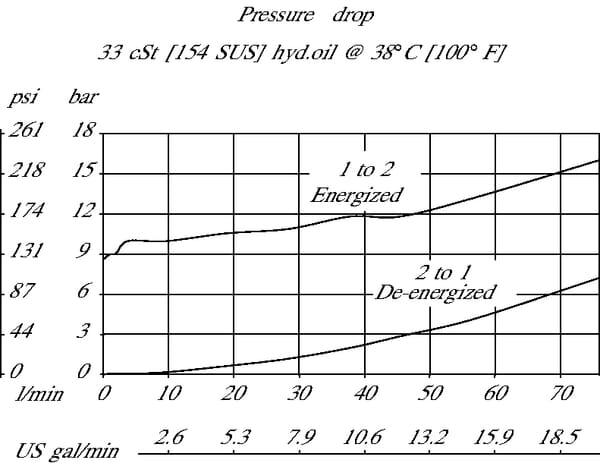

| Max. flow rate | 80 l/min |
| Max working pressure | 230 BAR |
| Normally open or closed | Open |
| Product details | Normally open cartridge, Electrically powered check valve, Pre-actuated cartridge, Valve seat with max. leakage of 6 drops/min, Manual pin operation, Idle: free flow from 2 to 1, Idle: limited flow from 1 to 2, Operated: free flow from 1 to 2, Operated: closed from 2 to 1 |
| Unit | Each |
| Voltage (DC) | 12 V, 24 V |
| With emergency function | No |
Compatible accessories
Parts and components that work with this product.
SD9M1624D26WDN

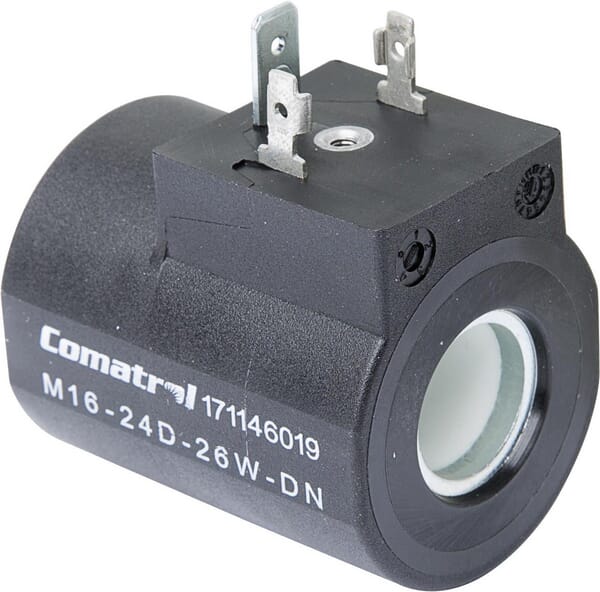

Danfoss Coil M16, 24V DC, 26W DN SD9M1624D26WDN
£24.03 excl.
£28.84 incl.
SD9M1612D26WDN
Danfoss Coil M16, 12V DC, 26W DN SD9M1612D26WDN
£30.89 excl.
£37.07 incl.
SP666
Omal Hirschmann Connector Plug SP666
£1.97 excl.
£2.36 incl.
SD9M16230A26WDN

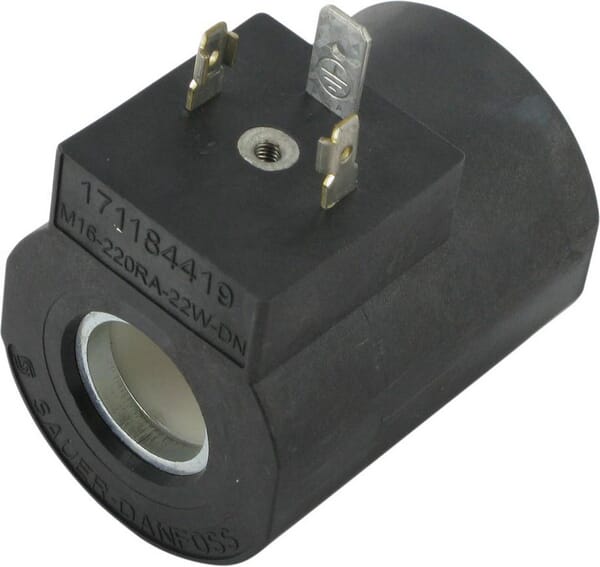

Danfoss Coil 230V RAC, M16, 22W DN (use with SP999 rectifier plug) SD9M16230A26WDN
£34.34 excl.
£41.21 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 200 g |
| Dimensions | 50 × 50 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000384600

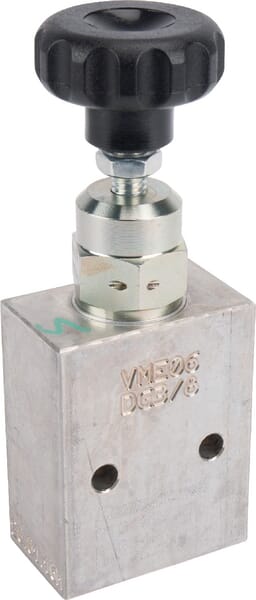

Danfoss Pressure relieve valve VME 06-M-2-DG-34 VME06M2DG38
£86.08 excl.
£103.30 incl.
In stock
Expected to ship on Friday 18 September
BPA000341908
Danfoss Piston 65 L/M 157B7163 PC/LS PVG32157B7163
£64.07 excl.
£76.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000354298
Danfoss Steering sensor adapter SAK150Z6000
£86.35 excl.
£103.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341803

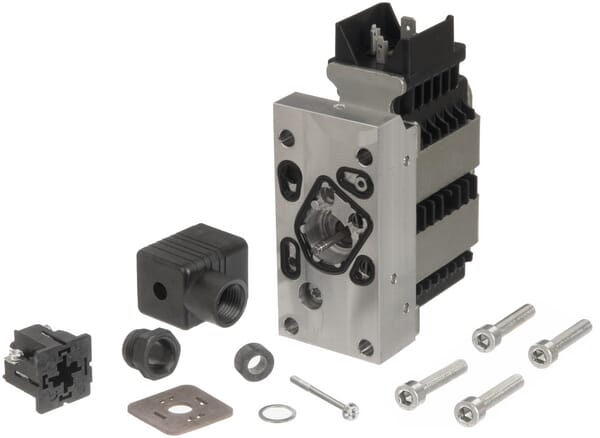

Danfoss Magnet PVEH 11-32V passive DIN 1x4 PVG3211166824
£700.95 excl.
£841.14 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000239893
Danfoss Counter balance 1X CB10HV2B1E2 A08 CB10HV2B1E2002
£149.29 excl.
£179.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000043666

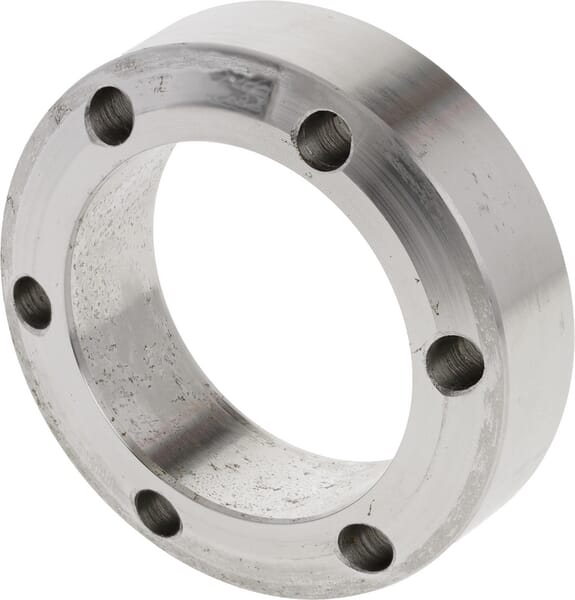

Danfoss Ring 135493
