Product details
| Connector type | SB25 +6pin Deutsch |
|---|---|
| Lever positioning function | Spring return |
| Long description | The JS1 heavy duty joysticks (JS1-H) and associated handles meet the needs of the demanding conditions typically found in mobile installations. The available handles offer a high degree of protection against chemicals, shock, vibrations and EMC exposure. Danfoss joysticks are suitable for both inside and outside the cab and feature ergonomic shapes that minimise operator fatigue. |
| Master model code | JS1H-XY-PSH-S-NNN-TPR2-L-P1A-NNN-Y1A-Y1A-NNN-NNN-NNN-NNN-NNN-NNN-NNN-NNN-BRTN-NN |
| Neutral position switch | n/a |
| Number of actuation directions | 4 |
| Number of proportional functions | 6 |
| Number of push buttons | 2 |
| Number of rocker switches | 0 |
| Number of Rollers | 1 |
| Output signal type | Analogue |
| Product details | Supply voltages: U (DC) 9-36 VDC, Current consumption PVE : max. 150mA, Current consumption base : max. 120mA, Current consumption neutral position switch : max 3A, voltage: U(S) 0,25-0,75 from U (DC), Enclosure: Below flange IP21, standard IP65, with roller IP40, Max. direction switch load for all prop. Functions: 30 V (DC) 2 mA, J1939 and CANopen protocols |
| Pros | The leathery grained surface allows the palm to breathe, Professional joystick for intensive use, Hall effect with two sensors per axis or position detection with long-life potentiometer, Ergonomic handle design |
| Rated max. operation current | 150 mA |
| Unit | Each |
| Version | Lefthand, Left hand |
| Voltage range | 9-36 V |
| Voltage type | DC |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1165 g |
| Dimensions | 380 × 185 × 105 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333742

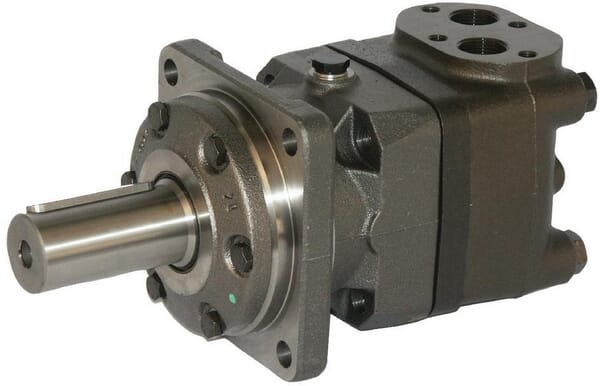

Danfoss Orbit motor Shaft diameter 40 standard OMT13011011023
£1,095.05 excl.
£1,314.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000341620

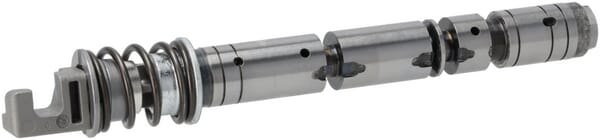

Danfoss Spool 10L PVE Closed neutral PVG1611266923
£43.53 excl.
£52.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000342090
Danfoss Joystick PVRES 155B4211 2x prop, center lock PVRES155B4211
£679.42 excl.
£815.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342073

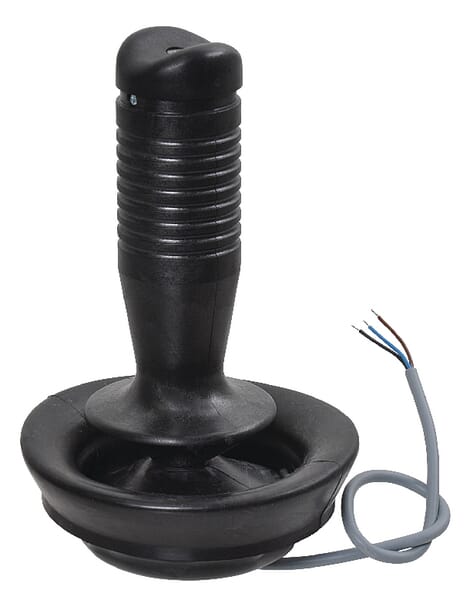

Danfoss Dust cover PVRE 155B2414 PVRE155B2414
£35.94 excl.
£43.13 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341564

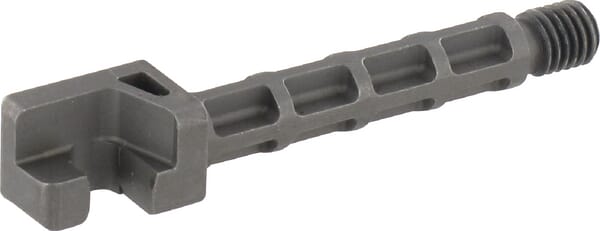

Danfoss PVM piston rod manual op. PVG12011033896
£35.96 excl.
£43.15 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000320633

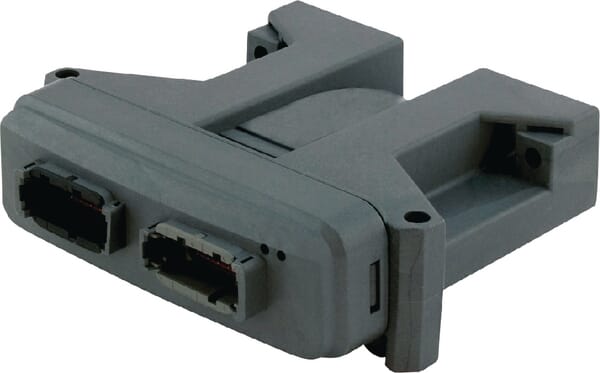

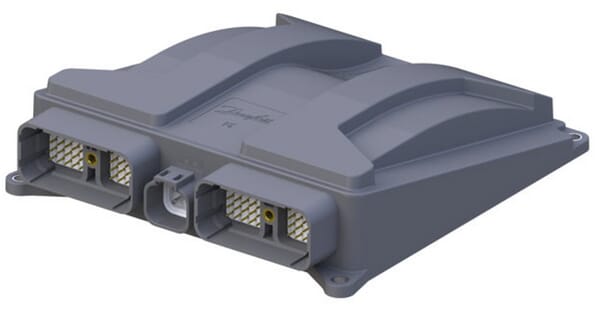

Danfoss Controller, ECU I8 O8(24A) 1-K---- MC024122
£840.62 excl.
£1,008.74 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000284276
Feuer-Vogel Storz clamp ring 110mm (for 2.8 - 3.2mm wall thickness) HD218127
£97.12 excl.
£116.54 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000240051

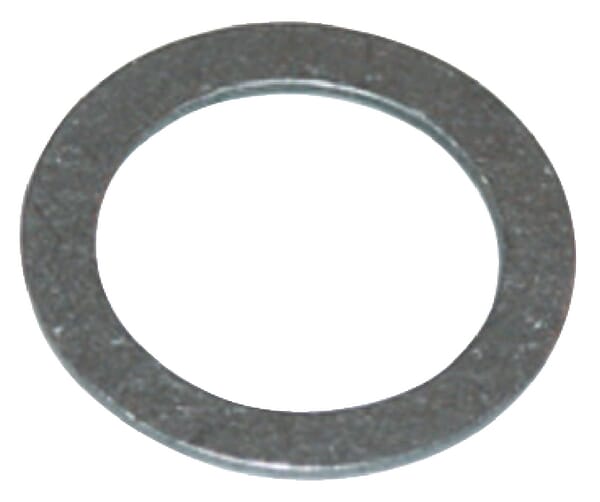

Unbranded Shim diameter 26x50x1.5mm steel CBS255015
£1.32 excl.
£1.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000328529
Kramp O-ring 37.77x2.62mm 75 shore Viton OR3777262VP001
£2.02 excl.
£2.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000384608
Walvoil Pressure relief valve 06 TV S VMPBL05001
£38.93 excl.
£46.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000297928

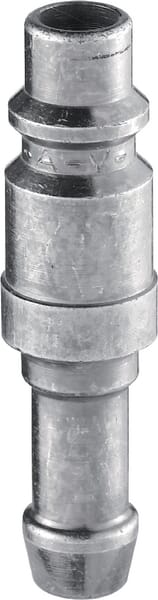

Prevost Male connector with 13mm hosetail IRP066813P002
