£995.64
excl. VAT
£1,194.77 incl. VAT
£1,194.77
incl. VAT
£995.64 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Connector type | SB25 +6pin Deutsch |
|---|---|
| Lever positioning function | Spring return |
| Long description | The JS1 heavy duty joysticks (JS1-H) and associated handles meet the needs of the demanding conditions typically found in mobile installations. The available handles offer a high degree of protection against chemicals, shock, vibrations and EMC exposure. Danfoss joysticks are suitable for both inside and outside the cab and feature ergonomic shapes that minimise operator fatigue. |
| Master model code | JS1H-XY-PSH-S-NNN-TPR2-R-Y1A-Y1A-Y1A-Y1A-NNN-NNN-NNN-NNN-NNN-NNN-NNN-NNN-BRTN-NN |
| Neutral position switch | n/a |
| Number of actuation directions | 4 |
| Number of proportional functions | 4 |
| Number of push buttons | 4 |
| Number of rocker switches | 0 |
| Number of Rollers | 0 |
| Output signal type | Analogue |
| Product details | Supply voltages: U (DC) 9-36 VDC, Current consumption PVE : max. 150mA, Current consumption base : max. 120mA, Current consumption neutral position switch : max 3A, voltage: U(S) 0,25-0,75 from U (DC), Enclosure: Below flange IP21, standard IP65, with roller IP40, Max. direction switch load for all prop. Functions: 30 V (DC) 2 mA, J1939 and CANopen protocols |
| Pros | The leathery grained surface allows the palm to breathe, Professional joystick for intensive use, Hall effect with two sensors per axis or position detection with long-life potentiometer, Ergonomic handle design |
| Rated max. operation current | 150 mA |
| Unit | Each |
| Version | Righthand, Right hand |
| Voltage range | 9-36 V |
| Voltage type | DC |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1428 g |
| Dimensions | 390 × 190 × 135 mm |
| Dangerous goods | No |
You might also like

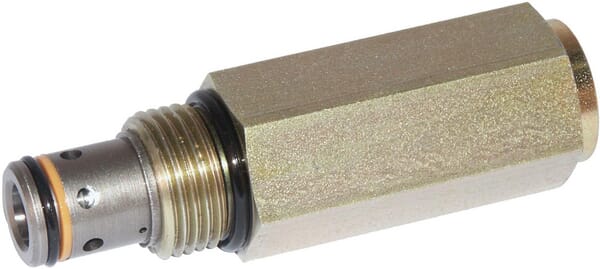

BPA000245839
Danfoss Pressure relief valve, cartridge CP2101B0ED
£73.13 excl.
£87.76 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

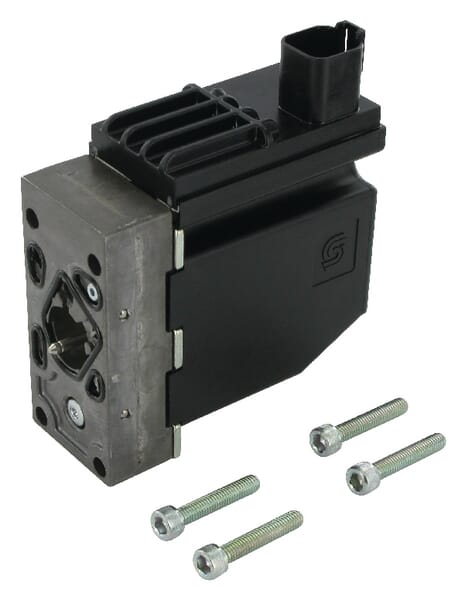

BPA000341835
Danfoss Magnet PVEP PWM 10-32V Passiv-S7-1X6DEU PVG3211314593
£743.65 excl.
£892.38 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000398247
Danfoss Orbital motor 130 cc Danfoss Xcel XL2 XL2130629AG00717A
£359.65 excl.
£431.58 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000398270
Danfoss Orbital motor 245 cc Danfoss Xcel XLH XLH2450160550
£171.64 excl.
£205.97 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000246407
Danfoss Proportional pressure relievingprop 3/8 12vDC CP55820B3B15012
£426.35 excl.
£511.62 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

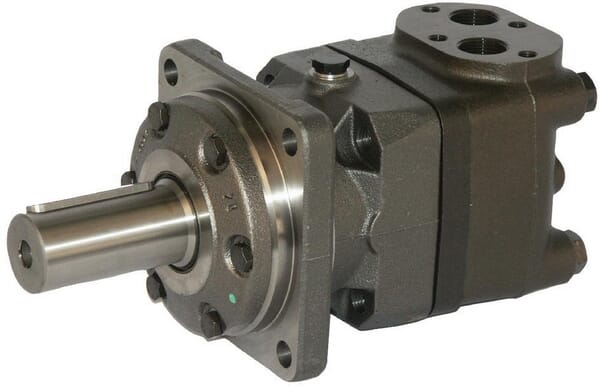

BPA000333746
