£808.88
excl. VAT
£970.66 incl. VAT
£970.66
incl. VAT
£808.88 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Tipping cylinder for vans, Small to medium-sized trailers |
| Benefits | High efficiency, Save time during assembly, Excellent running properties |
| Cylinder material | Steel MW450U/E470 |
| Details | Light, modern design, Completely assembled unit, Tenifer TF1 coated plungers |
| Long description | Telescopic Cylinder series K " Kompakt" |
| Max. capacity at 180 bar | 6 t |
| Max. working pressure | 200 BAR |
| Max. working temperature | 110 °C |

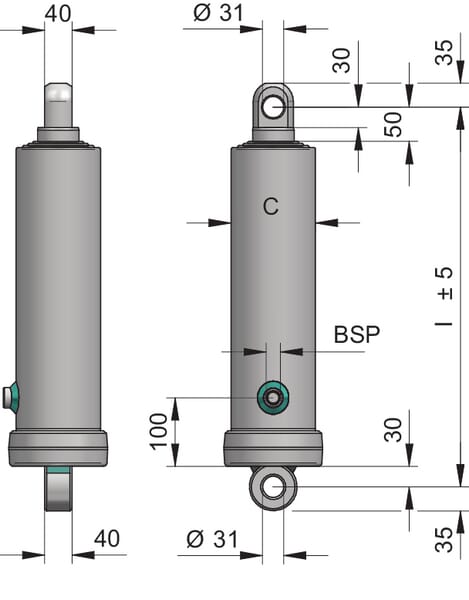

| Min. length | 450 mm |
| Min. mounting holes distance | 560 mm |
| Min. working temperature | -40 °C |
| Mounting type - cylinder side connection | Bore |
| Mounting type - rod side connection | Bore |
| Number of stages | 3 |
| Oil capacity | 8 l |
| Outside diameter | 124 mm |
| Piston surface roughness range | 0.20-0.20 µm |
| Properties | High durability and long service life |
| Sealing material | Polyurethane |
| Stroke | 1130 mm |
| Unit | Each |
| Weight | 41 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 33000 g |
| Dimensions | 630 × 150 × 150 mm |
| Dangerous goods | No |
