£482.14
excl. VAT
£578.57 incl. VAT
£578.57
incl. VAT
£482.14 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| LMin. length | 615 mm |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. piston speed | 0.5 m/s |

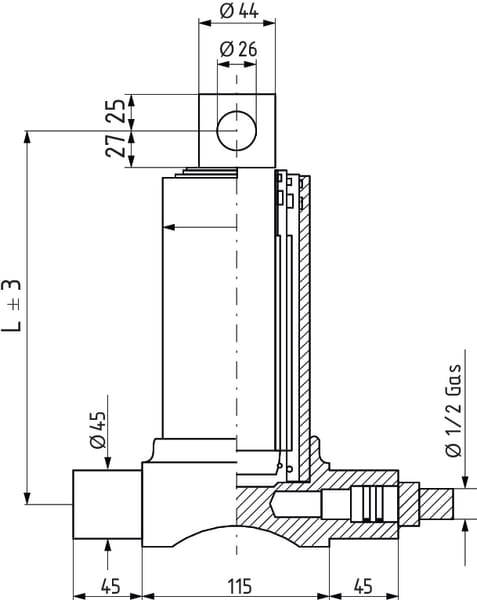

| Min. mounting holes distance | 115 mm |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting hole diameter - rod connection | 26 mm |
| Mounting thread diameter - cylinder connection | 1/2 Inch |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 3 |
| Oil capacity | 4.7 l |
| Oil connection thread type | Inch |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stage 3 diameter | 71 mm |
| Stroke | 1490 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 28.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 28400 g |
| Dimensions | 630 × 205 × 205 mm |
| Dangerous goods | No |
