£728.39
excl. VAT
£874.07 incl. VAT
£874.07
incl. VAT
£728.39 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

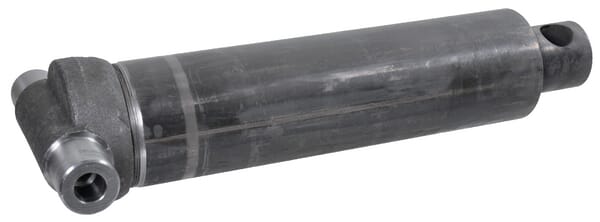

Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. capacity - stage 3 | 11.7 t |
| Max. capacity - stage 4 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Min. length | 627 mm |
| Min. mounting holes distance | 150 mm |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting hole diameter - rod connection | 31 mm |
| Mounting thread diameter - cylinder connection | 1/2 Inch |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 4 |
| Oil capacity | 11 l |
| Oil connection thread type | Inch |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stage 3 diameter | 91 mm |
| Stage 4 diameter | 107 mm |
| Stroke | 1990 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 25 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 49500 g |
| Dimensions | 680 × 250 × 150 mm |
| Dangerous goods | No |
