£644.18
excl. VAT
£773.02 incl. VAT
£773.02
incl. VAT
£644.18 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

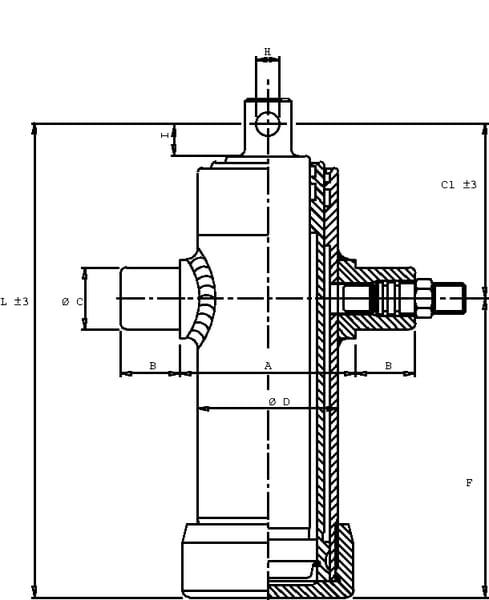

| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 115 mm |
| CSide shaft diameter | 40 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 124 mm |
| HMounting hole diameter - rod connection | 36 mm |
| IMounting bush outside diameter | 35 mm |
| LMin. length | 580 mm |
| Long description | Telescopic cylinders 2-stage F |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 465 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 2 |
| Oil capacity | 6.8 l |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 88 mm |
| Stage 2 diameter | 107 mm |
| Stroke | 895 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 36.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 36500 g |
| Dimensions | 610 × 230 × 150 mm |
| Dangerous goods | No |
